Main panel

MAIN PANEL

GENERAL DESCRIPTION

The main panel provides all the indications and information concerning the conditions of the vehicle which are indispensable for safe driving.

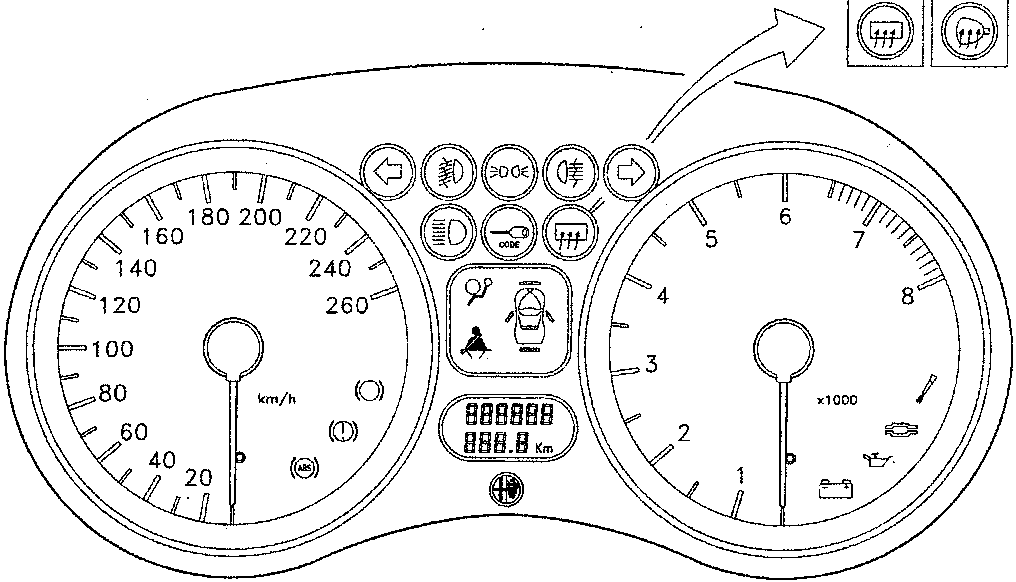

The cluster is of the analogue type with two generously- sized indicators for the speedometer and rev counter and a series of plainly visible warning lights which complete the information given to the driver.

• LH direction indicator
• fog lamps
• side lights
• rear fog guard
• RH direction indicator
• high beams
• electronic key system
• rearscreen and door mirror defrosting (GTV)
• door mirror defrosting (Spider)
• Air Bag system fault
• seat belts
• doors
• ABS system failure
• handbrake and brake fluid level, EBD system failure (*)
• brake pad wear
• generator
• minimum oil pressure
• catalyst temperature (only for certain markets)
• injection fault (Check Engine)

(* ) Present from '97 version
