Removal/refitting rear speakers (gtv)

REMOVAL/REFITTING REAR SPEAKERS (GTV)

• Disconnect the battery.

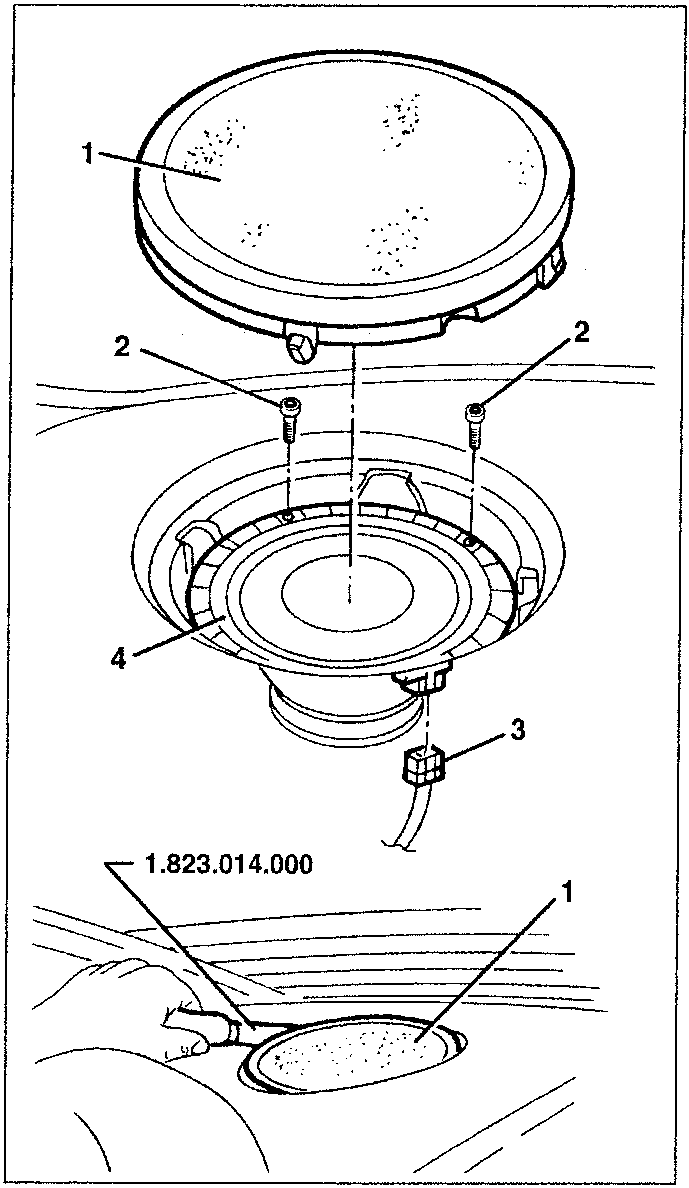

1. Using tool 1.823.014.000 prise the speaker cover.
2. Slacken the four screws and raise the speaker.
3. Disconnect the electrical connection.
4. Retrieve the speaker.

5. Slacken the screw fastening the earth braid.
6. Release the earth braid from the clamps.

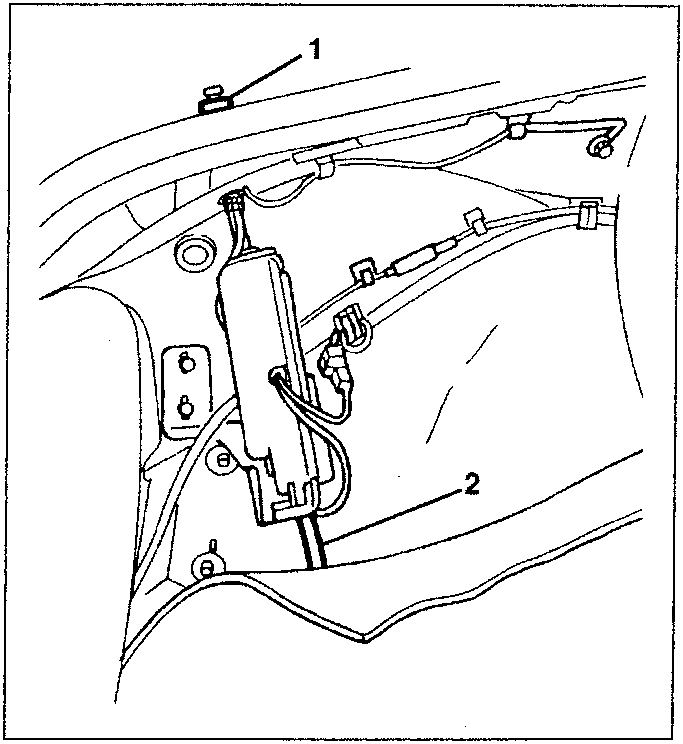

7. Slacken the screws, lower and retrieve the aerial unit
8. Retrieve the seal.

Refit reversing the sequence described for removal and adhering to the following instructions:

1. Lubricate the aerial and seal coupling area with vaseline.
2. Insert the water drain tube in the hole.

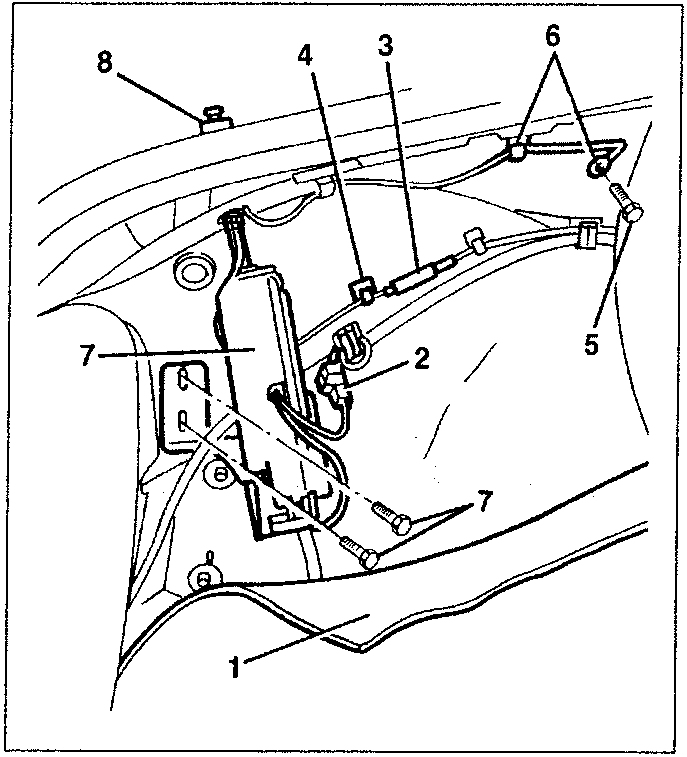

ELECTRIC AERIAL REMOVAL/REFITTING

• Disconnect the battery, with the aerial down.

1. Move aside the left-hand luggage compartment trim.
2. Disconnect the electrical connection of the aerial motor.
3. Disconnect the connection of the coaxial cable.
4. Release the coaxial cable from the clamp.
