SPEAKERS

REMOVAL/REFITTING FRONT SPEAKERS

  1. Prise and remove the speaker cover.
  2. Slacken the 4 screws.
  3. Remove the speaker.
  4. Disconnect the electrical connection and retrieve the speaker.

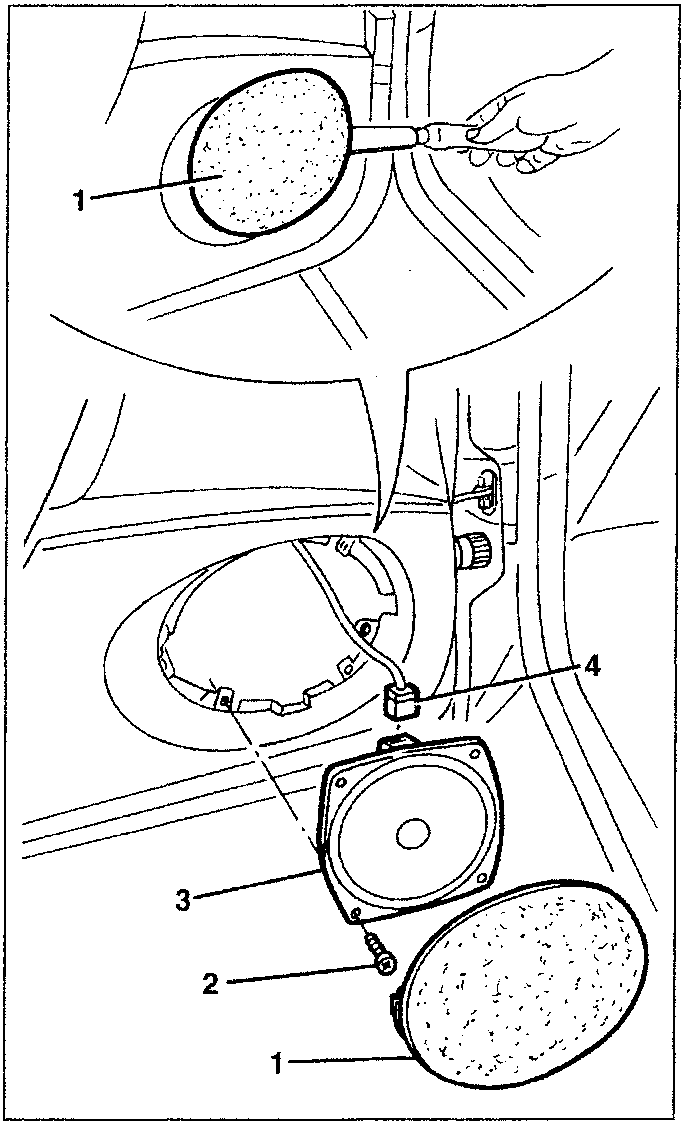

Diagram showing speaker removal: 1. Speaker cover, 2. Speaker grille, 3. Speaker unit, 4. Electrical connector.

Refit the speaker reversing the sequence described for removal.

REMOVAL/REFITTING FRONT TWEETERS

  • Remove the door panel (see specific paragraph).
  1. Rotate and remove the complete speaker.

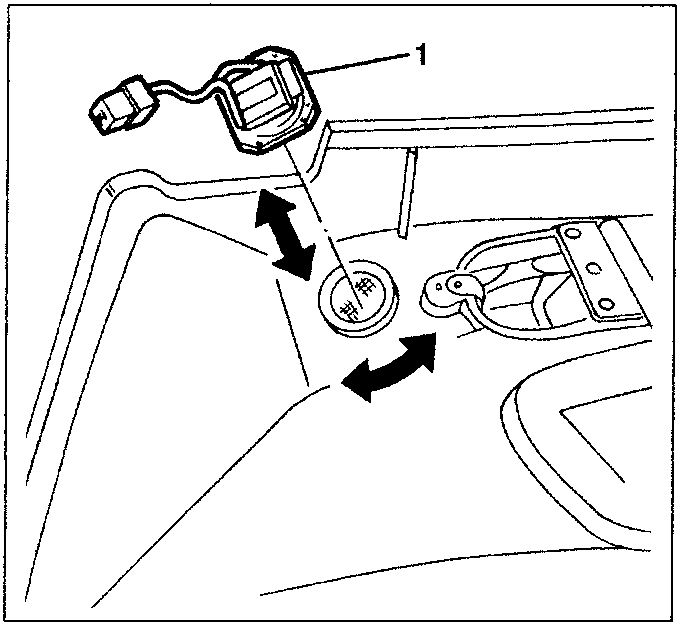

Diagram showing tweeter removal: 1. Tweeter unit.

Refit the speaker reversing the sequence described for removal.

REMOVAL/REFITTING REAR "SUBWOOFER" (Spider)

  1. Prise and remove the speaker cover.
  2. Slacken the four fastening screws.
  3. Remove the speaker just enough to disconnect the electrical connections, then remove it completely.
Diagram showing subwoofer removal: 1. Speaker grille, 2. Fastening screw, 3. Subwoofer unit.
