Cigar lighter (page 2 of 2)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Various devices

55 Electric systemCigar lighter · page 2 of 2

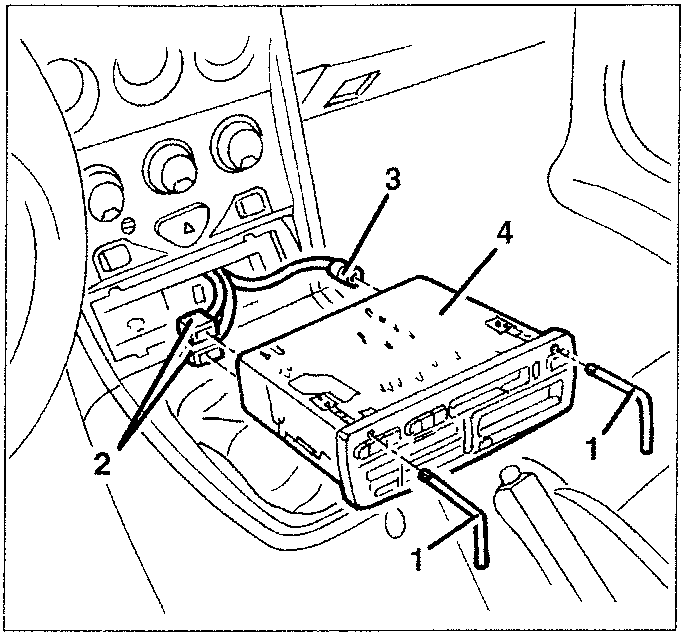

1. Remove the sound system pins.
2. Disconnect the electrical connections.
3. Disconnect the aerial wire connection.
4. Take the sound system.

1. part name
2. part name
3. part name
4. part name

Refit the sound system by reversing the removal sequence.

NOTE: The pins are not required for refitting the sound system.
