55 Electric systemCigar lighter · page 1 of 2
  1. Adjust horn tone by means of the specific screw, if required.

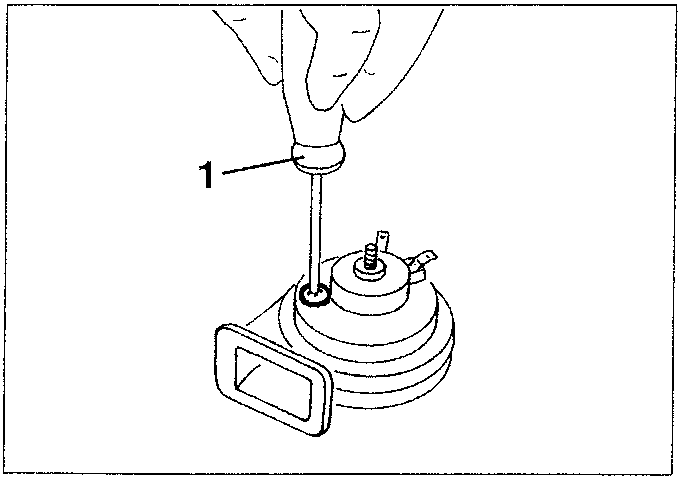

Adjusting horn tone with a screwdriver

Refit the horns by reversing the removal sequence.

CIGAR LIGHTER

REMOVAL/REFITTING

  1. Using tool 1.823.028.000 remove the cigar lighter body

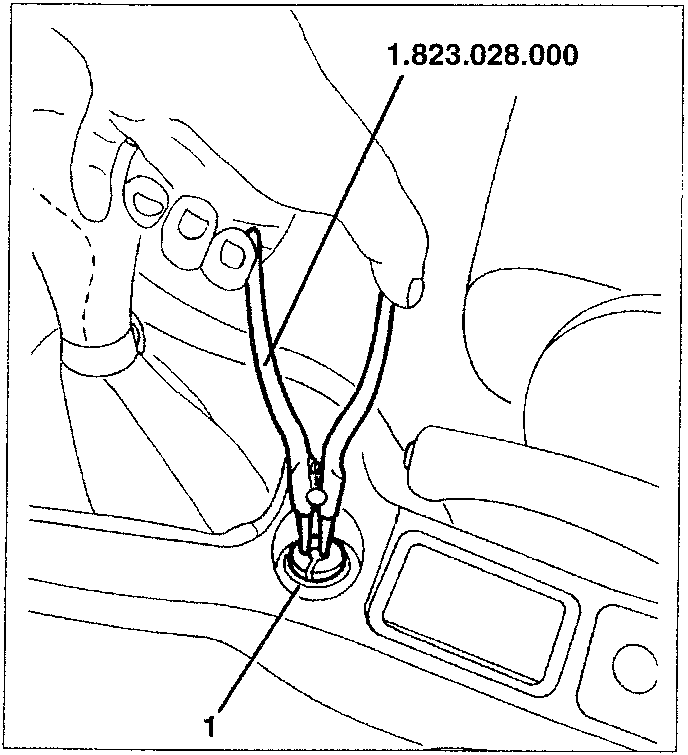

Using tool 1.823.028.000 to remove cigar lighter body
  1. Disconnect the electrical connection.
  2. Remove the bulb holder.
  3. If necessary, remove the bracket and take out the bulb.

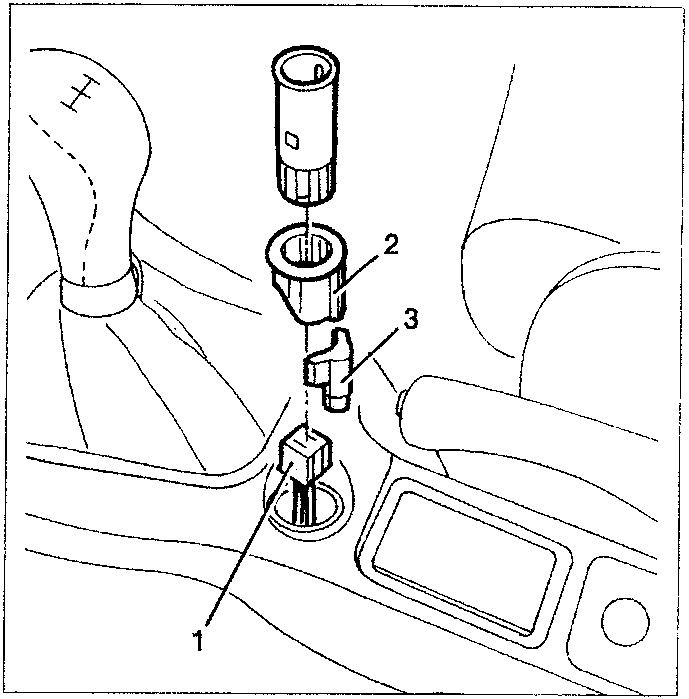

Removing bulb holder and bulb from dashboard

SOUND SYSTEM ('98 versions)

REMOVAL - REFITTING

  • Disconnect the battery.
  1. Fully insert the sound system detachment pins in their seats.
  2. Remove the sound system.

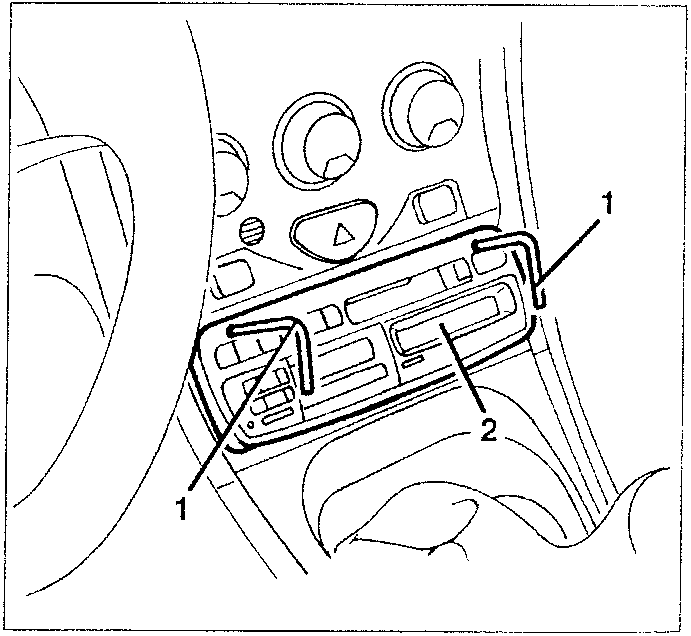

Inserting and removing sound system detachment pins
