Windscreen wiper unit

WINDSCREEN WIPER UNIT

REMOVAL/REFITTING

• Disconnect the battery.
• Remove the air intake grille (see GROUP 70).

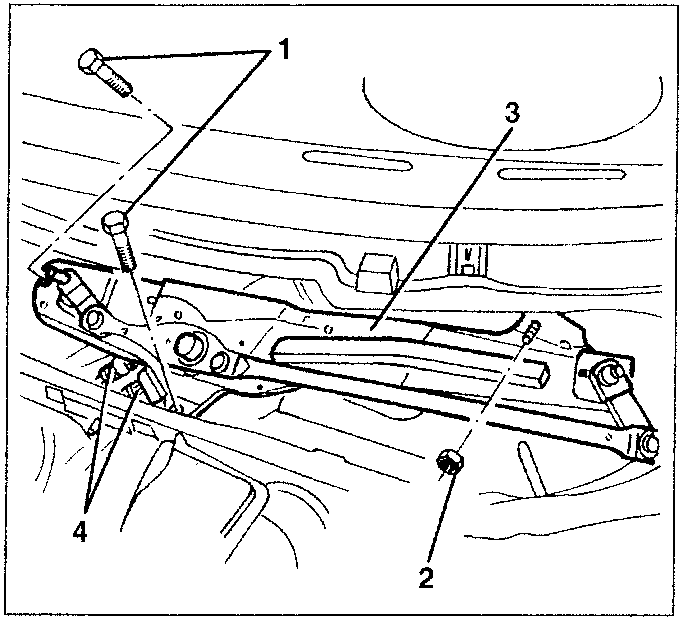

1. Slacken the two screws.
2. Slacken the nut.
3. Raise the windscreen wiper unit.
4. Disconnect the two electrical connections and retrieve the unit.

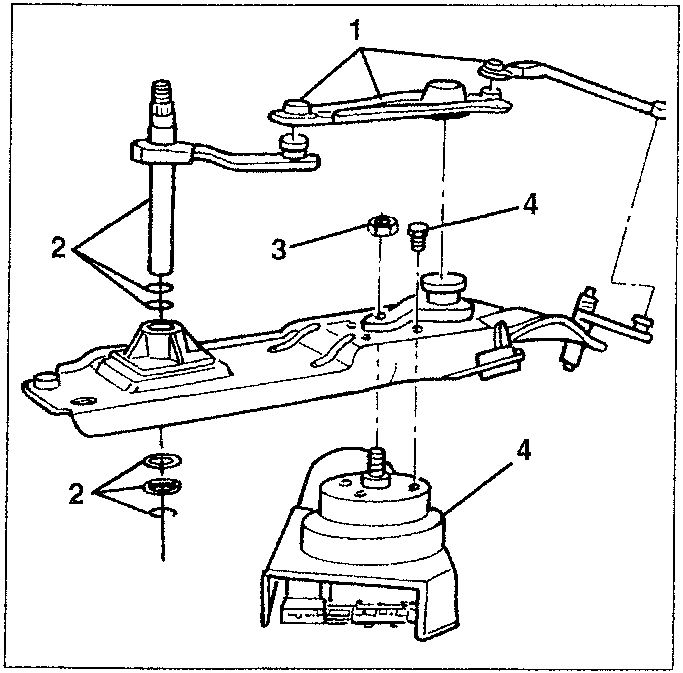

1. If necessary, disconnect the joints and retrieve the rods.
2. If necessary, remove the retainer ring and disassemble the windscreen wiper pins.
3. If necessary, slacken the nut connecting the lever to the motor.
4. Slacken the screws and remove the motor unit.

WINDSCREEN WASHER PUMP

REMOVAL/REFITTING

• Empty the windscreen washer fluid reservoir.
• Disconnect the battery.

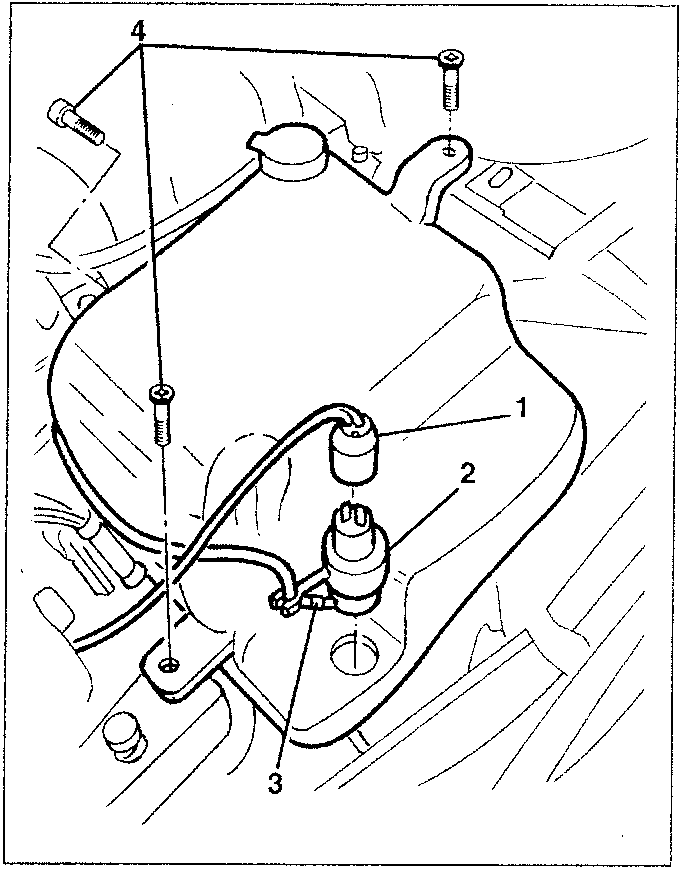

1. Disconnect the electrical connection of the pump.
2. Remove the pump from its housing.
3. Disconnect the pipe.
4. If necessary, slacken the three screws and remove the reservoir.

REMOVAL/REFITTING (2.0 V6 TB '98 version)

• Disconnect the battery.
• Open the boot.

1. Lift and lower the left-hand side boot panel.
2. Disconnect the pump electrical connection.
3. Drain the windscreen fluid reservoir.
4. Disconnect the pipe.
5. Release the retainers from the bracket and take the reservoir and pump.
