Fusebox

FUSEBOX

REMOVAL/REFITTING

• Disconnect the battery

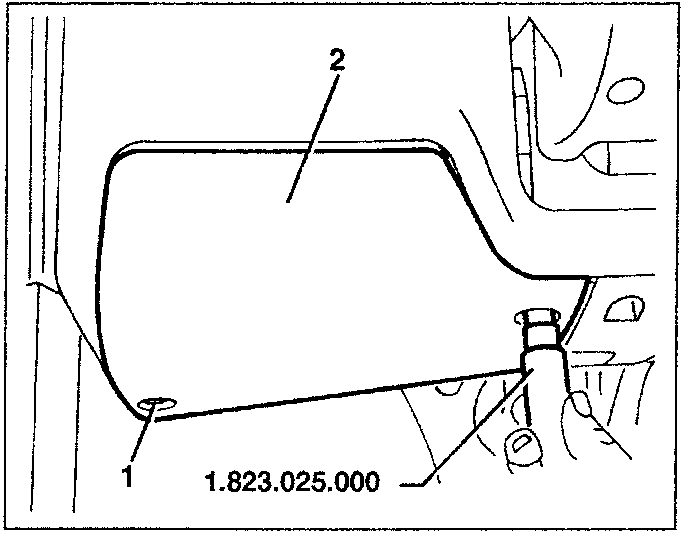

1. Using tool 1.823.025.000 turn the three bayonet pins fastening the fusebox cover.
2. Remove the fusebox cover.

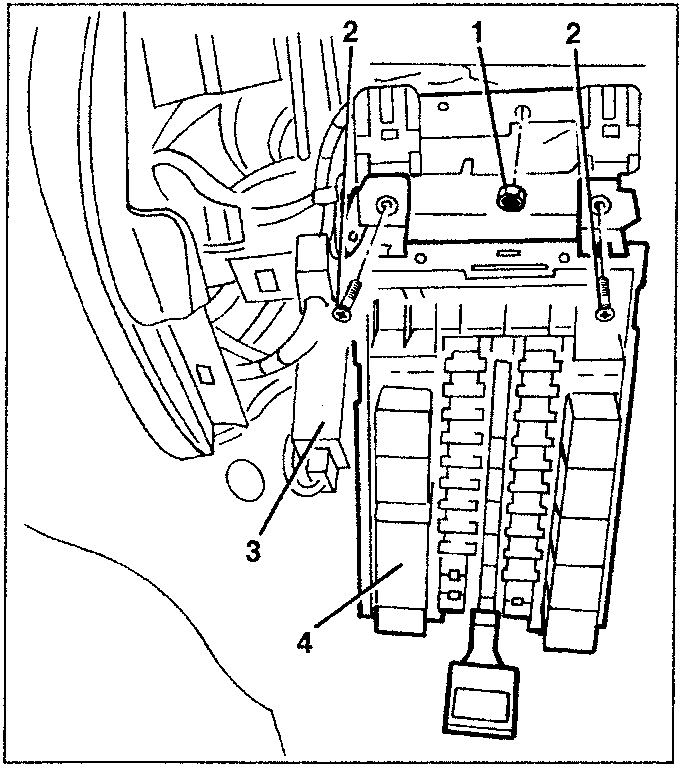

1. Slacken the centre screw of the fusebox bracket.
2. Slacken the bolts of the fusebox catches.
3. Release the various relays from the fusebox bracket.
4. Release the fusebox, disconnect the various connectors and retrieve the fusebox.

IGNITION SWITCH

REMOVAL/REFITTING

• Remove the lower steering column cover half (see Group 41)

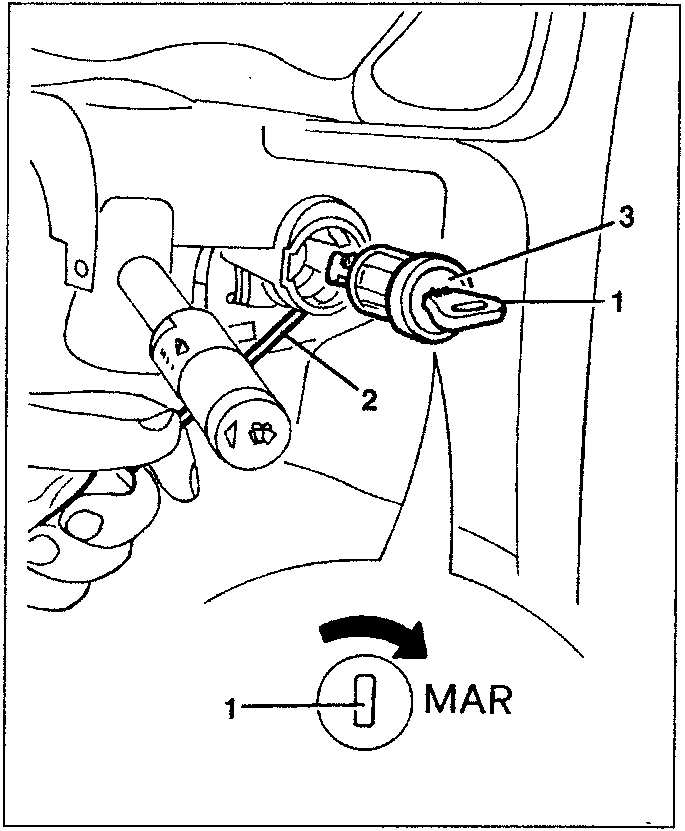

1. Engage the key and set it to the "MAR" position.
2. Work on the fastening clamp with a punch through the special slot.
3. Remove the ignition switch.
