LUGGAGE COMPARTMENT LIGHT

REMOVAL/REFITTING

• Open the boot and disconnect the battery.

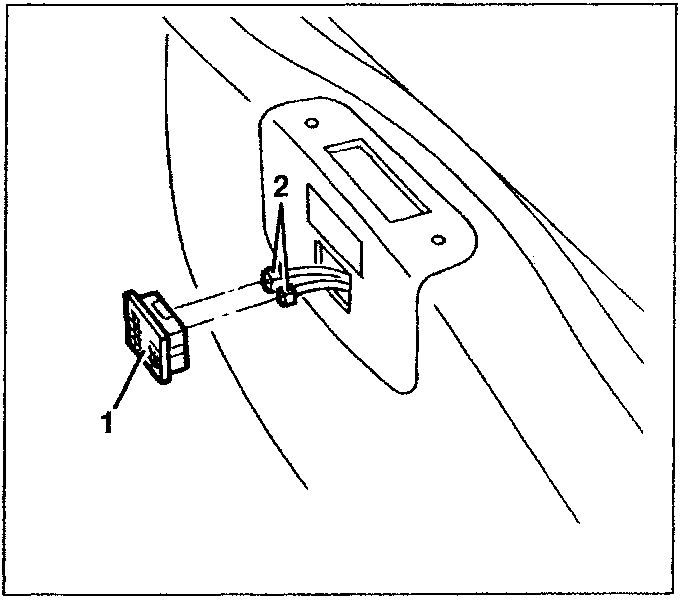

1. Remove the light from its housing.
2. Disconnect the two electrical connections.

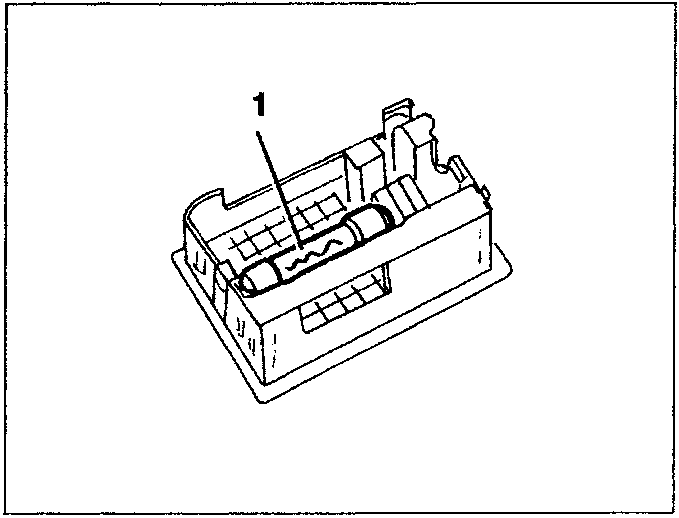

1. If necessary, remove the bulb pulling it outwards and releasing it from the side contacts.

BULB TABLE

Service	Power rating (W)	Type
High beam	55	A
Low beam	55	A
Front sidelight	5	B
Front direction indicator	21	C
Foglamp	55	E
Side direction indicator repeater	5	B
Rear direction indicator	21	C
Rear stop/side lights	21/5	C
Third stop - Spider	2.1	C
Third stop - Gtv	5	B
Reversing light	5	C
Rear fog guard	21	C
Number plate light	5	C
Passenger compartment roof light	5	D
Reading lamp	5	C
Dashboard and door lights	5	B
Glovebox light	5	D
Luggage compartment light	10	D
Climate controls lighting	1.2	B

WARNING:
When changing a bulb always replace it with one of the same type.

TYPES OF BULBS

A		Bulbs with "integral" bulb holder. Replace the bulb complete with bulb holder
B		"All-glass" bulbs. These are pressed on. Pull to remove.
C		Bayonet bulbs. To remove from the bulb holder: press the bulb, turn it counter-clockwise, then remove it.
D		Cylindrical bulbs To remove these, release from the side contacts.
E		Halogen bulbs. To remove the bulb, release the clip fastening the bulb from its housing.
