Headlamp aiming switch

HEADLAMP AIMING SWITCH

REMOVAL/REFITTING (to ’97 versions)

• Disconnect the battery

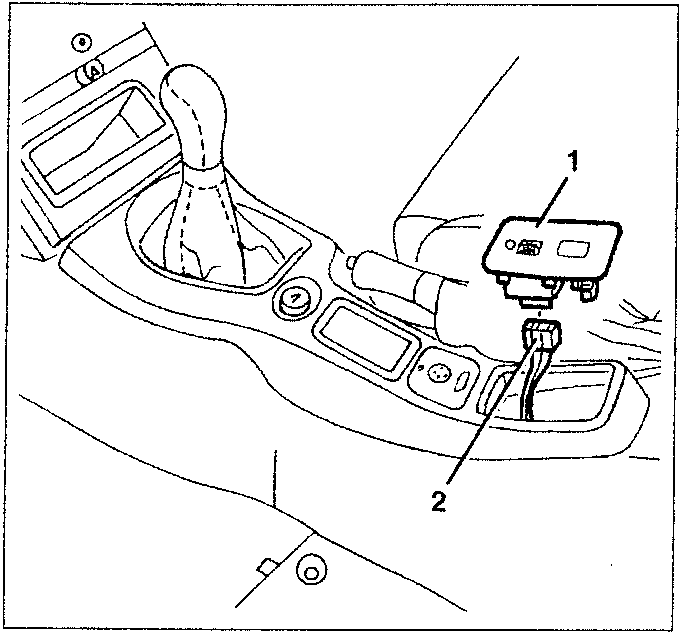

1. Remove the headlamp aiming switch panel from its housing on the centre tunnel.
2. Disconnect the electrical connection and retrieve the panel.

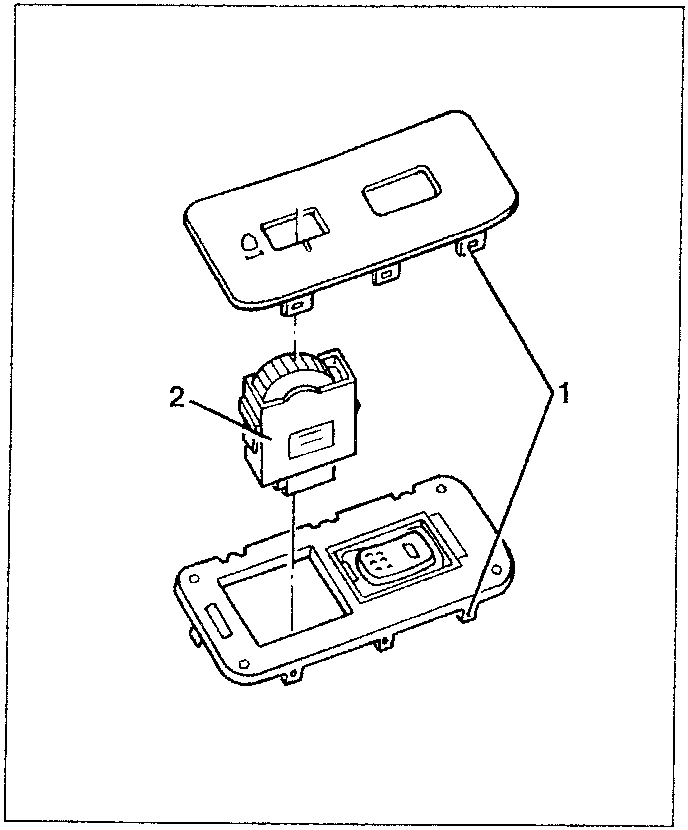

1. Release the side tabs and separate the outer plate.
2. Retrieve the headlamp aiming switch.

REMOVAL/REFITTING (’98 versions)

• Disconnect the battery

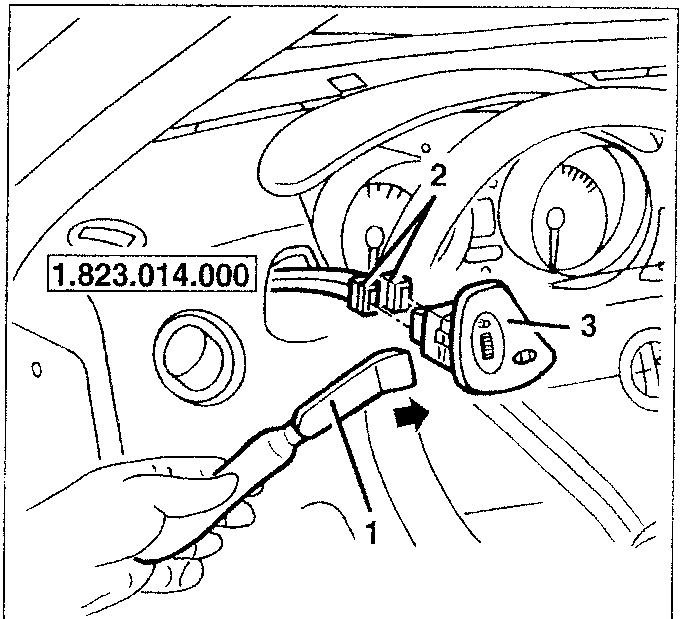

1. Use tool 1.823.014.000 to remove the switch board.
2. Disconnect the electrical connections.
3. Take the switch board.

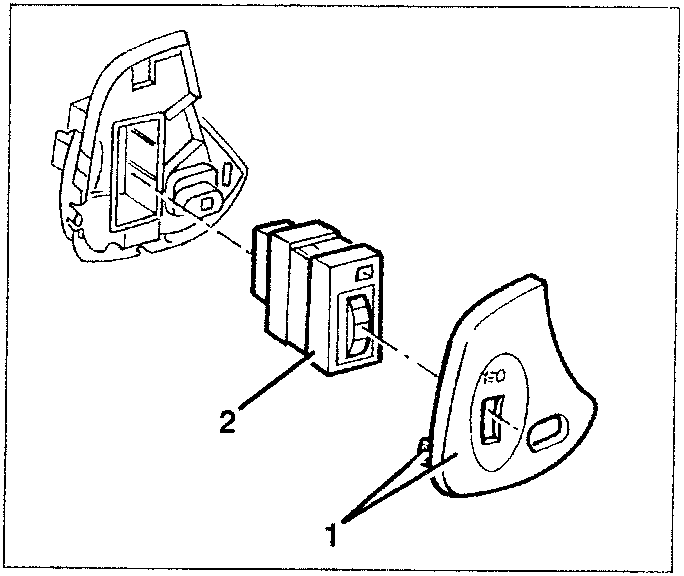

1. Press the side tabs and remove the external plate.
2. Take the headlight slant switch.
