Number plate lights

NUMBER PLATE LIGHTS

REMOVAL/REFITTING

• Disconnect the battery.

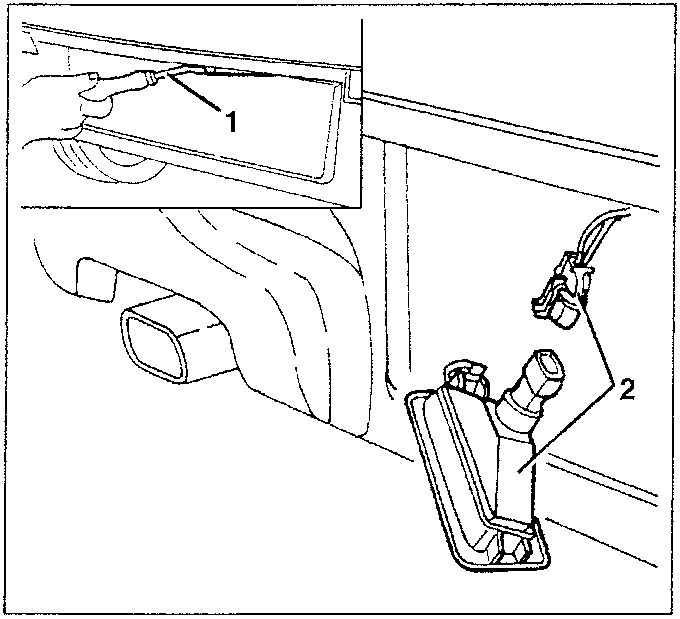

1. Remove the number plate lights from their housing on the bumpers, working as illustrated.
2. Disconnect the electrical connection from the number plate light and remove it.

• If necessary, remove the "all glass" bulb.

DIRECTION INDICATOR SIDE REPEATERS

REMOVAL/REFITTING

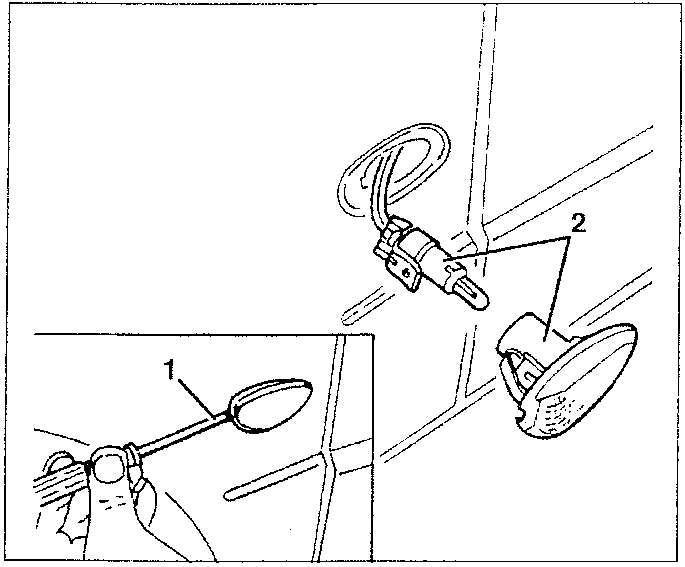

1. Working as illustrated, remove the side direction indicator repeater from its housing.
2. Turn the bulb holder counter-clockwise and remove the side direction indicator repeater.

• If necessary, remove the "all-glass" bulb.

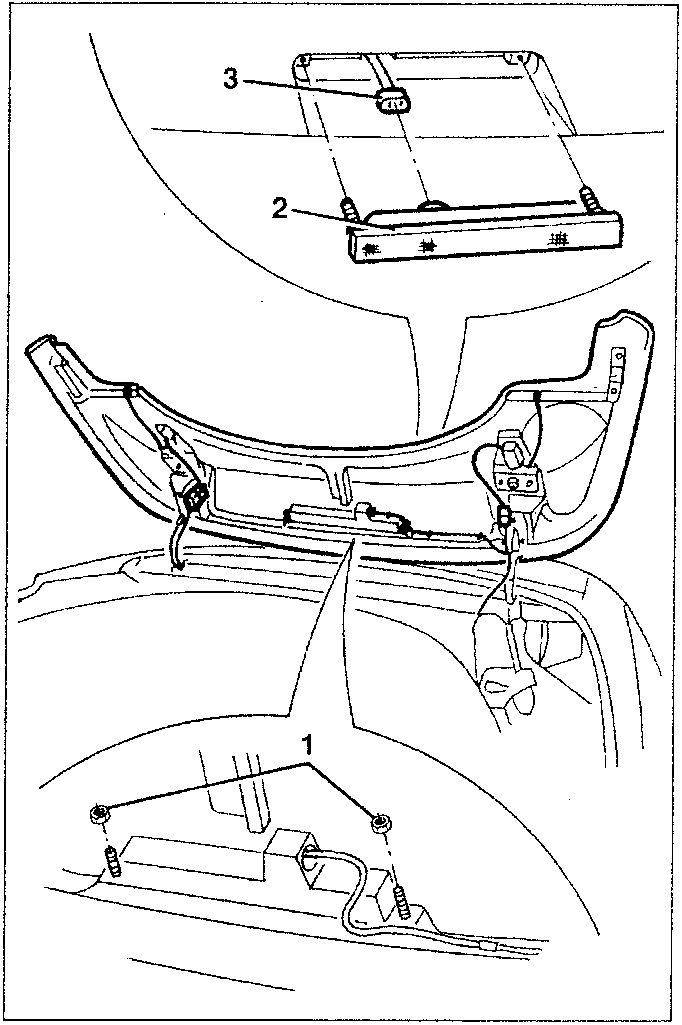

THIRD STOP LIGHT - SPIDER

REMOVAL/REFITTING

• Open the top cover and disconnect the battery.

1. Slacken the two nuts.
2. Remove the third stop light.
3. Disconnect the electrical connection.

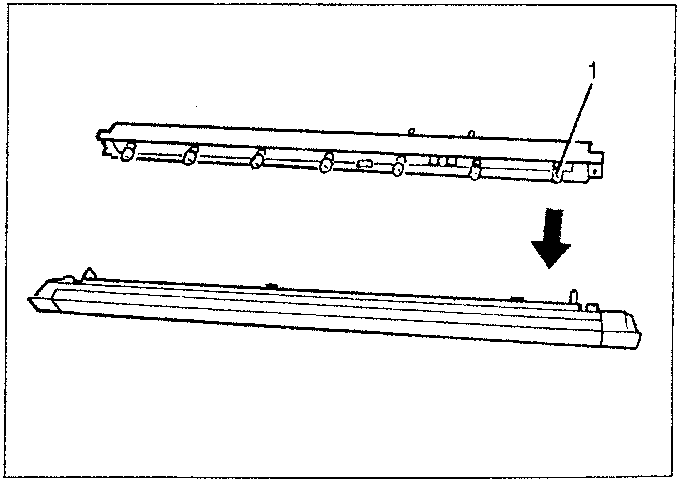

1. If necessary, open the third stop light and remove the bulbs, pressing and turning them counter-clockwise.
