HEADLAMP AIMING

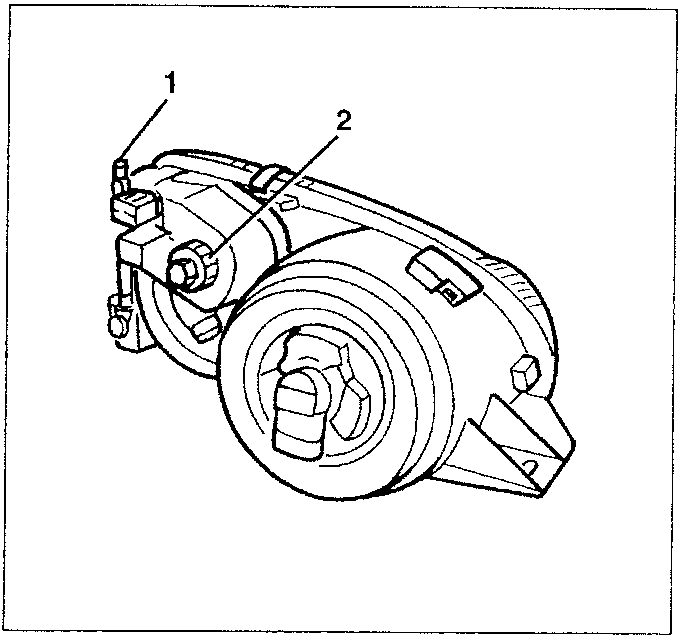

There are the following two possibilities for aiming the upper light clusters:

1. Horizontal adjustment screw.
2. Ring nut for vertical adjustment.

Before aiming the headlamps make sure that the light clusters are perfectly aligned with the bonnet closed. If necessary adjust the light cluster slotted fastenings.

Table of positions of headlamp aiming switch

Position of knob	Vehicle load
0	driver only or driver and passenger on front seat
1	all seats occupied
2	all seats occupied plus load in luggage compartment (up to reaching maximum permissible load on rear axle)
3	driver plus load in luggage compartment (up to reaching maximum permissible load on rear axle)
