Upper front light clusters

UPPER FRONT LIGHT CLUSTERS

REMOVAL/REFITTING

• Disconnect the battery and open the bonnet.
• Remove the engine compartment cover (see Group 70).

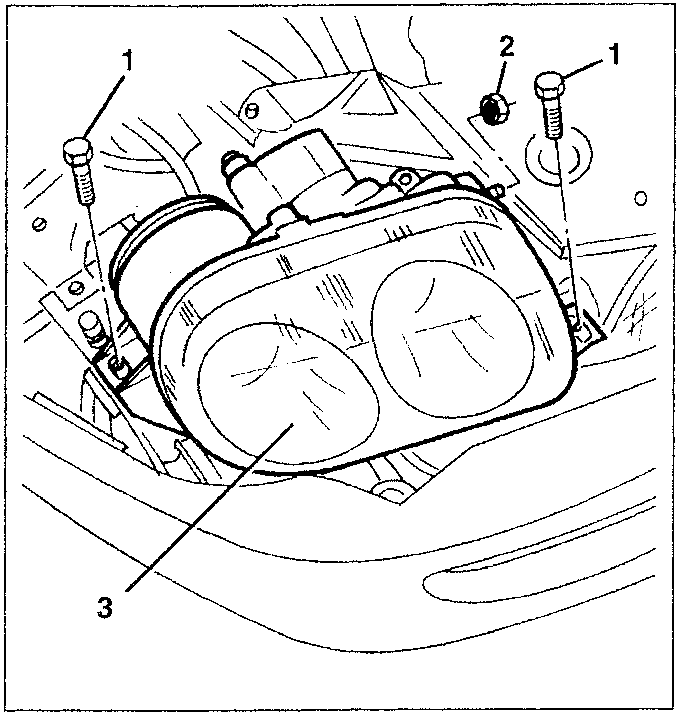

1. Slacken the two screws.
2. Unscrew the nut.
3. Move the light cluster.

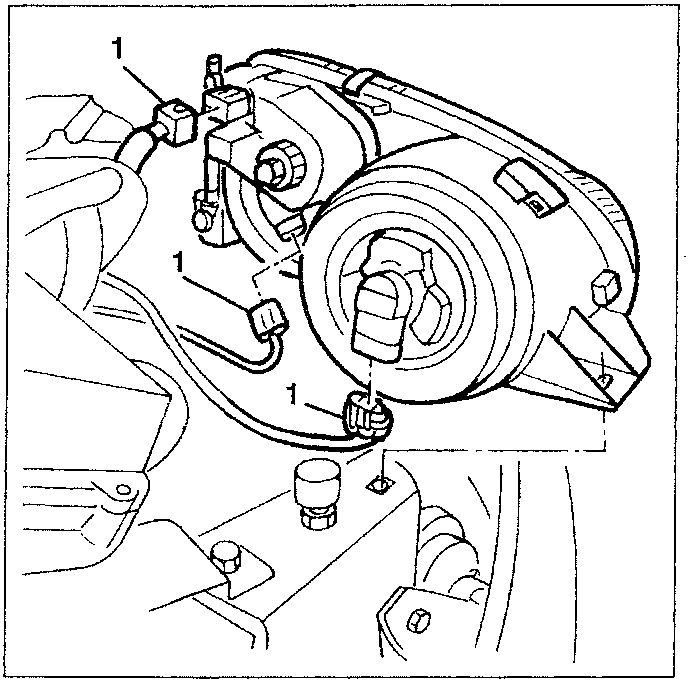

1. Move the light cluster forward just enough to disconnect the electrical connections, then remove the light cluster.

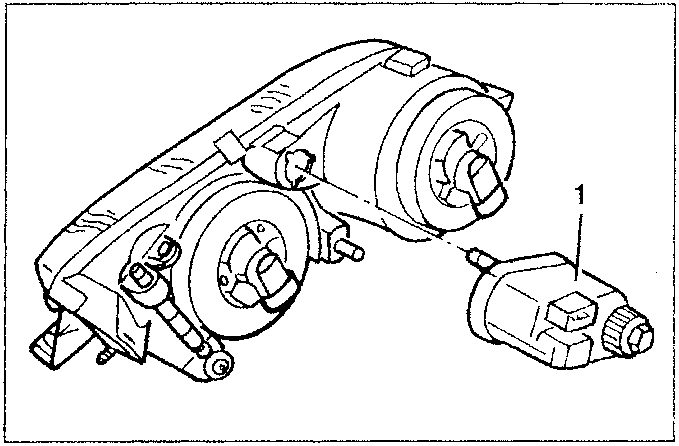

1. Remove the headlamp aiming device motor from the light cluster turning and sloping it to release the ball.

When refitting push the motor arm out completely and, after removing the high beam lamp cover, push the parabola downwards to ensure that the ball catches correctly.

After refitting check that the light clusters are correctly in place with the bonnet closed. If necessary, adjust the position working on the slots of the connection clamps. Carry out the headlamp aiming procedure.

BULB REPLACEMENT

• Disconnect the battery.

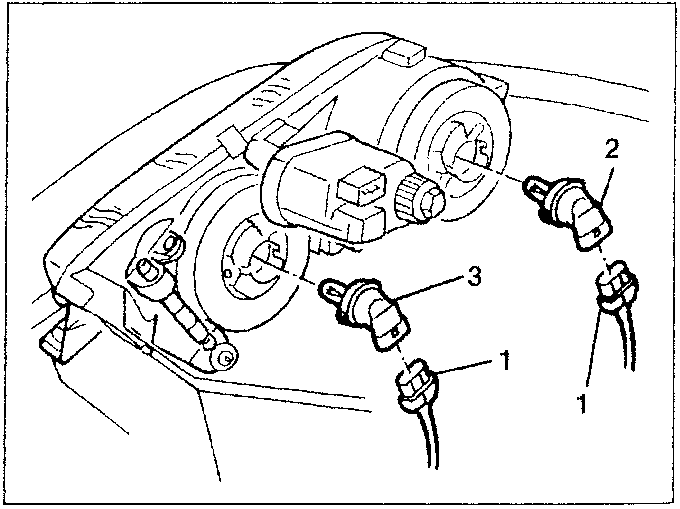

1. Working from the engine compartment, disconnect the two electrical connections.
2. Twist and remove the low beam lamp bulb holder.
3. Twist and remove the high beam lamp bulb holder.

WARNING: The bulbs are integrated with the bulb holder. Do not touch the headlamp bulb glass with the hands; if so, clean with spirit.
