Glove box light

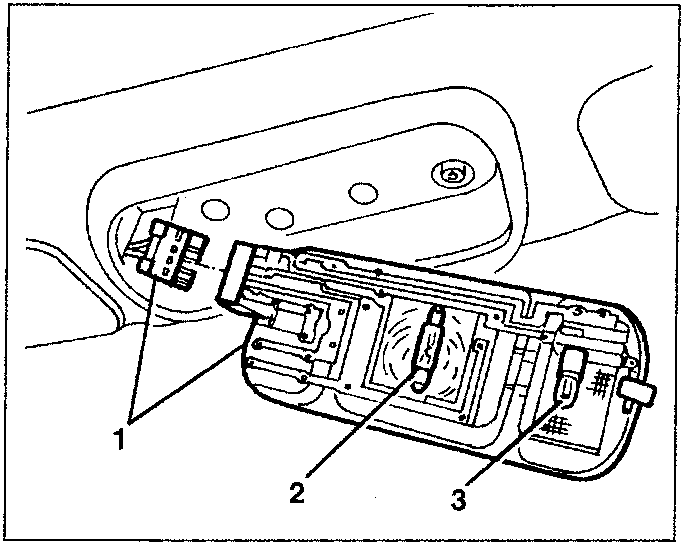

1. Disconnect the electrical connection and remove the roof lamp.
2. If necessary, remove the roof lamp bulb pulling it outwards.
3. If necessary, remove the reading lamp bulb.

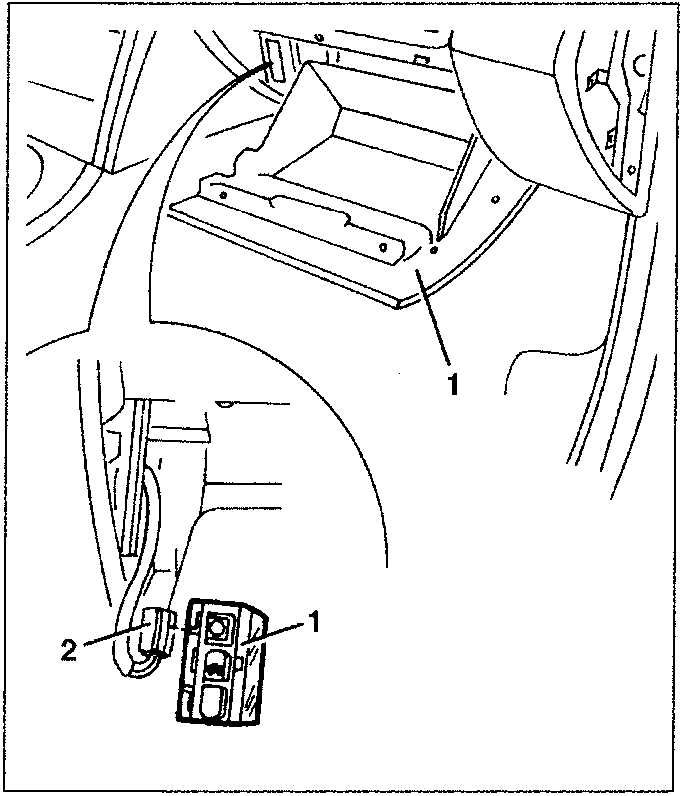

GLOVE BOX LIGHT

REMOVAL/REFITTING

• Disconnect the battery

1. Open the glove box and remove the complete light unit.
2. Disconnect the electrical connection.

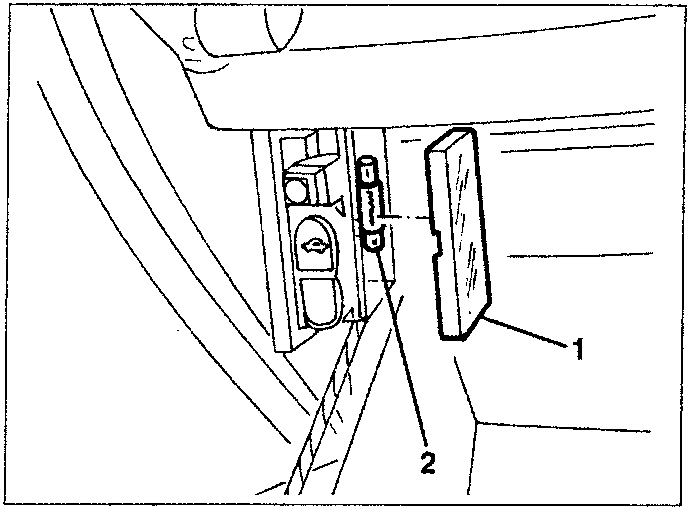

BULB REPLACEMENT

• Open the glovebox.

1. Remove the transparent cover.
2. Remove the bulb pulling it outwards and releasing it from the contacts.

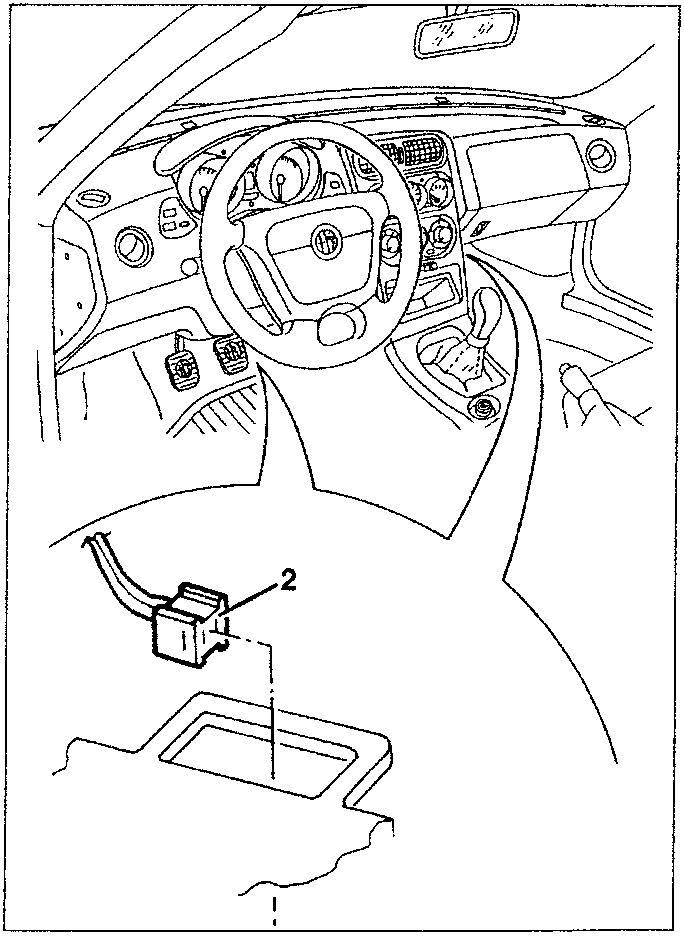

DASHBOARD LIGHT

REMOVAL/REFITTING

• Disconnect the battery

Working under the dashboard:

1. Remove the lamp taking it out from below.
2. Disconnect the electrical connection.
