55 Electric systemThird stop light - gtv

THIRD STOP LIGHT - GTV

REMOVAL/REFITTING

  • Disconnect the battery.

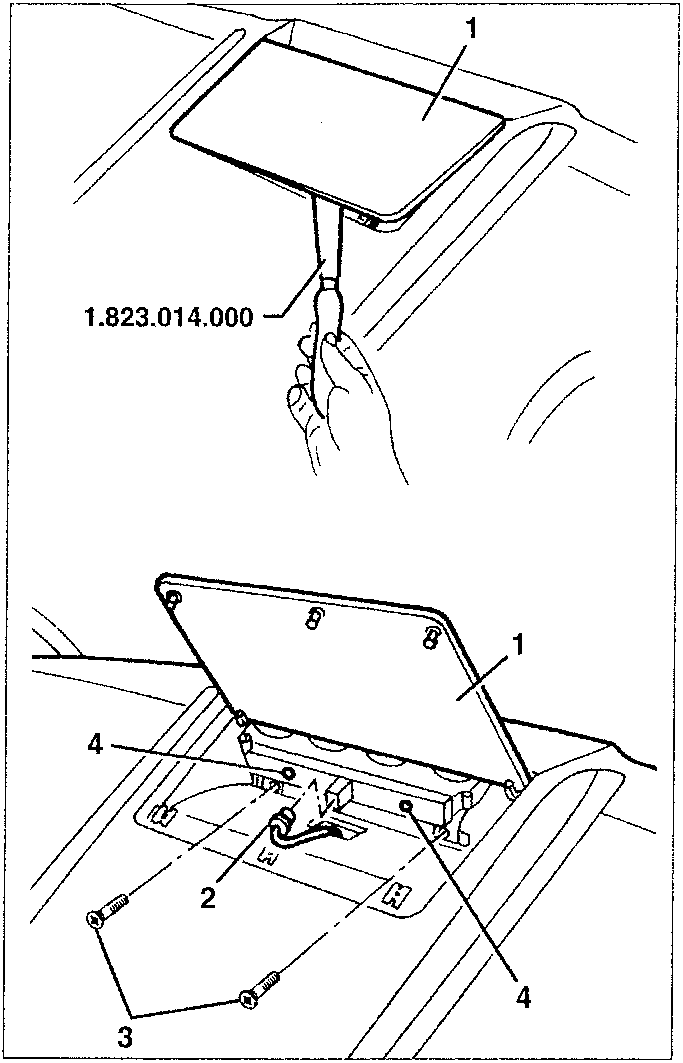

  1. Using tool 1.823.014.000 raise the third stop light cover.
  2. Disconnect the electrical connection.
  3. If necessary, slacken the two screws and remove the complete unit.
  4. Slacken the two screws and remove the bulb holder panel.
Diagram showing removal of third stop light cover with tool 1.823.014.000 and bulb holder panel with parts labeled 1, 2, 3, 4.

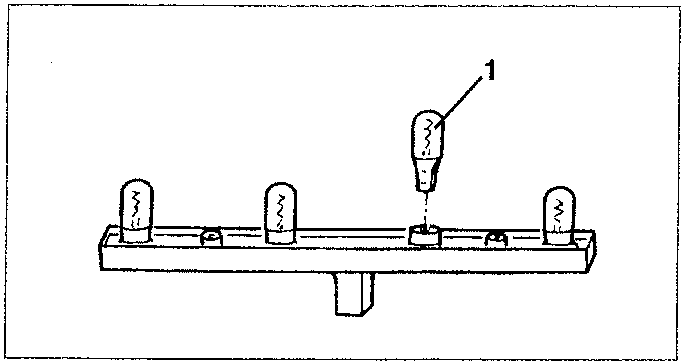

  1. If necessary, remove the "all-glass" bulbs.
Diagram showing three bulbs on a bar with one highlighted as part 1.

THIRD BRAKE LIGHT GTV ON REAR SPOILER ('98 versions)

REMOVAL/REFITTING

  • Disconnect the negative battery terminal.

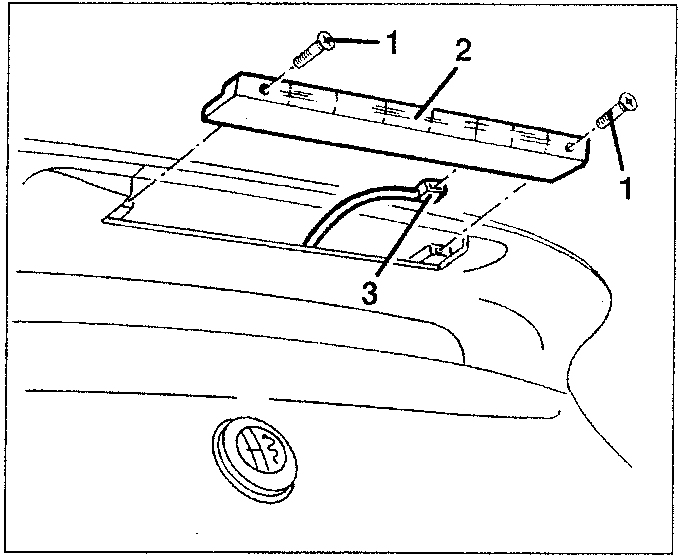

  1. Loosen the supplementary brake light fastening screws.
  2. Move the supplementary brake light aside.
  3. Disconnect the electrical connection and take the supplementary brake light.
Diagram showing supplementary brake light on rear spoiler with parts labeled 1, 2, 3.

Refit the supplementary brake light by reversing the removal sequence.

PASSEGER COMPARTMENT ROOF LAMP

REMOVAL/REFITTING

  • Disconnect the battery.

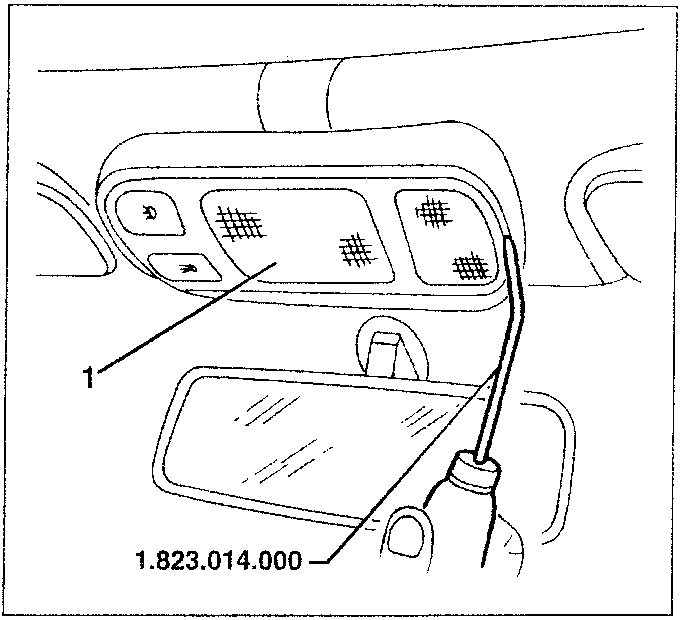

  1. Using tool 1.823.014.000 inserted in the side slit, remove the roof lamp from its frame.
Diagram showing removal of roof lamp with tool 1.823.014.000 inserted in side slit.
