BULB REPLACEMENT

  1. Twist and remove the direction indicator bulb holder and remove the bulb from the bulb holder.
  2. Twist and remove the sidelights bulb holder and remove the bulb from the bulb holder.
  3. Twist and remove the fog lamp cover.
  4. Disconnect the connection.
  5. Release the fastening clip.
  6. Remove the fog lamp bulb.

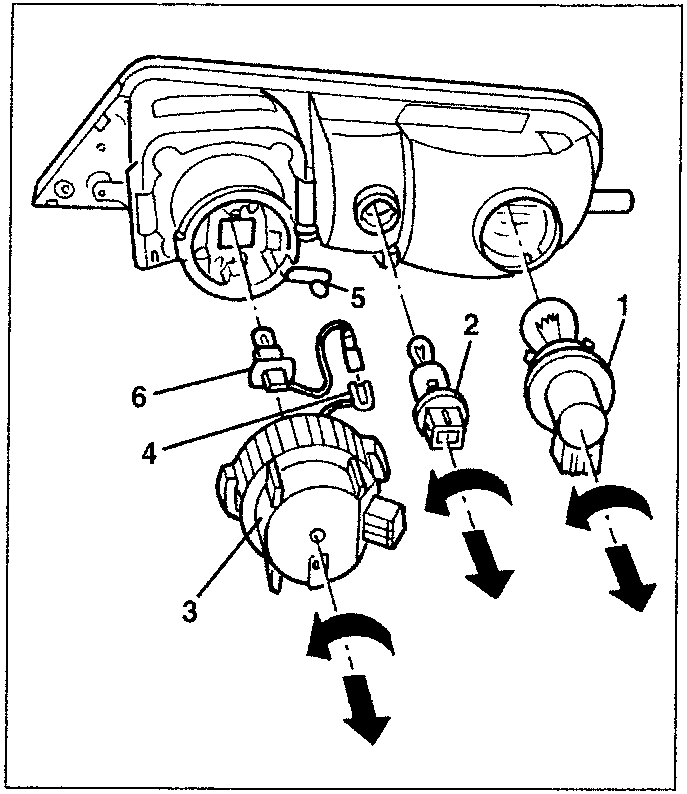

Diagram showing bulb replacement steps with numbered parts: 1. Bulb, 2. Sidelight bulb holder, 3. Fog lamp bulb, 4. Fastening clip, 5. Connection, 6. Direction indicator bulb holder. Arrows indicate twisting and removal actions.
  1. If necessary, when refitting adjust the height of the foglamp beam using the special screw.

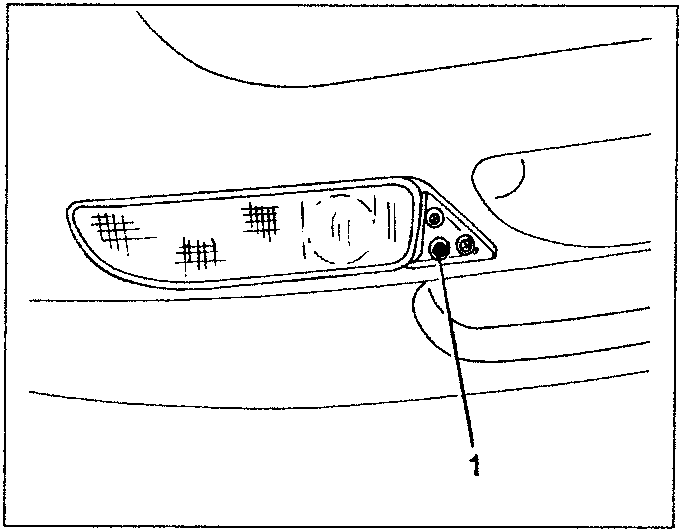

Diagram showing a side light unit with a numbered part: 1. Bulb holder.

TAIL LIGHT CLUSTER

REMOVAL/REFITTING

NOTE: The tail lights are gathered together in the tail light strip and comprise four autonomous units with two bulbs each. The diagram below shows the position of the different bulbs, seen from the outside of the car.

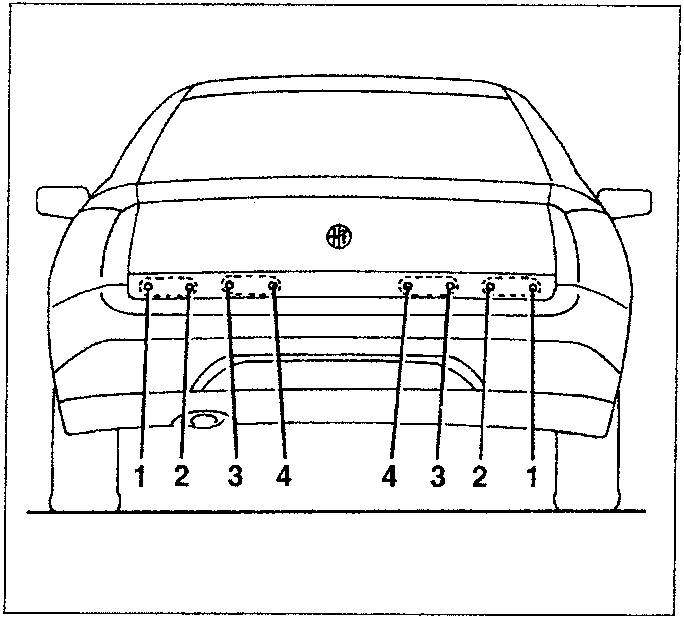

Diagram showing rear view of car with tail light strip. Numbers 1 to 4 indicate bulb positions: 1. Direction indicator, 2. Sidelight - stop light, 3. Reversig light, 4. Rear fog guard.
  1. Direction indicator
  2. Sidelight - stop light
  3. Reversig light
  4. Rear fog guard
  • Disconnect the battery.
  • Remove the rear luggage compartmet trim (see group 70)
  1. Twist the bayonet connection.
  2. Remove the bulb holder unit.
  3. Disconnect the electrical connection.
  4. If necessary, remove the bulbs from the bulb holder pressing and turning them counter-clockwise.

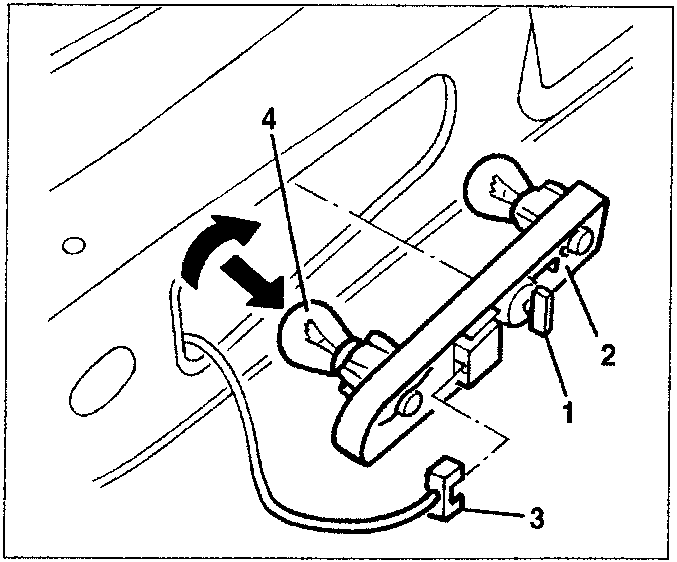

Diagram showing tail light bulb holder with numbered parts: 1. Bulb holder, 2. Electrical connection, 3. Connection, 4. Bulb. Arrows indicate twisting action.
