55 Electric systemDoor light
  1. If necessary, remove the cover and change the bulb.
Diagram showing a light fixture with part 1 labeled

DOOR LIGHT

REMOVAL/REFITTING

– Disconnect the battery.

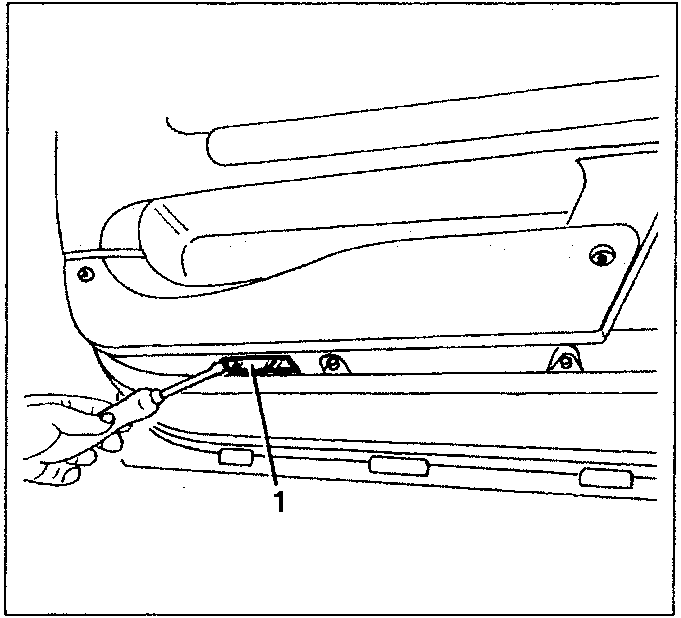

  1. Open the door and, working from the lower side of the door panel, remove the light from its housing.
Diagram showing a hand using a tool to remove a light fixture from a door panel

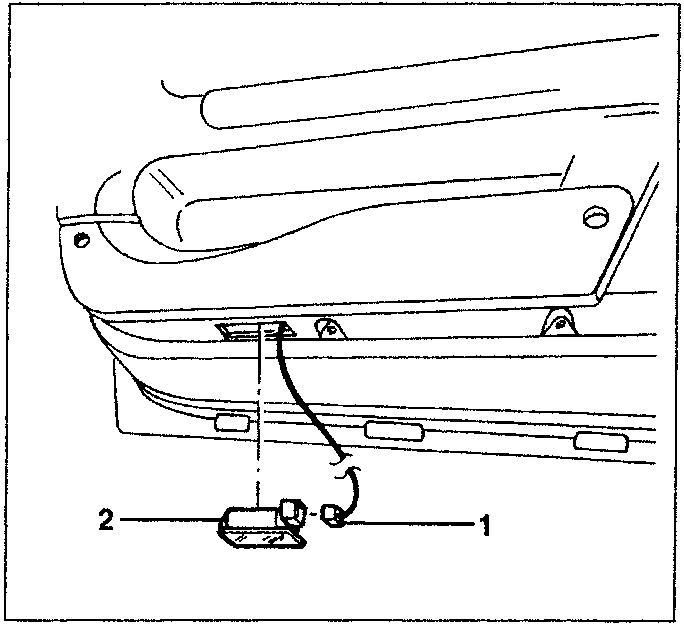

  1. Disconnect the connection.
  2. Retrieve the light.
Diagram showing a light fixture with parts 1 and 2 labeled

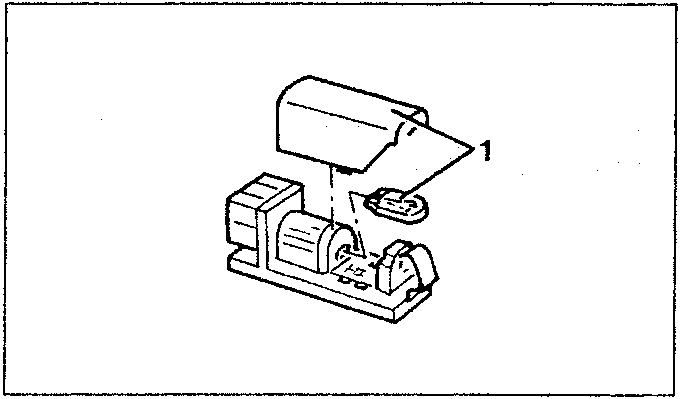

  1. If necessary, remove the cover and change the bulb.
Diagram showing a light fixture with part 1 labeled
