55 Electric systemHorns

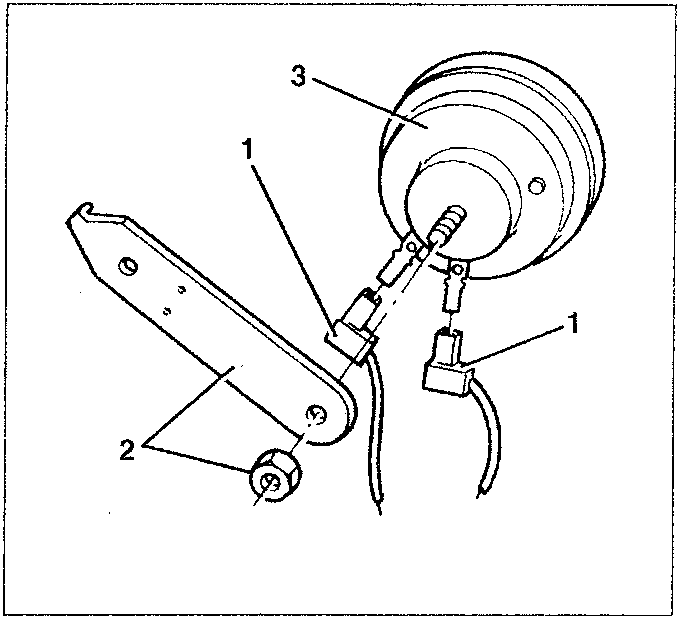

  1. Disconnect the two electrical connections.
  2. Slacken the nut and remove the bracket.
  3. Retrieve the horn.
Diagram showing components 1, 2, 3, 4, and 5 in a car's interior near the steering column.

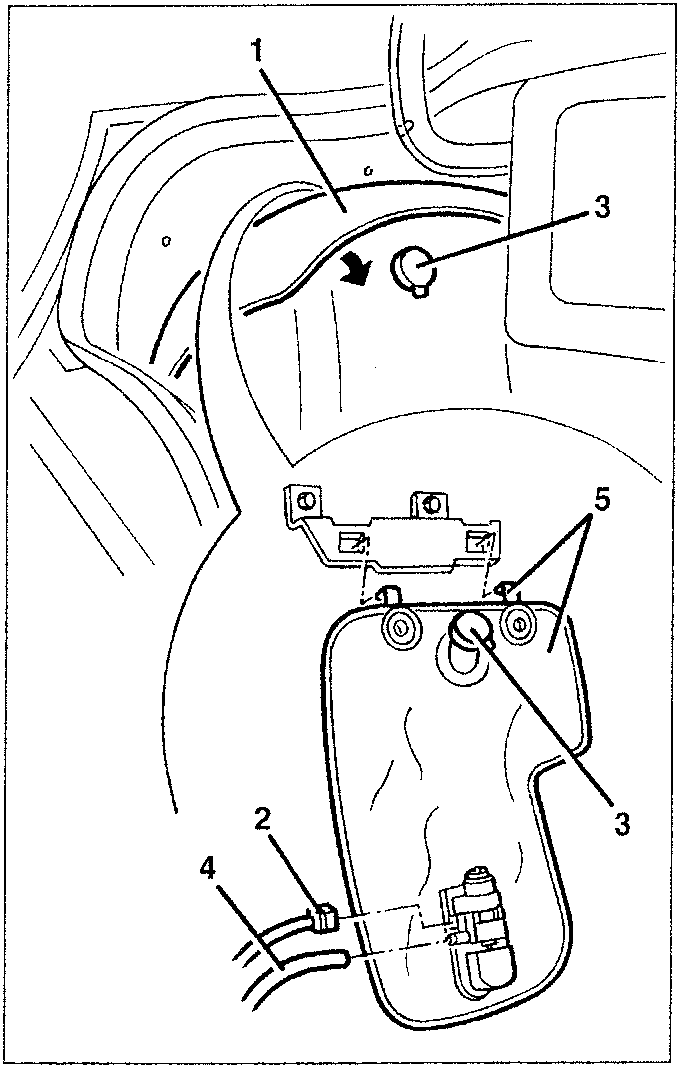

Refit the reservoir and pump by reversing the removal sequence.

HORNS

REMOVAL/REFITTING

  • Disconnect the battery.
  • Open the bonnet and remove the upper light cluster (see specific paragraph).

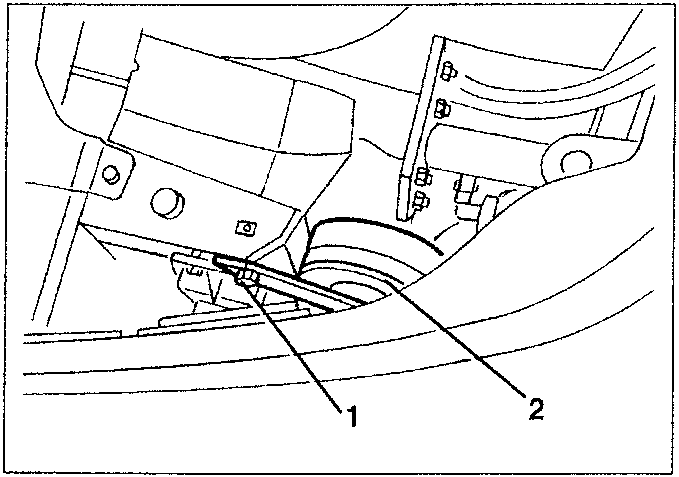

  1. Slacken the fastening screw.
  2. Remove the horn complete with bracket.
Diagram showing components 1 and 2 in a car's interior near the steering column.
Diagram showing components 1, 2, and 3 of a horn assembly.

REMOVAL/REFITTING ('98 versions)

  • Disconnect the battery.
  • Open the bonnet.

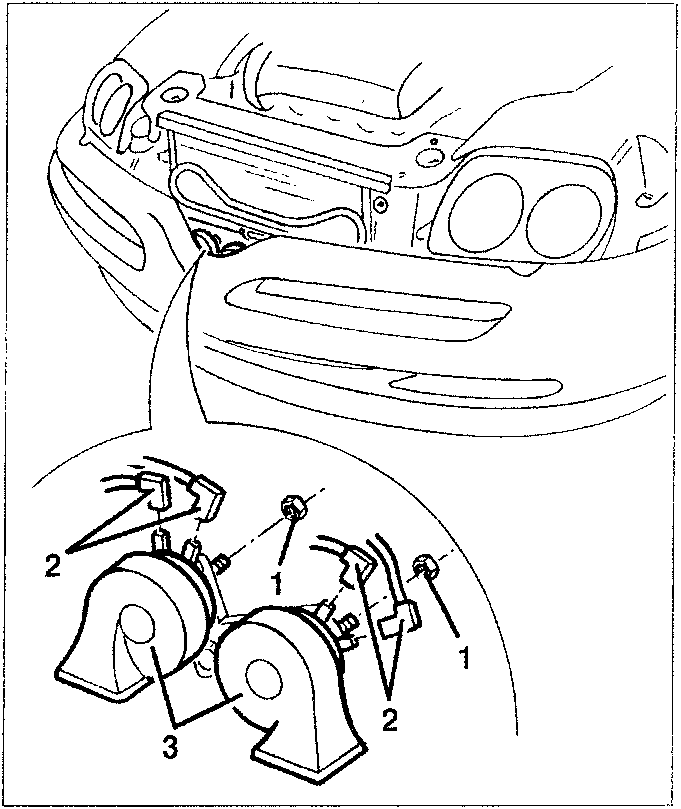

  1. Loosen the horn fastening nut.
  2. Disconnect the electrical connections.
  3. Remove the horns.
Diagram showing components 1, 2, and 3 of a horn assembly in a car's front bumper area.
