Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)17 · 55 Electric system
17 · General

REMOVAL/REFITTING (to '97 versions)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Instrument cluster › REMOVAL/REFITTING (to '97 versions)
55 Electric systemREMOVAL/REFITTING (to '97 versions)

REMOVAL/REFITTING (to '97 versions)

  1. If necessary change the bulbs withdrawing the bulb holder from the cluster and removing the bulbs.
  2. Slacken the six screws and remove the auxiliary panel.

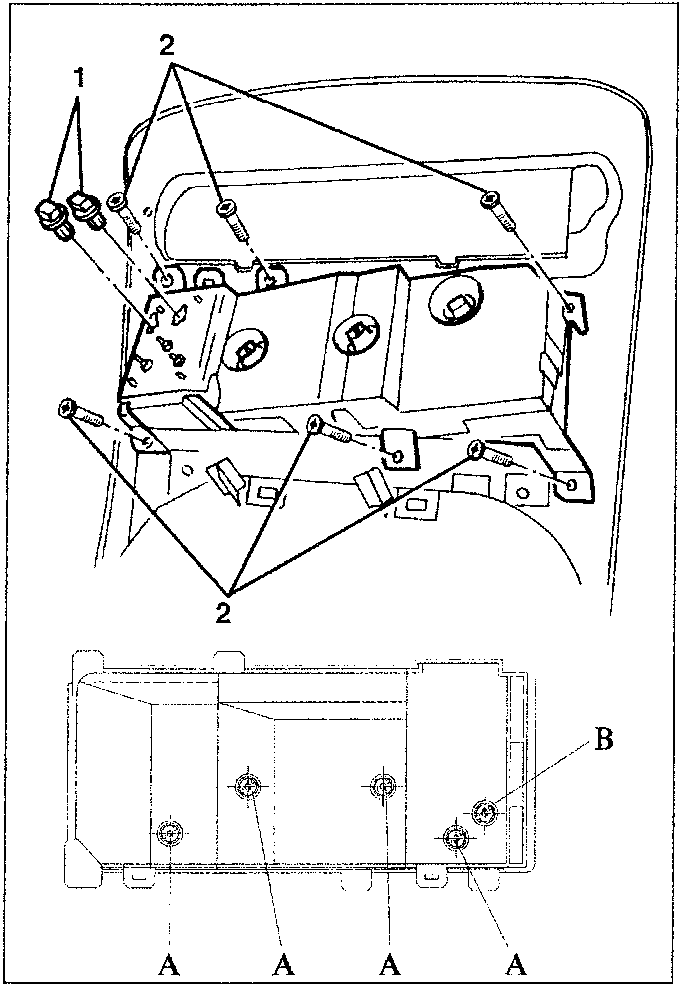

Instrument cluster with front panel showing screws and bulb holders
  1. A - Panel lighting bulbs
  2. B - Max. coolant temperature warning light

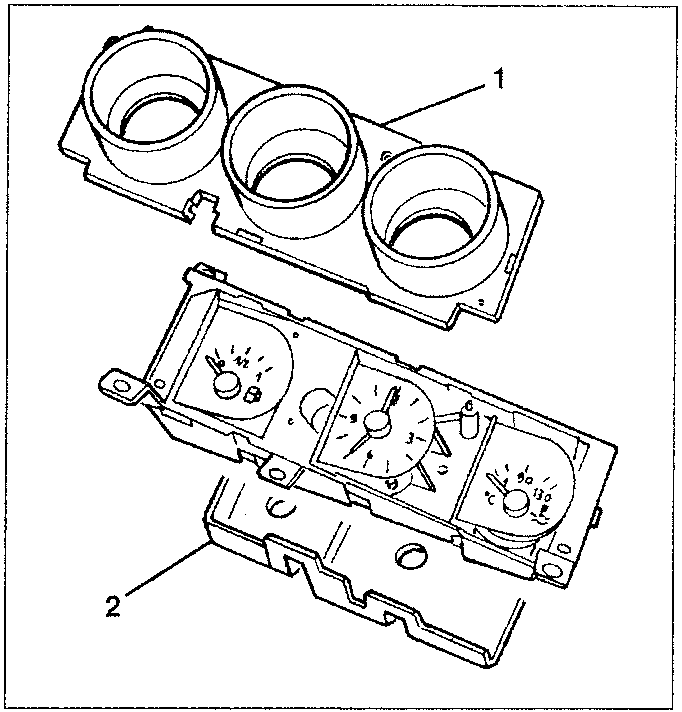

  3. Levering on the retainer tabs, remove the front panel.
  4. Levering on the retainer tabs, remove the rear cover.

REMOVAL/REFITTING ('98 versions)

  • Remove the central unit (see specific paragraph).

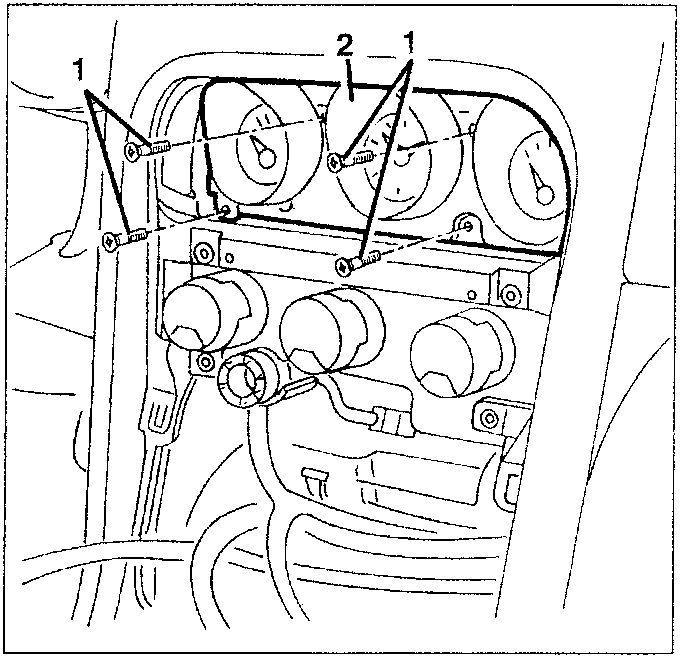

  1. Loosen the screws.
  2. Move the auxiliary instrument panel slightly aside.
Car dashboard control panel with three dials and mounting brackets
Instrument cluster with screws and retainer tabs
