55 Electric systemSun roof control switch (gtv)

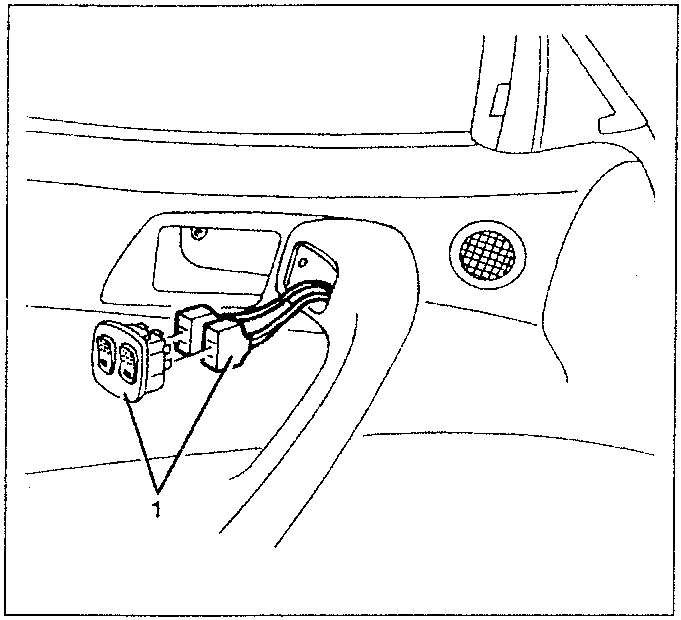

1. Disconnect the electrical connections from the power window switches and remove the plates.

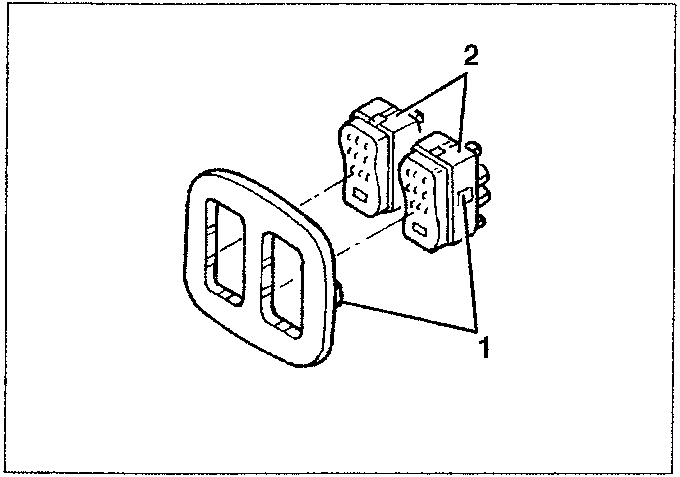

1. Working on the tabs prise off the outer plate.
2. Retrieve the switches.

SUN ROOF CONTROL SWITCH (GTV)

Operate as listed for the headlamp aiming switch (see specific paragraph)).

TOP CONTROL SWITCHES (SPIDER)

REMOVAL/REFITTING

• Disconnect the battery

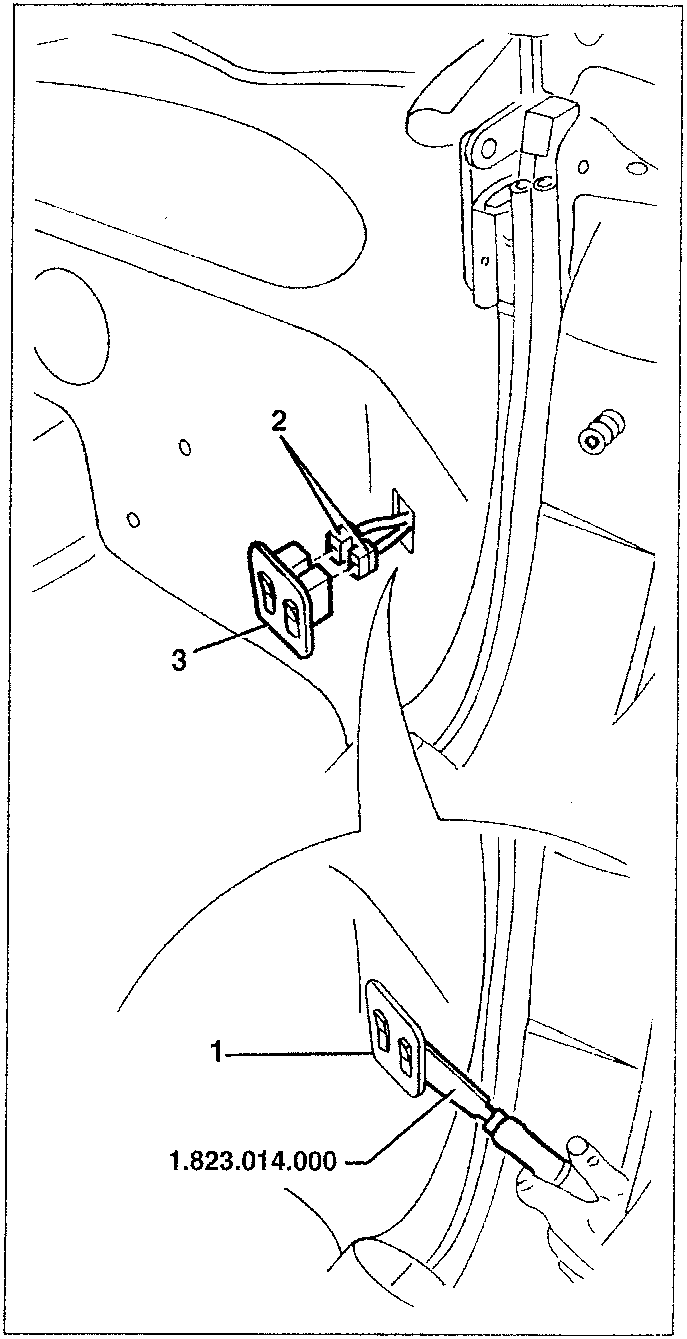

• Prise the switch panel using tool 1.823.014.000
• Disconnect the electrical connections.
• Retrieve the switch panel.
