Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)18 · Electric system diagnosis – 1995-96 cars (incl. V6 Turbo and 24V)
18 · Diagnostics

Alternator (page 2 of 4)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Charging
Electric system diagnosis – 1995-96 cars (incl. V6 Turbo and 24V)Alternator · page 2 of 4

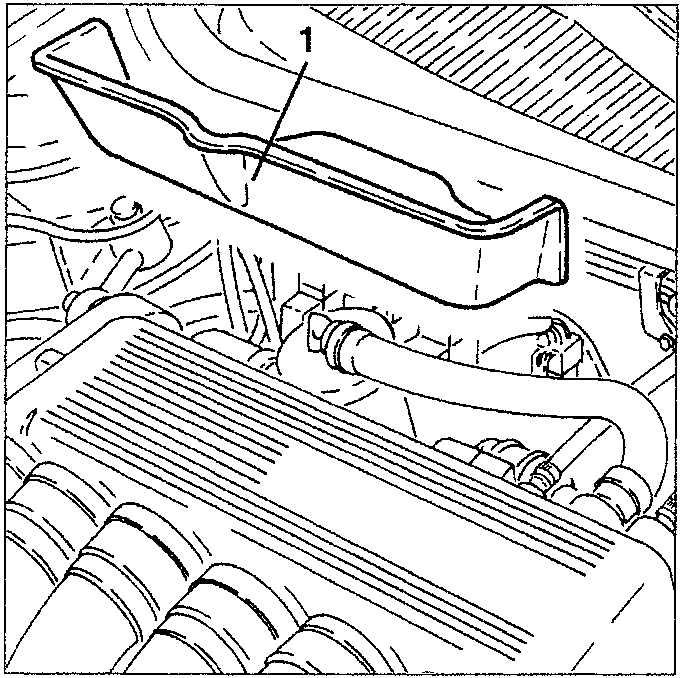

  1. Slacken the fastenings and remove the heat guard.
Engine compartment showing heat guard being removed

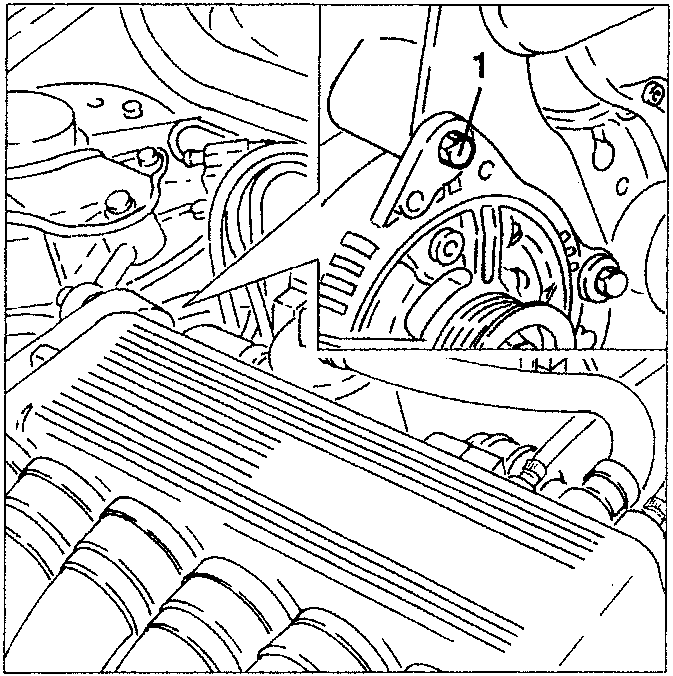

  1. Slacken the upper screw fastening the alternator to the support bracket.
Alternator support bracket with upper screw
  1. Install a special engine support bracket on the cylinder head.
Engine support bracket installed on cylinder head

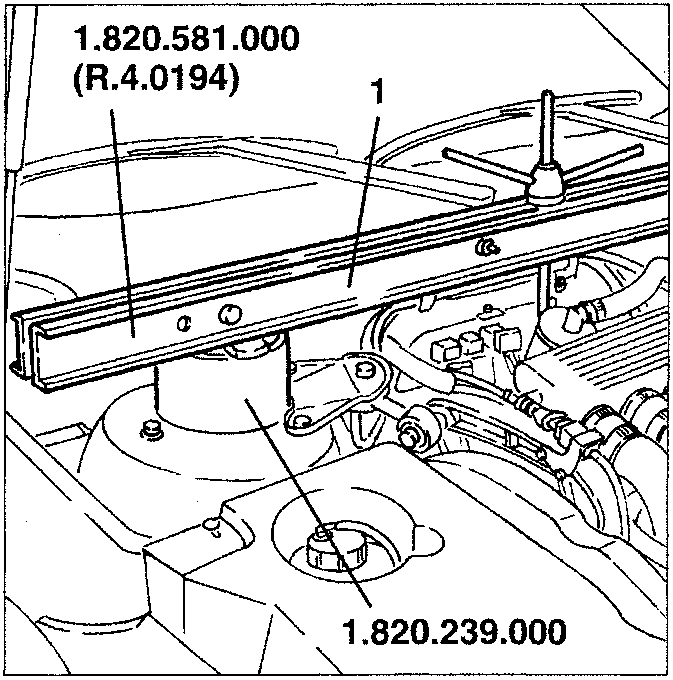

  1. Install crossmember no. 1.820.581.000 (R.4.0194) complete with supports no. 1.820.239.000 for supporting the power unit.
Crossmember and supports installed under engine
