Electric system diagnosis – 1995-96 cars (incl. V6 Turbo and 24V)Alternator · page 3 of 4

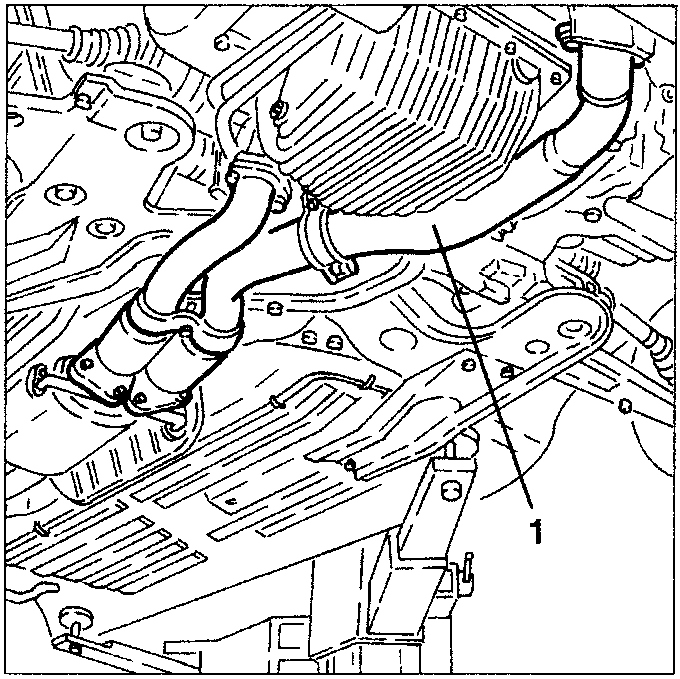

1. Raise the car and remove the front section of the exhaust pipe.

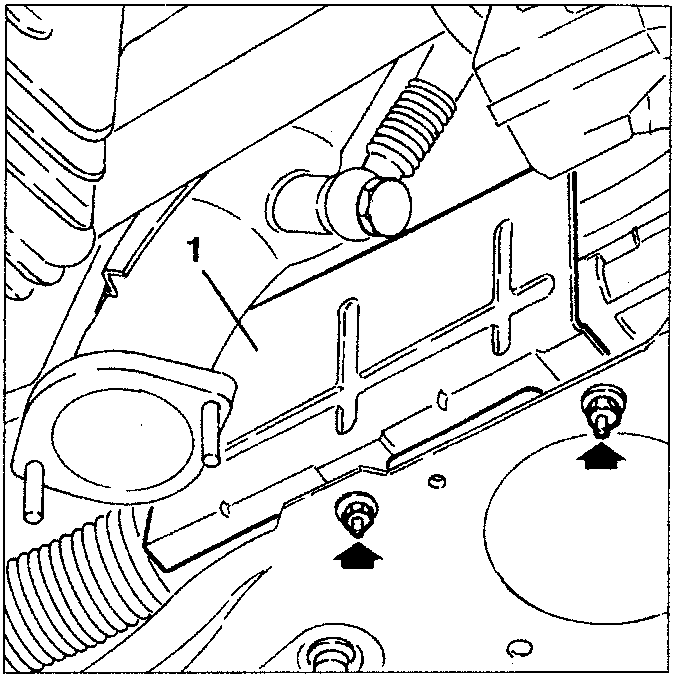

1. Slacken the fastenings and remove the heat guard of the power steering box.

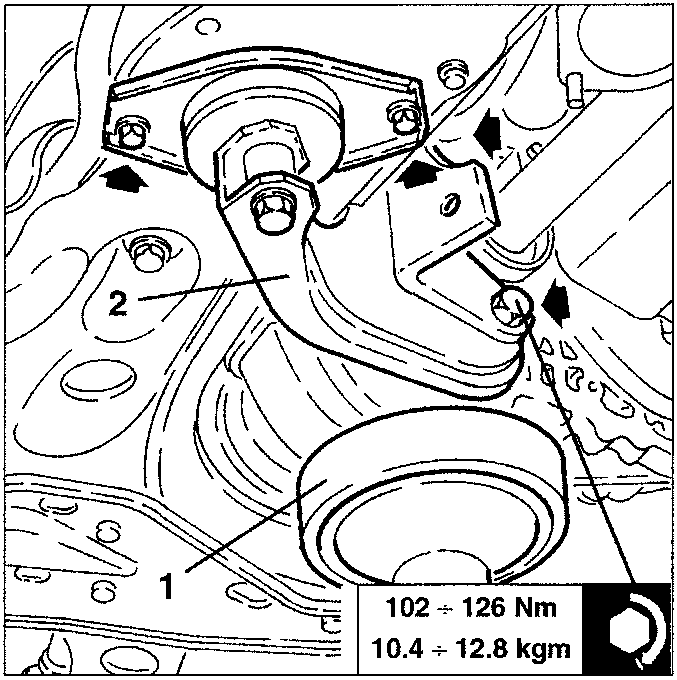

1. Position a hydraulic jack under the gearbox as illustrated.
2. Slacken the fastening screws and remove the rear power unit support.

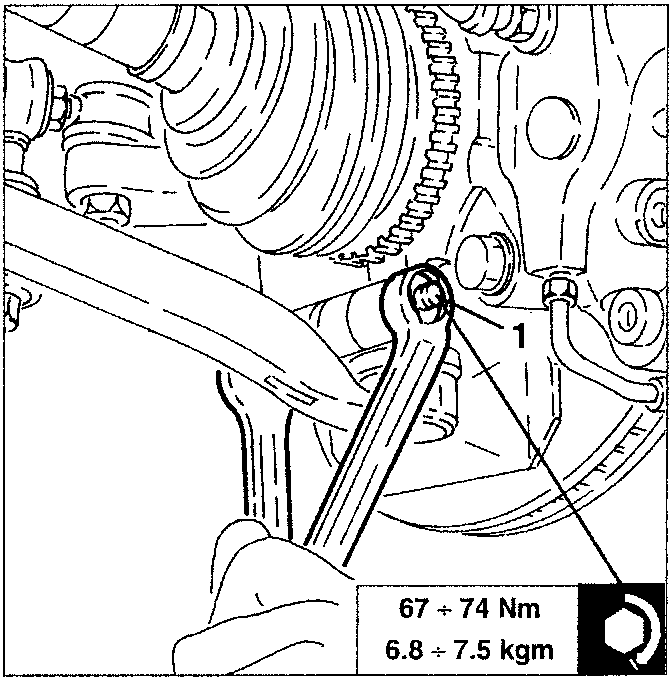

1. Slacken the bolts fastening the wishbones to the wheel uprights.

102 ÷ 126 Nm
10.4 ÷ 12.8 kgm

67 ÷ 74 Nm
6.8 ÷ 7.5 kgm
