Electric system diagnosis – 1995-96 cars (incl. V6 Turbo and 24V)Alternator · page 4 of 4

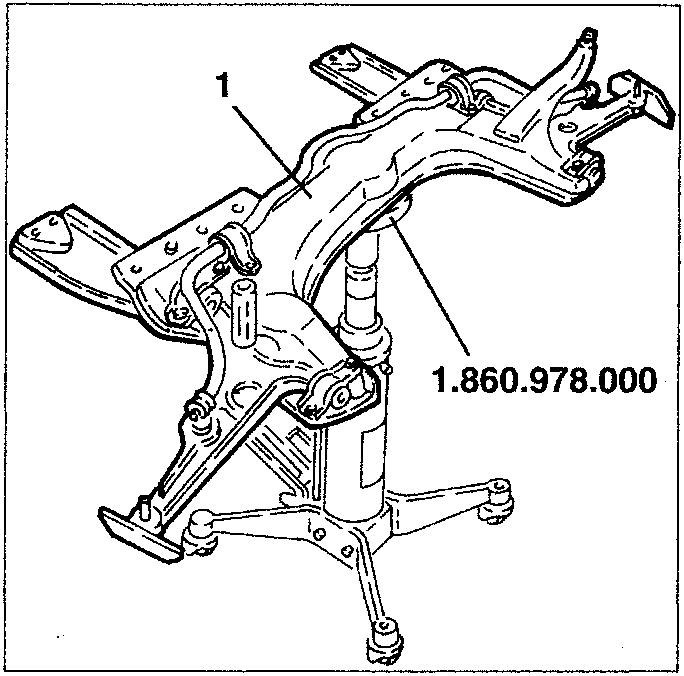

• Using a hydraulic jack support the crossmember using tool no. 1.860.978.000.

1. Slacken the screws and nuts fastening the cross-member, then remove it complete with wishbones, stabiliser bar and reinforcements.

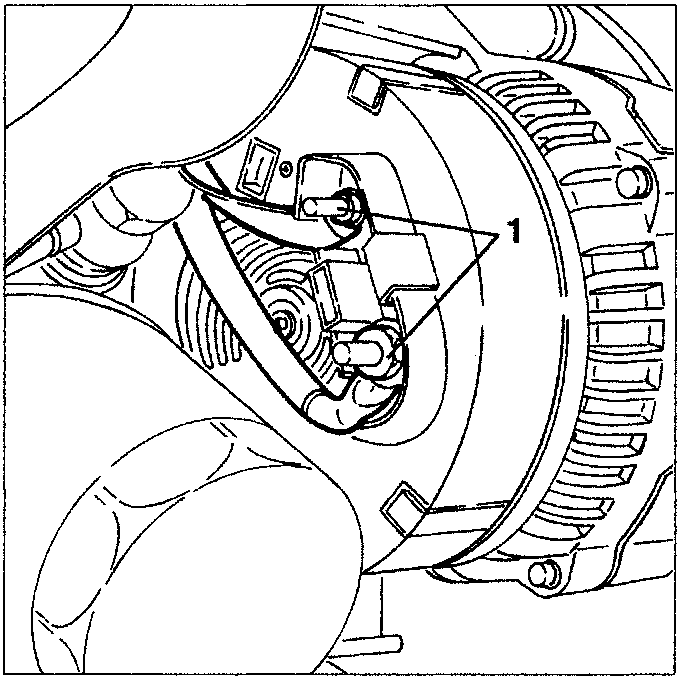

1. 1. Disconnect the electrical connections from the alternator.

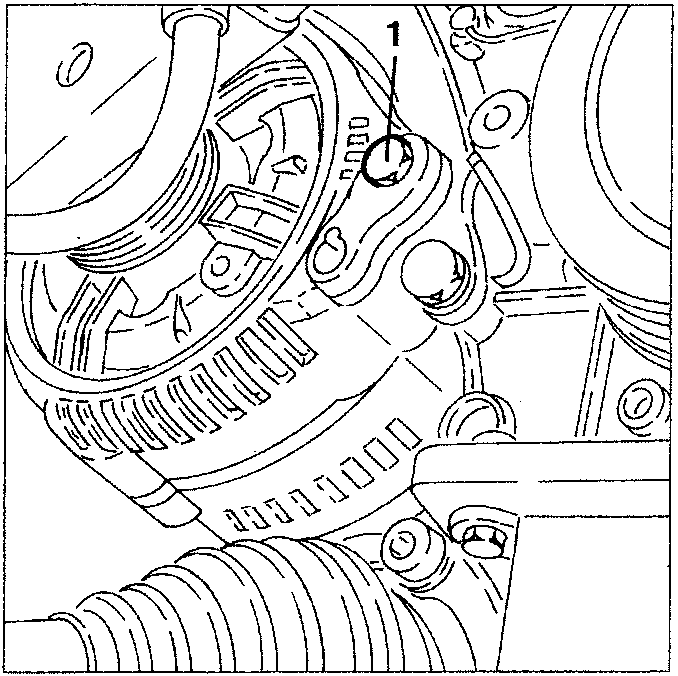

1. Slacken the lower alternator fastening screw.

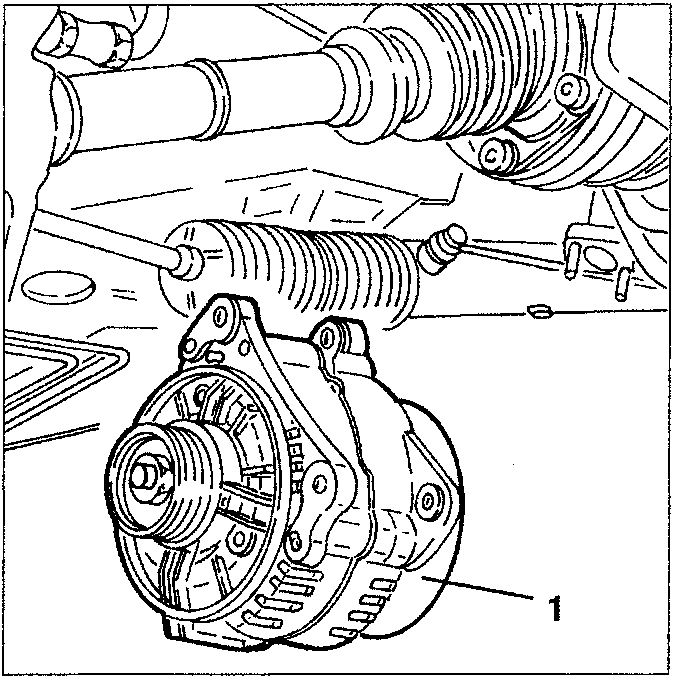

1. Remove the alternator releasing it from its support bracket.
