Removing/refitting (page 2 of 3)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Charging

Electric system diagnosis – 1995-96 cars (incl. V6 Turbo and 24V)Removing/refitting · page 2 of 3

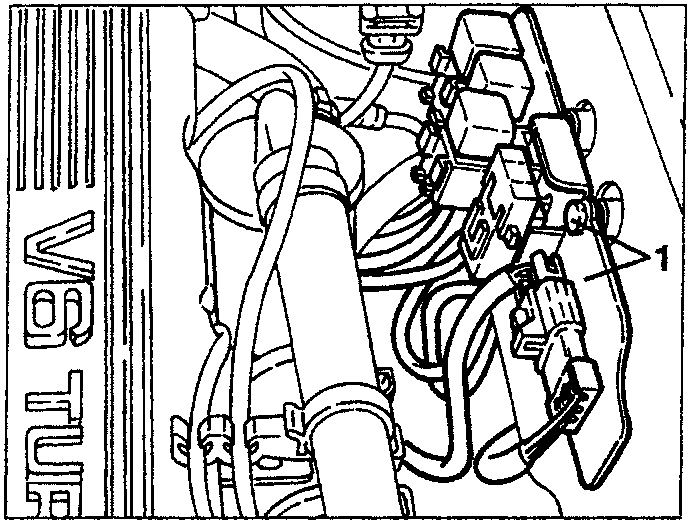

1. Slacken the fastening screws and move aside the relay support bracket and electrical connections.

1. relay support bracket

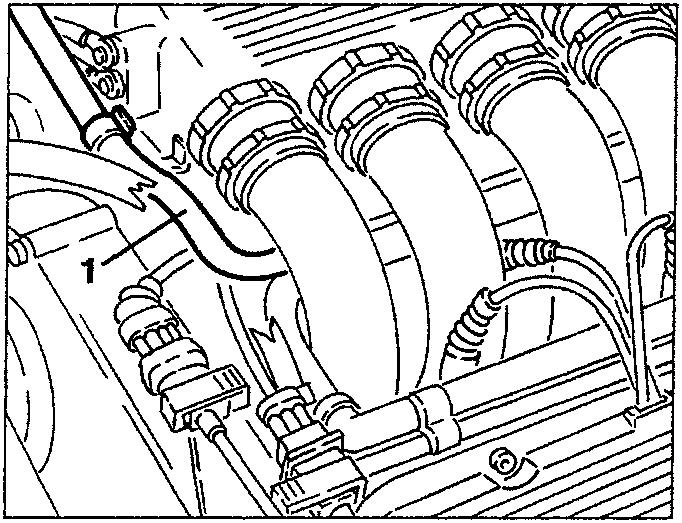

1. Disconnect the fuel vapour recovery pipe from the fuel distributor manifold

1. fuel vapour recovery pipe

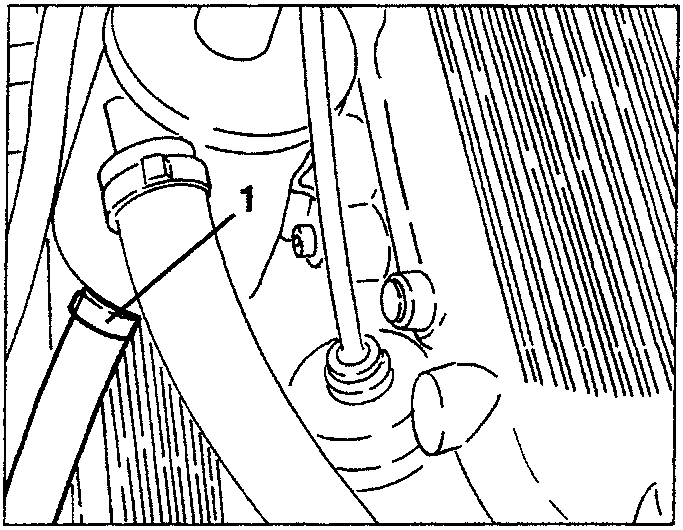

1. Disconnect the oil vapour recovery pipe from the oil vapour separator.

1. oil vapour recovery pipe

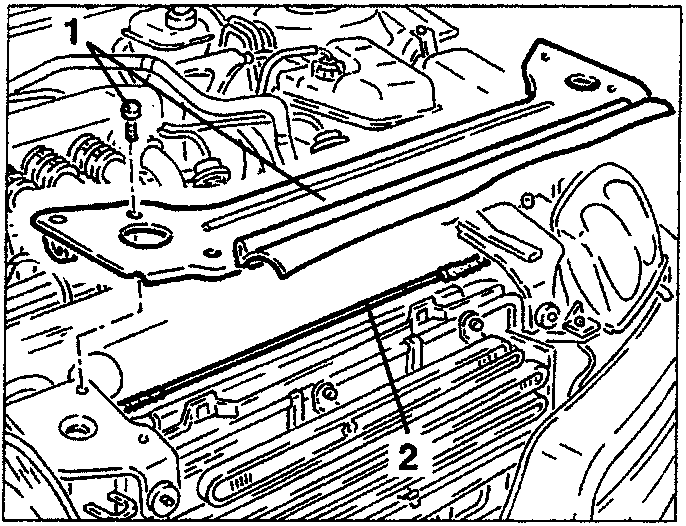

1. Slacken the fastening screws and remove the upper radiator crossmember.

1. upper radiator crossmember
2. bonnet lock opening cable

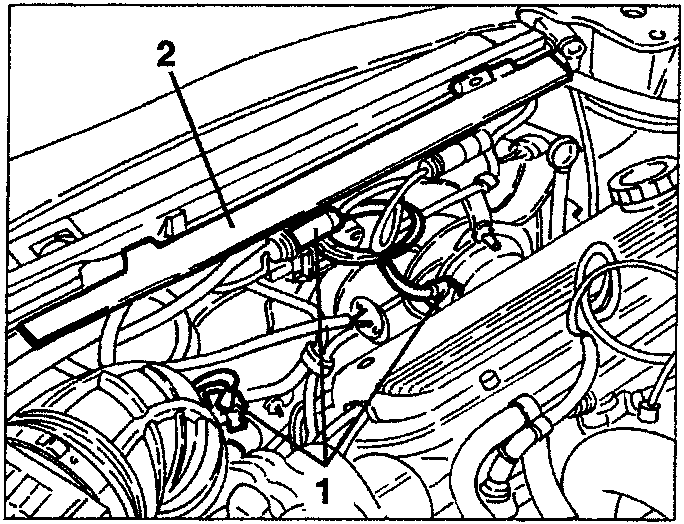

1. Disconnect the electrical connections from the cooling fans.

1. electrical connections
2. cable fairing complete with electric cables

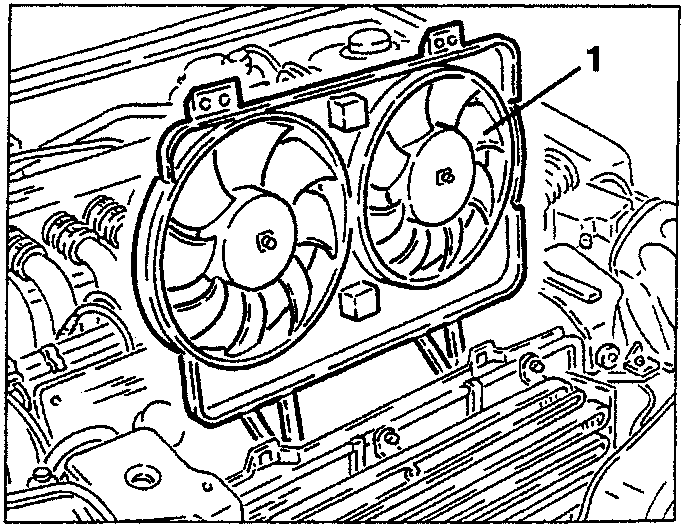

1. Withdraw and remove the cooling fans.

1. cooling fans
