Electric system diagnosis – 1995-96 cars (incl. V6 Turbo and 24V)Removing/refitting · page 3 of 3

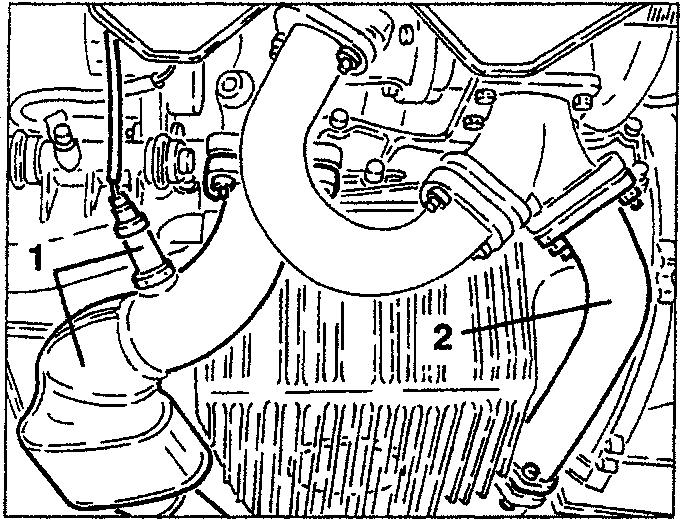

1. Raise the car, slacken the fastenings and remove the front section of the exhaust pipe complete with lambda probe.
2. Slacken the fastenings and remove the exhaust gas delivery pipe from the righthand cylinder head manifold to the turbocharger.

1. lambda probe
2. delivery pipe

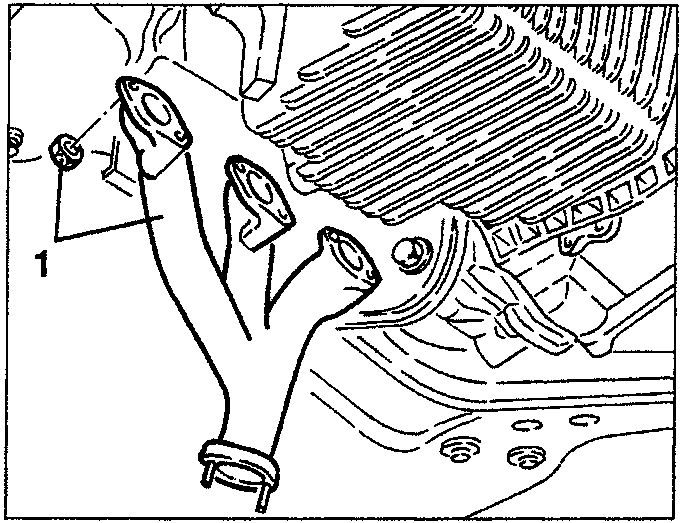

1. Slacken the fastening nuts and remove the right-hand cylinder head exhaust manifold.

1. exhaust manifold

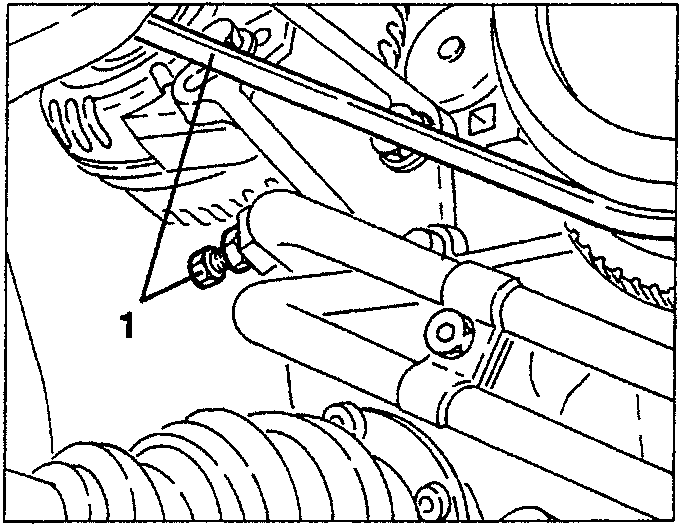

1. Slacken the locknut, then working on the screw of the micrometric belt tensioner slacken the tension of the alternator-water pump drive belt, then remove it.

1. tensioner

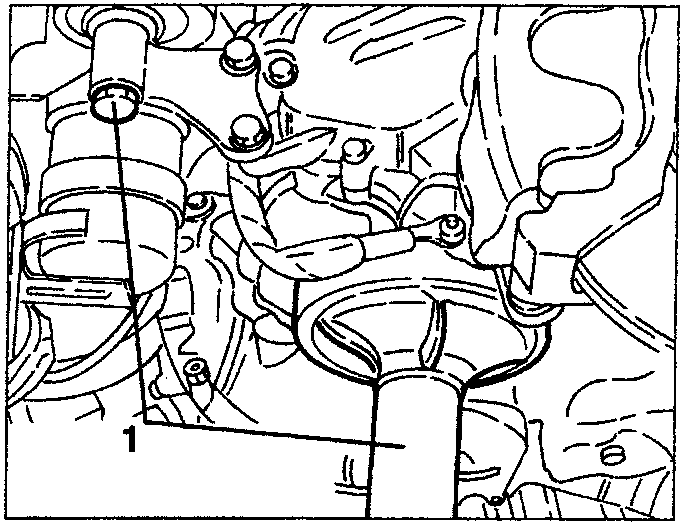

1. Position a hydraulic jack under the gearbox, then slacken the screw fastening the gearbox side power unit support.

• Lower the hydraulic jack just enough to be able to remove the alternator.

1. jack

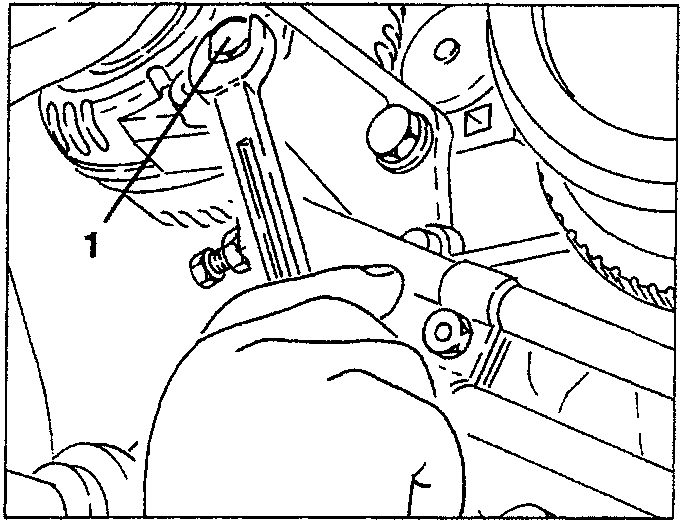

1. Slacken and remove the lower nut fastening the alternator.

1. lower nut

• Disconnect the electrical connections from the alternator.

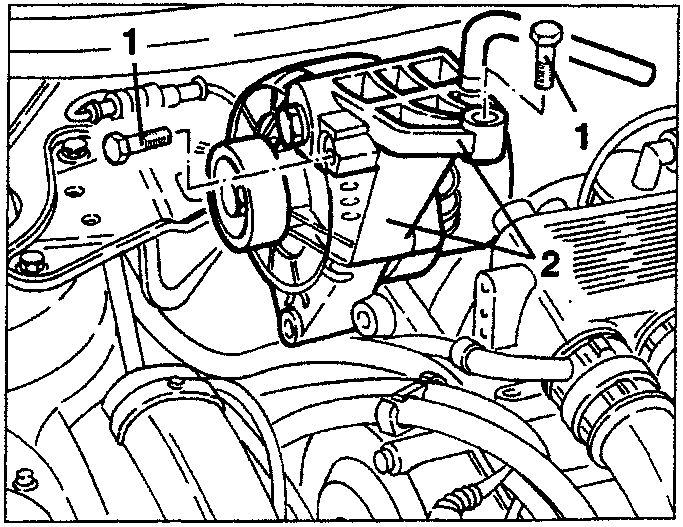

1. Slacken the two screws fastening the upper alternator support bracket
2. Remove the alternator complete with upper support bracket and dis-assemble them on the bench.

1. alternator
2. support bracket
