DATA PLATE

This is located in the engine compartment LH side. It contains the data listed below:

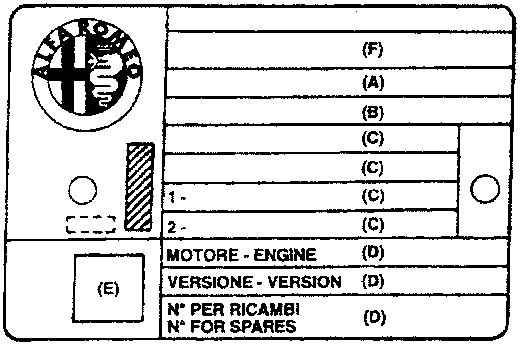

Data plate with Alfa Romeo logo and labeled sections A through F
  • A. Space reserved for details of national homologation
  • B. Space for punching progressive chassis number
  • C. Space available for maximum weights authorised by different national regulations
  • D. Space reserved for version (for example 916C2A) and any additional information
  • E. Space reserved for smoke opacity index
  • F. Space reserved for punching manufacturer's name

PAINT IDENTIFICATION LABEL

This is located on the inner part of the bonnet and carries the data given below:

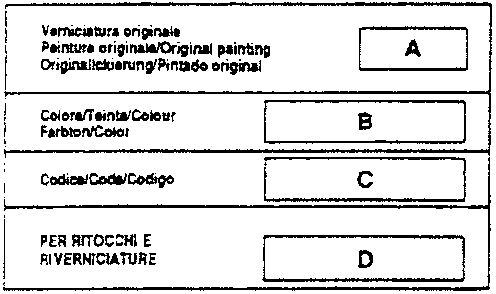

Paint identification label with fields A, B, C, D for paint manufacturer, colour name, colour code, and touch-up code
  • A. Paint manufacturer
  • B. Colour name
  • C. Colour code
  • D. Colour code for touch-up and respray

DIMENSIONS (Spider)

[Unit Fmm]

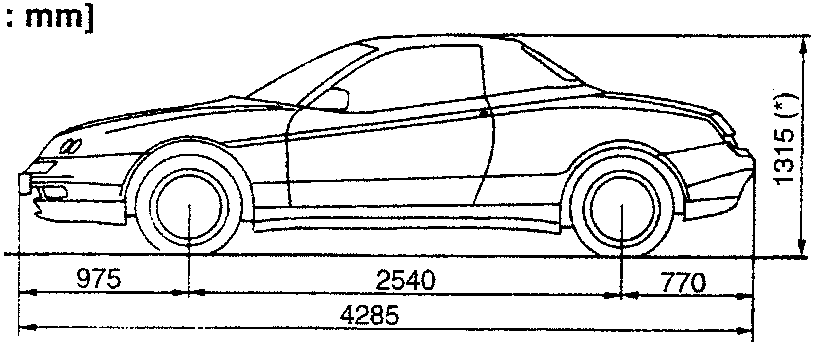

Side profile dimensions of a convertible sports car

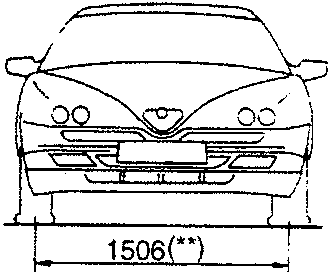

Front view of the car with dimension 1506(**)

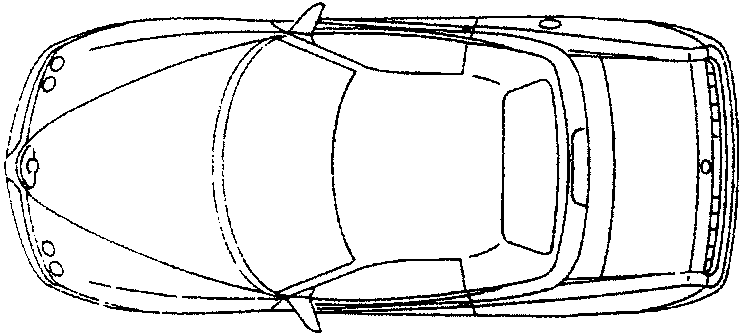

Top view of the car

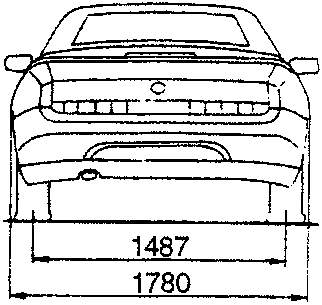

Rear view of the car with dimensions 1487 and 1780

(*) Empty vehicle

(**) With alloy rims
