DIMENSIONS (Gtv)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Vehicle › DIMENSIONS (Gtv)

Right-hand drive variantsDIMENSIONS (Gtv)

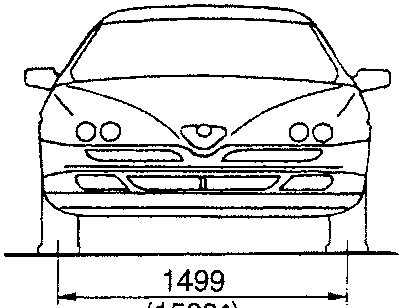

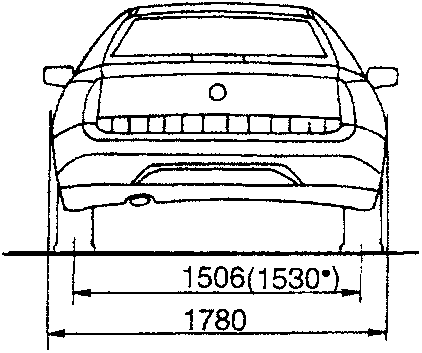

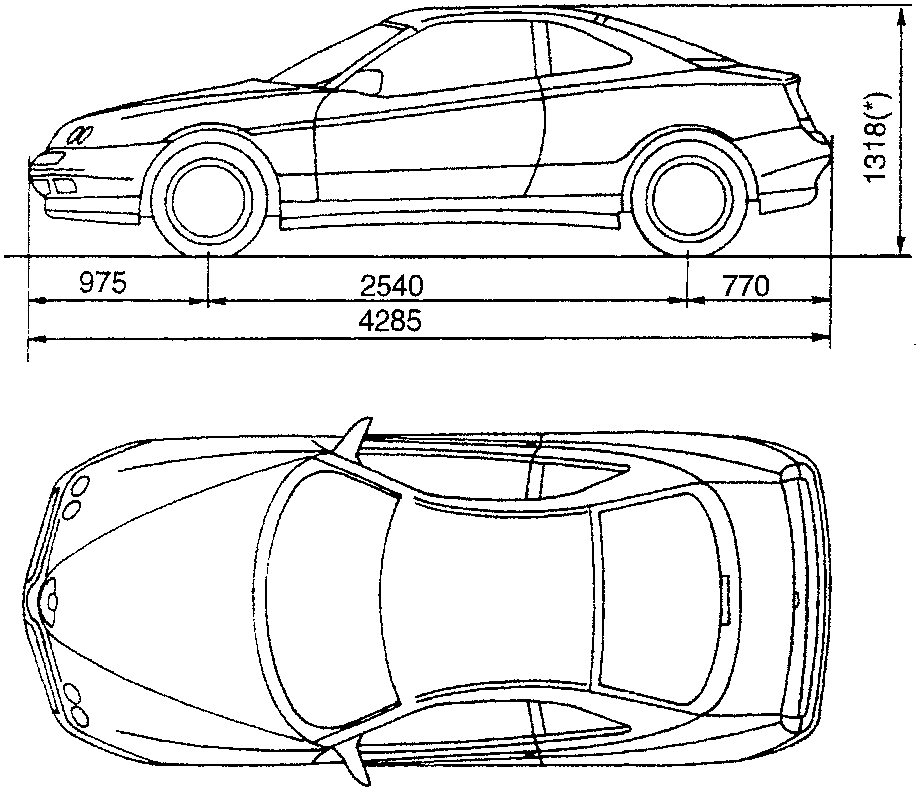

DIMENSIONS (Gtv)

[Unit: mm]

(*) : Empty vehicle

(•) : for 3.0V624v only

WEIGHTS AND LOADS

Unit: kg

Characteristics / Versions		916S2	916C2	916C1
Kerb weight (without driver)		1370	1370	1415
Maximum allowed weight		1630	1780	1820
Useful load		260	440	405
Max. permissible weight per axle	front	974	974	1060
	rear	800	870	870
Towable weight	with braked trailer	1000	1000	1000
	with trailer without brakes	500	500	500
Maximum load on tow hook		50	50	50

21 General
