Model identification
- Make
- Alfa Romeo
- Model
- GTV / Spider GTV and Spider (916) Factory Service Manual
- Year
- 1995–2000
- Section
- Vehicle › Model identification
Right-hand drive variantsModel identification
MODEL IDENTIFICATION
| Trade name | Spider T.Spark 16V | GTV T.Spark 16V | GTV 3.0V6 24v |
|---|---|---|---|
| Trim level | Spider | Coupé | Coupé |
| Version (on identification label) | 916S2 | 916C2 | 916C1 |
| Chassis (in the engine compartment, on the right-hand shock absorber connection support) | - | - | - |
| Progressive chassis number | 6000001 | 6000001 | 6000001 |
| Motor (code) | AR 16201 AR 32301 (●) | AR 16201 AR 32301 (●) | AR 16102 |
| Engine symbol | 1970 T.SPARK 16V | 1970 T.SPARK 16V | 2959 24V |
| Gearbox (code) | C.510.5.21.17 | C.510.5.21.17 | C.530.5.31.09 C.530.6.XX.YY (●) |
(●) from '98 Version

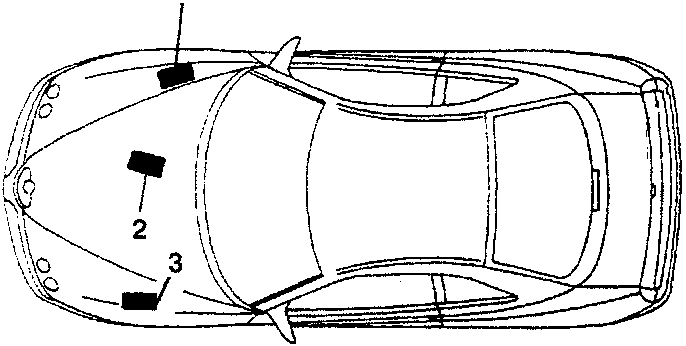

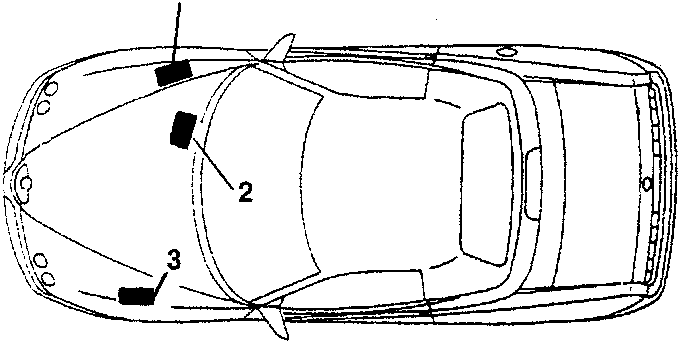

LOCATION OF IDENTIFICATION LABELS
- Data plate
- Body code
- Paint identification label

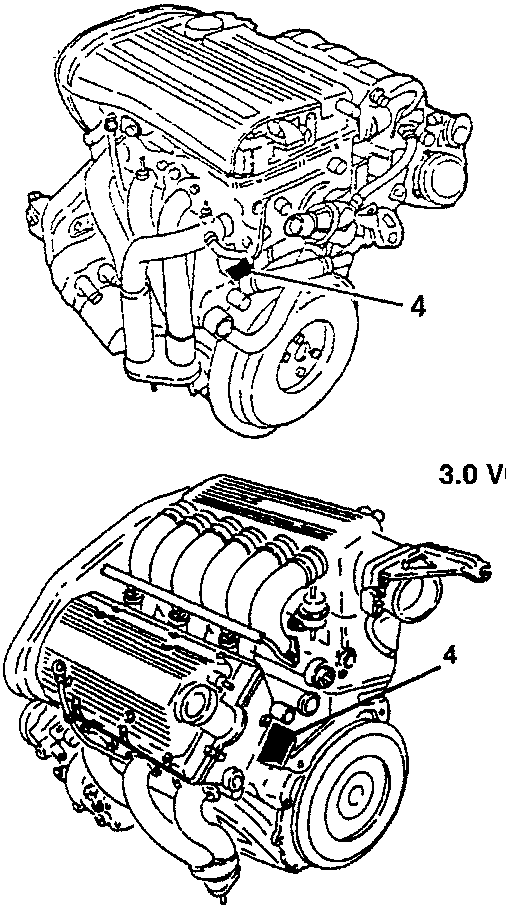

- Engine code
