Workshop Manuals Factory service & repair Alfa Romeo
Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)11 · Variants – 2.0 V6 Turbo (GTV and Spider)
11 · General

Dimensions

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Vehicle › Dimensions
Variants – 2.0 V6 Turbo (GTV and Spider)Dimensions

DIMENSIONS

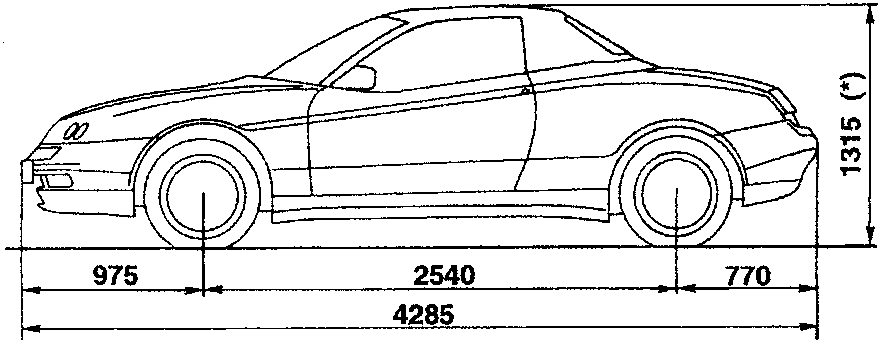

Side view of vehicle with dimensions: front overhang 975, wheelbase 2540, rear overhang 770, total length 4285, height 1315

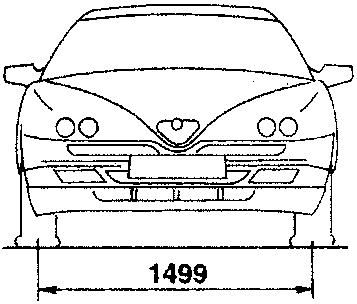

Front view of vehicle with width 1499

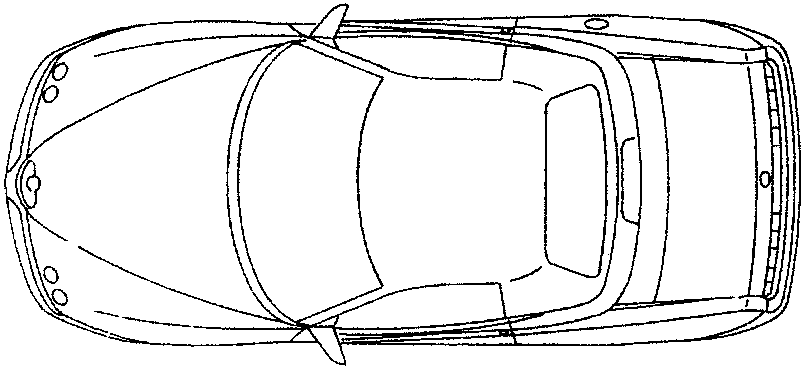

Top view of vehicle

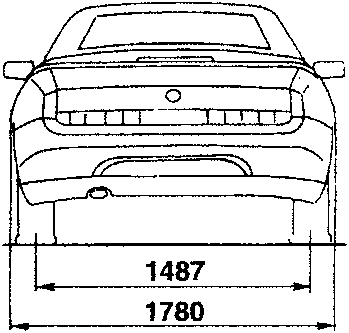

Rear view of vehicle with width 1487, overall rear width 1780

(*) : Unladen vehicle

WEIGHTS AND LOADS

Version Unit: kg
Features 916S2A
Kerb weight (without driver) 1430
Maximum admitted load 1680
Load 260
Maximum weight allowed on each axle front 1060
rear 870
Towable weight trailer with brakes 1000
trailer without brakes 500
Maximum load on tow hitch 50
