Wheels and tyres

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Vehicle › Wheels and tyres

Variants – 2.0 V6 Turbo (GTV and Spider)Wheels and tyres

WHEELS AND TYRES

Features / Version			916S2A
Rim size			6.5J x 16"
Tyre size			205/50 R16 87Y
Tyre pressure (cold)		bar (kg/cm²)	front 2.7 rear 2.5
Space saver spare wheel	Rim size		4J x 15" C26
	Tyre size		T125/80 R15 96M
	Tyre pressure	bar (kg/cm²)	4.2

IMPORTANT:
Increase pressure by 0.3 bar in the event of constant driving at top speed.

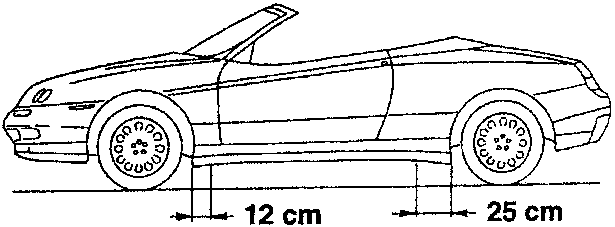

JACKING POINTS

With arm hoist or shop jack.

• Position the arms or the jack in the areas shown.

IMPORTANT:
Be very careful when positioning the arms or the jack in the front jacking points to avoid squeezing the brake and fuel lines.

11 General
