Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)11 · Variants – 2.0 V6 Turbo (GTV and Spider)
11 · General

Model identification

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Vehicle › Model identification
Variants – 2.0 V6 Turbo (GTV and Spider)Model identification

MODEL IDENTIFICATION

Brand nameSpider 2.0 V6 TB
VersionSpider
Version (on identification plate)916 S2A
Chassis (in engine compartment, on upper right-hand shock absorber bracket)-
Progressive chassis number6000001
Engine (code)AR 16202
Engine symbol1996 TB
Gearbox (code)C.503.5.29.21

IDENTIFICATION PLATE LOCATION

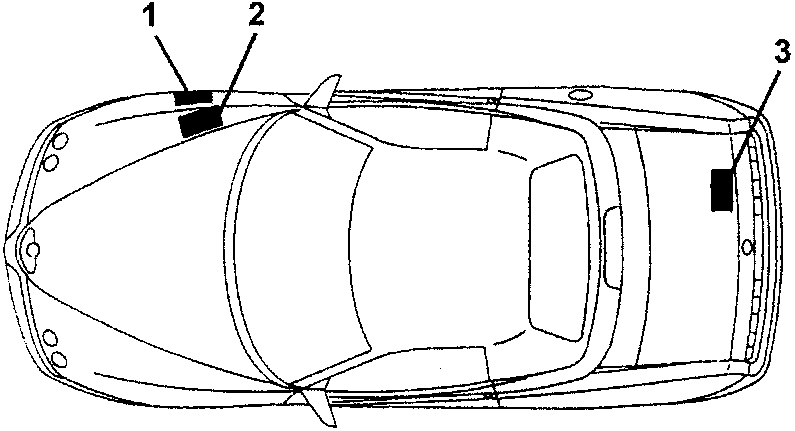

Top view of car showing identification plate locations
  1. Identification data plate
  2. Chassis marking
  3. Paintwork identification plate
  4. Engine marking

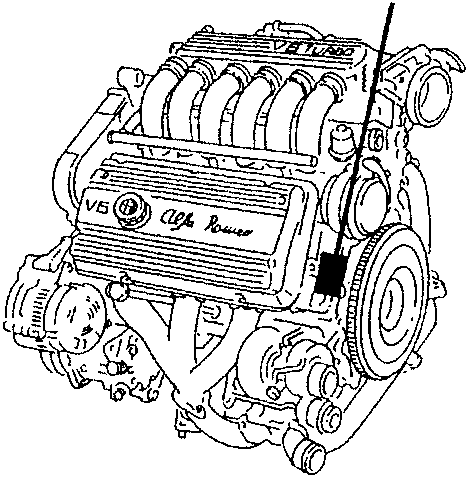

Engine view showing identification plate location
