Flux test (page 2 of 2)
- Make
- Alfa Romeo
- Model
- GTV / Spider GTV and Spider (916) Factory Service Manual
- Year
- 1995–2000
- Section
- Air supply system
Variants – 3.0 V6 24VFlux test · page 2 of 2

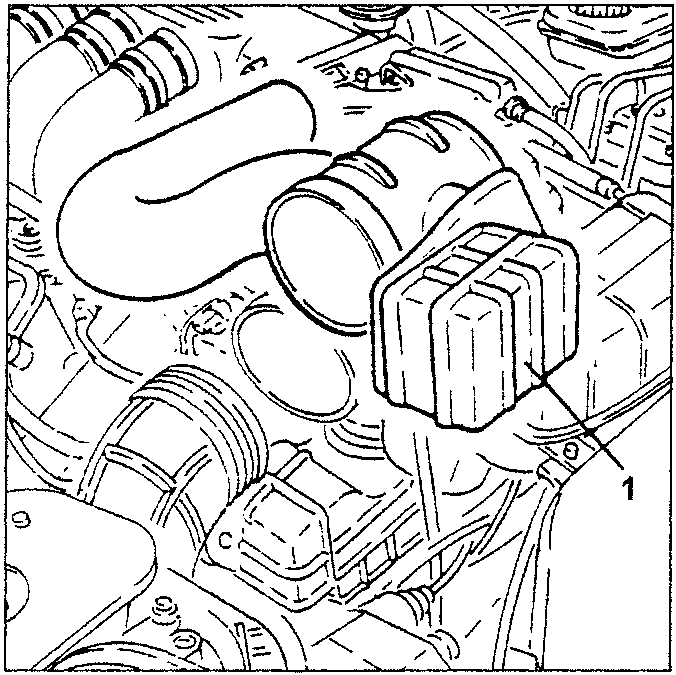

- Remove the upper resonator.

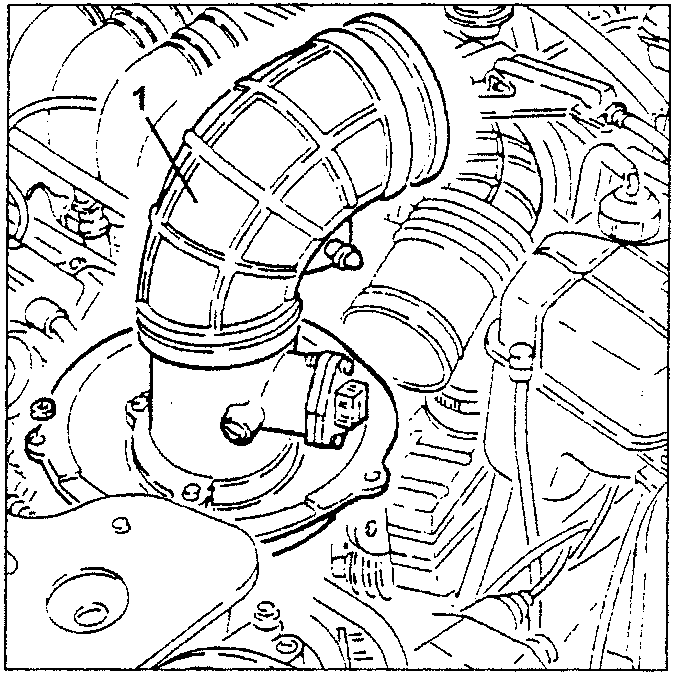

- Loosen the three fastening screws and remove the air cleaner with hot film flow meter and corrugated sleeve elbow. Separate at the bench.

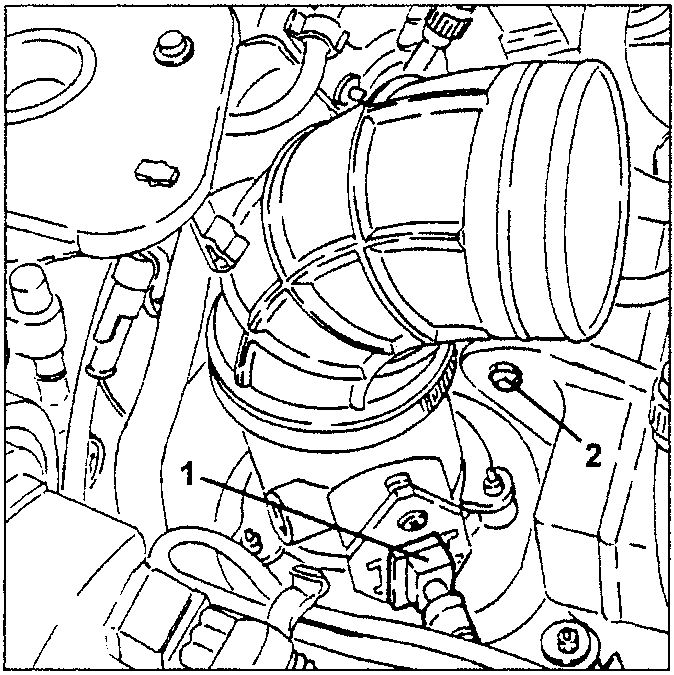

- Disconnect the hot film flow meter electrical connection.
2. Remove the corrugated sleeve elbow fastening button from the intermediate resonator.
