Intake manifold (page 3 of 3)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Air supply system

Variants – 3.0 V6 24VIntake manifold · page 3 of 3

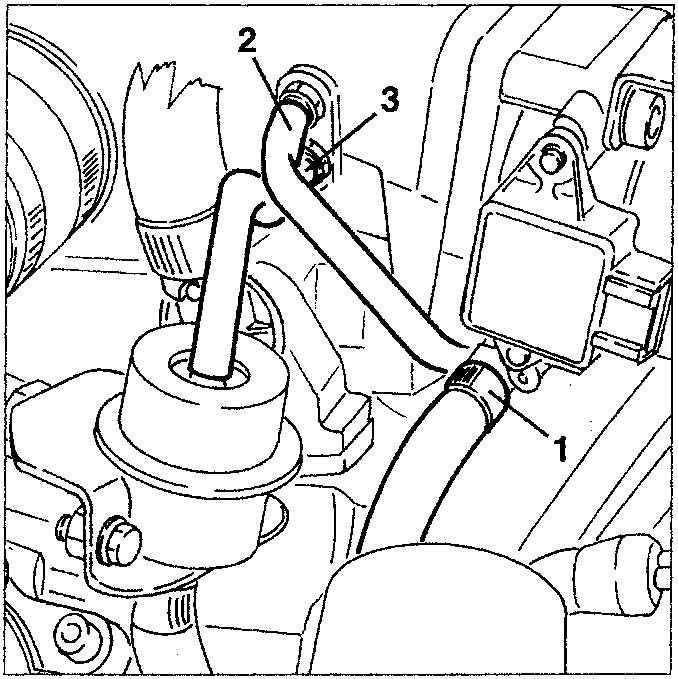

1. Disconnect the coolant inlet pipe from the throttle body.
2. Disconnect the vacuum takeoff pipe for the E.G.R. modulation solenoid valve from the intake box.
3. Disconnect the fuel pressure regulator vacuum takeoff pipe from the intake box.

1. Clamp
2. Screw
3. Part

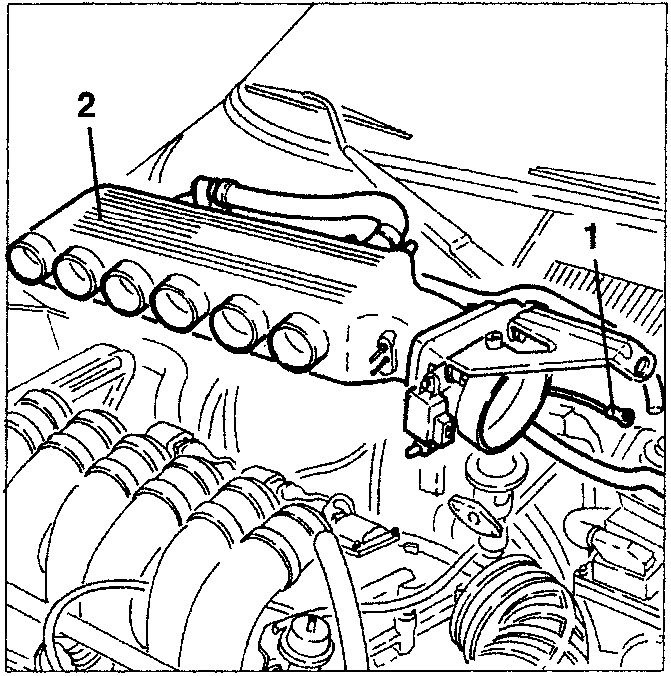

1. Disconnect the earth cable (rear) from the intake box.
2. Slacken the two fastening screws and remove the intake box complete.

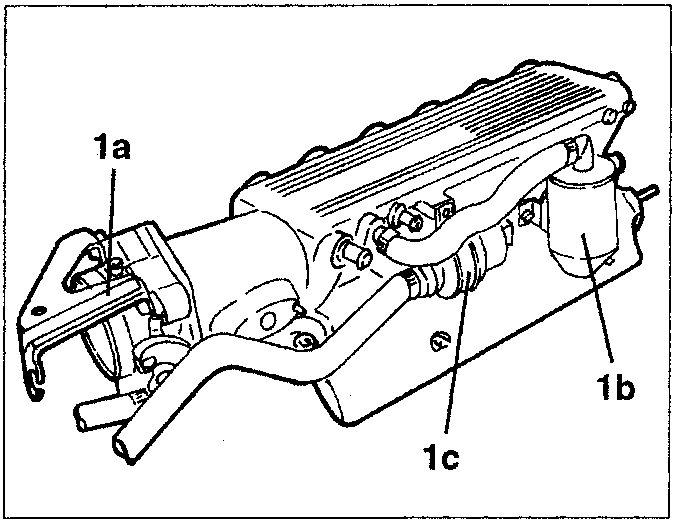

1. If necessary on the bench separate the throttle body (1a), oil vapour separator (1b) and the constant idle speed device (1c) from the intake box.

1. Throttle body
2. Oil vapour separator
3. Constant idle speed device

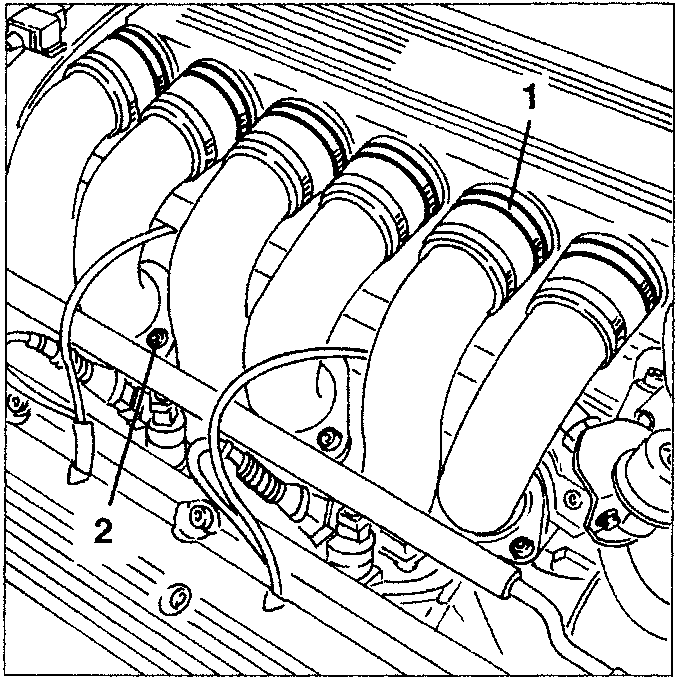

1. Slacken the clamps fastening the air supply ducts to the intake box.
2. Slacken the screws fastening the supply ducts to the cylinder heads.

1. Air supply duct
2. Screw
