Variants – 3.0 V6 24VRemoval/refitting · page 2 of 3

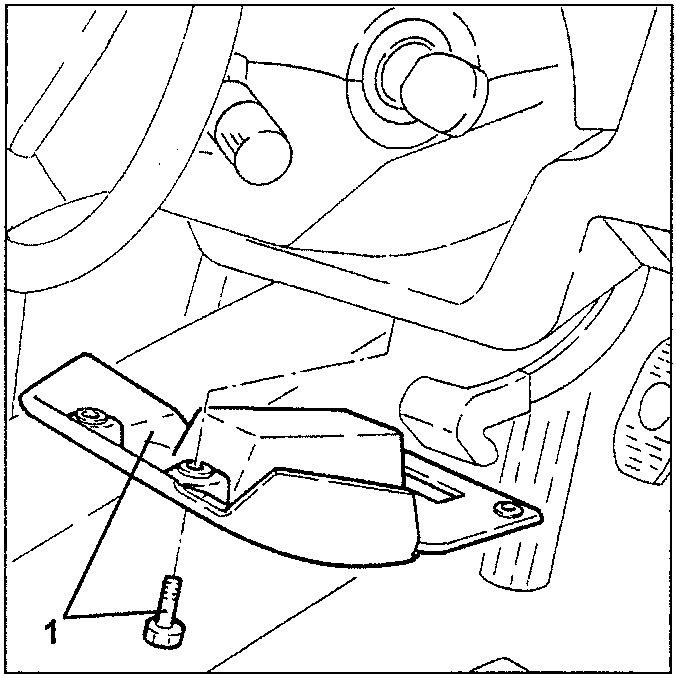

  1. Remove the fastening screws and remove the guard under the dashboard.
Diagram showing removal of guard under dashboard with screw labeled 1

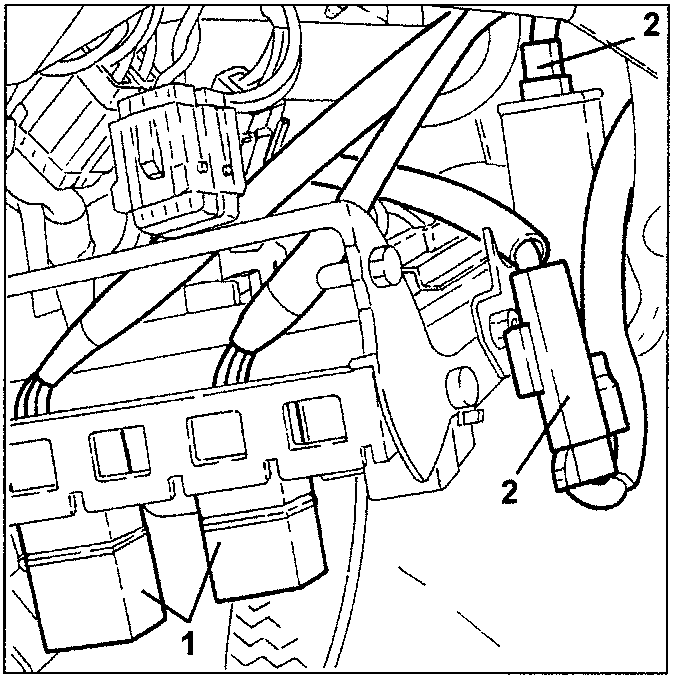

  1. Disconnect the two relays.
  2. Disconnect the valve electrical connections.
Diagram showing disconnection of relays and valve electrical connections, labeled 1 and 2

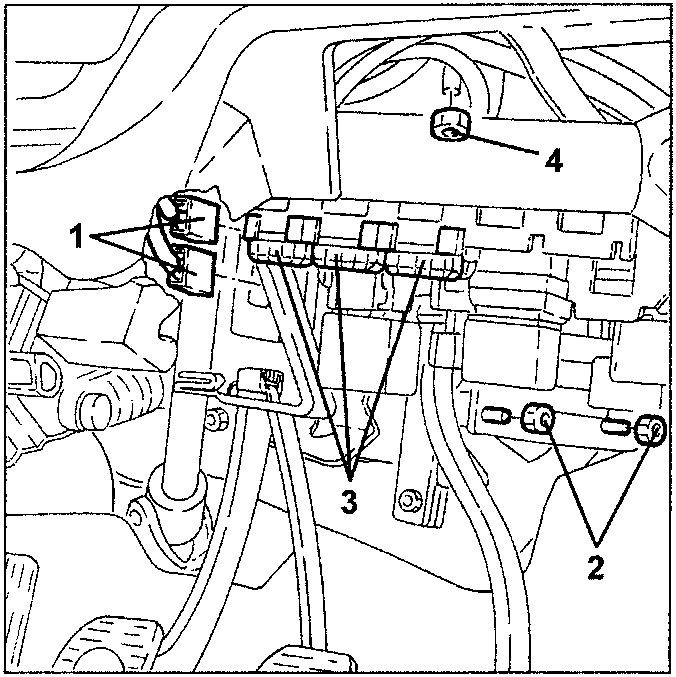

  1. Disconnect the Alfa Romeo CODE ECU electrical connections.
  2. Loosen the bolts fastening the valve bracket to the brake booster bracket.
  3. Remove the indicated relays to reach the nut fastening the valve bracket to the dashboard.
  4. Loosen the nut fastening the valve bracket to the dashboard.
Diagram showing disconnection of ECU connections and removal of relays, labeled 1, 2, 3, and 4

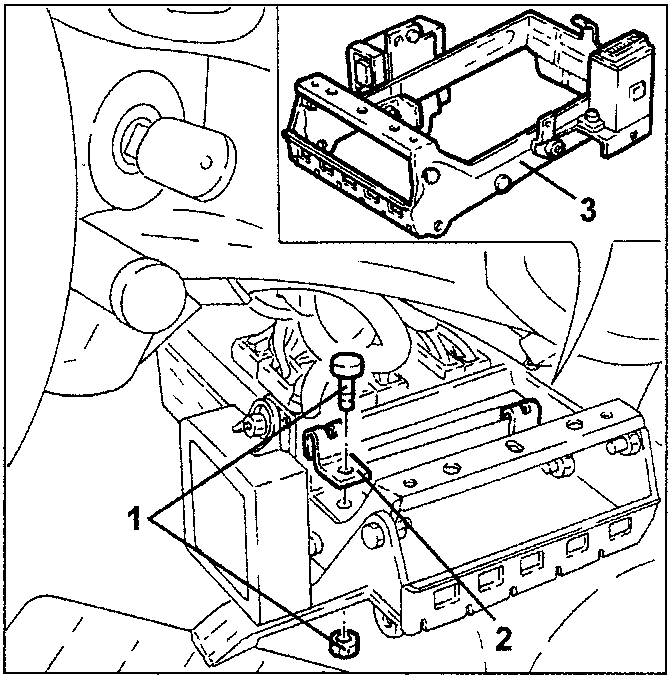

  1. Loosen the bolts fastening the valves to the bracket.
  2. Remove the clips.
  3. Remove the valve bracket.
Diagram showing loosening of bolts and removal of valve bracket, labeled 1, 2, and 3
