Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)12 · Variants – 3.0 V6 24V
12 · General

Removal/refitting (page 3 of 3)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Electrical components
Variants – 3.0 V6 24VRemoval/refitting · page 3 of 3
  1. Disconnect the brake pedal switch electrical connection.
  2. Remove the brake pedal switch.

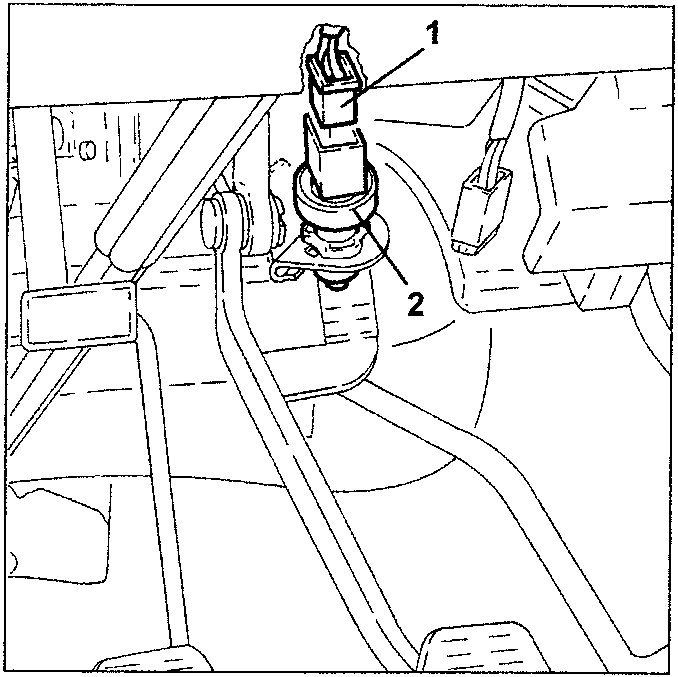

Diagram showing brake pedal switch with parts labeled 1 and 2
  1. Brake pedal switch
  2. Electrical connection

NOTE: After refitting the accelerator pedal potentiometer, calibrate as shown below.

  • Make sure the ignition key is at STOP.
  • Connect tool no. 1.806.365.000 to the diagnostic socket and turn the knob to 3.
  • Connect Examiner.
  • Turn the ignition key to MAR.
  • With Examiner, go to "Parameters".
  • Press "Select" and select the parameter "Accelerator position track 1".
  • Check whether the potentiometer calibration values correspond to prescriptions: idling (accelerator pedal released), 8% ± 1%.
  • maximum opening (accelerator pedal fully pressed), 64,3% ± 1%.
  • Remove the diagnostic tool.
  1. Disconnect the accelerator pedal potentiometer electrical connection.
  • Fasten the valves suitably to the side.
  • Disconnect the accelerator pedal potentiometer from the tie-rod.
  1. Loosen the fastening screws and remove the accelerator pedal.

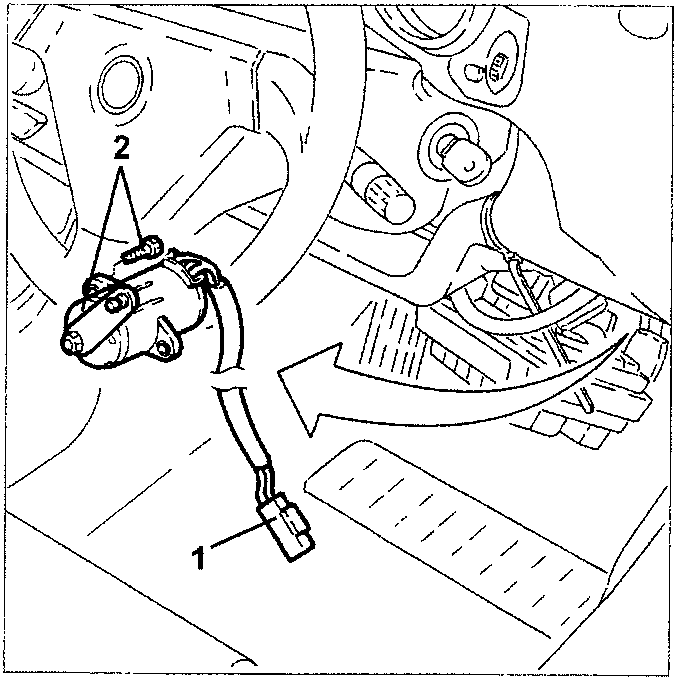

Diagram showing accelerator pedal with parts labeled 1 and 2
  1. Electrical connection
  2. Accelerator pedal potentiometer
