Removal/refitting (page 2 of 2)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Fuel feed

Variants – 3.0 V6 24VRemoval/refitting · page 2 of 2

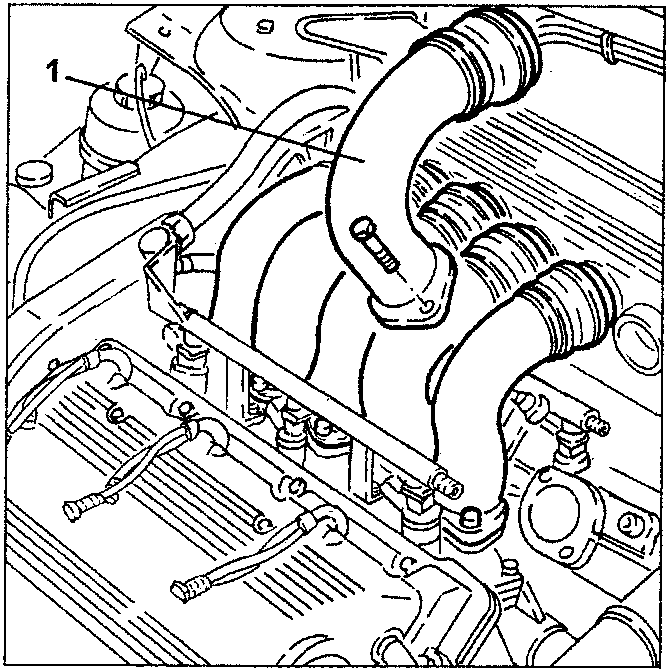

1. Loosen the clips and the screws. Then remove the intake air ducts.

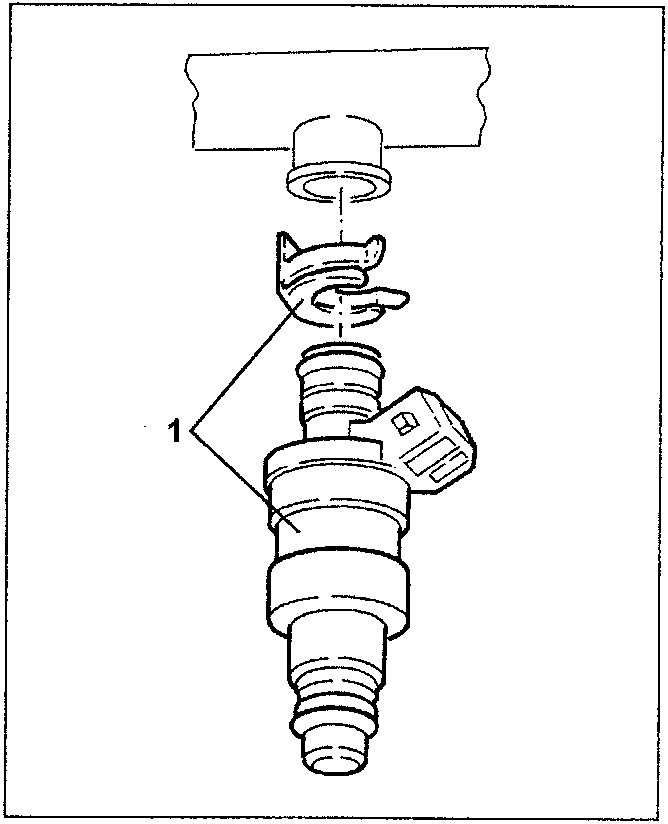

1. At the bench, remove the retainers and remove the injectors from the distribution manifold.

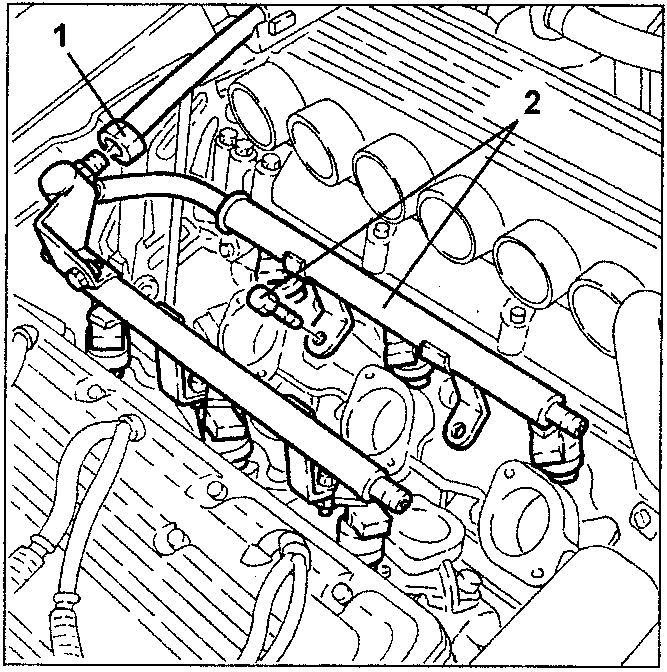

1. Disconnect the fuel delivery pipe from the distribution manifold.
2. Loosen the screws and remove the distribution manifold and injectors.
