REFITTING PRECAUTIONS

  1. Fit cylinder liner retainer tools no. 1.820.279.000 as shown in the figure.

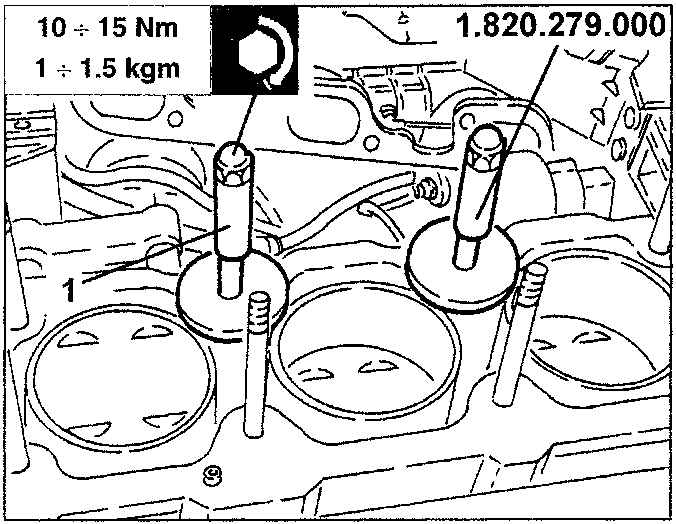

Cylinder liner retainer tools fitted with torque specifications

10 ÷ 15 Nm
1 ÷ 1.5 kgm

Cylinder liner retainers no. 1.825.040.000 fitted in engine block
  • Remove the previously fitted cylinder liner retainers no. 1.820.279.000.
  • Refit the right-hand cylinder head with a new seal.
  • Lubricate threading, nuts and washers with engine oil and torque as shown below in the order shown in the figure.

NOTE: Use the tool and gauge no. 1.860.942.000 for angle torque.

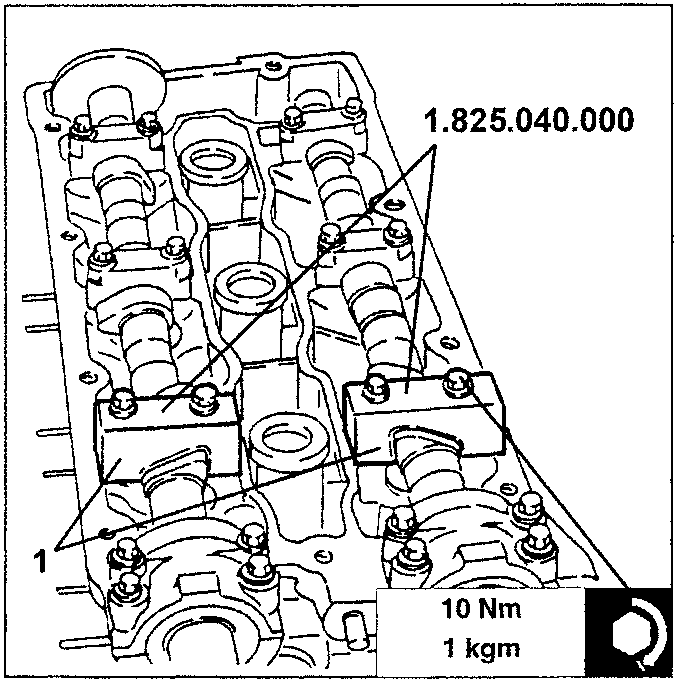

Templates no. 1.825.040.000 fitted in place of camshaft bearings B and G

10 Nm
1 kgm

  1. Fit templates no. 1.825.040.000 in the position printed on the templates in the place of left-hand cylinder head camshaft bearings 7 and 4.
Tightening procedure
Tighten all nuts at: 24 ÷ 26 Nm
2.5 ÷ 2.7 kgm
Complete torque with additional: 240° ± 2°

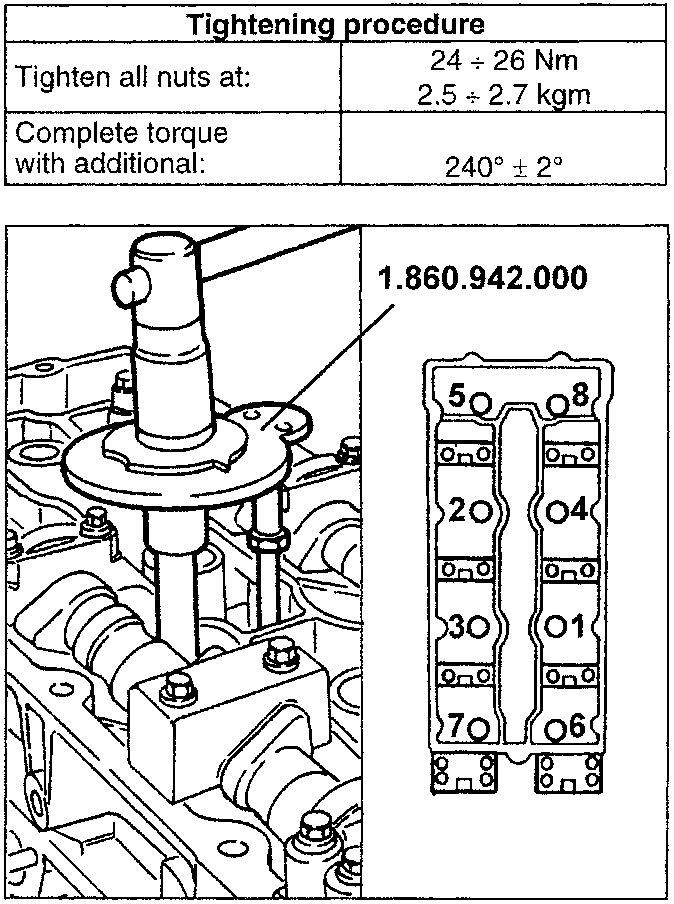

Tightening tool and gauge no. 1.860.942.000 with torque sequence diagram
