CYLINDER HEAD

NOTE: Only the right-hand cylinder head can be removed in the vehicle as shown below. Remove the engine assembly to remove the left-hand cylinder head (see specific paragraph).

REMOVAL/REFITTING RIGHT-HAND CYLINDER HEAD

  • Position the vehicle on a shop jack.
    - Make sure the ignition key is at "STOP" and disconnect the (-) battery terminal.
  1. Remove the front right-hand wheel.
  2. Loosen the screws and remove the two engine compartment side guards.

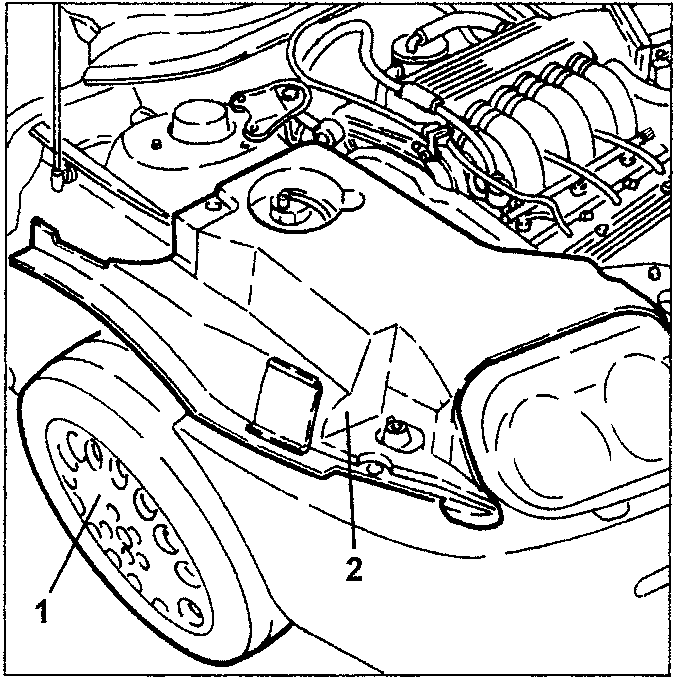

Engine cover removal with bolt locations indicated

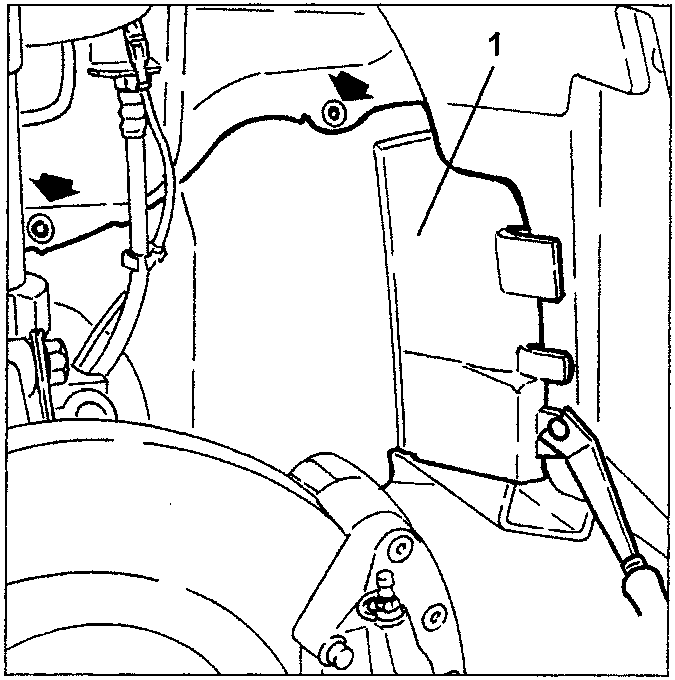

Diagram showing engine compartment with labeled parts 1 and 2.
  1. Loosen the two fastening screws, remove the plastic button and remove the dust guard from the front right-hand wheel compartment.

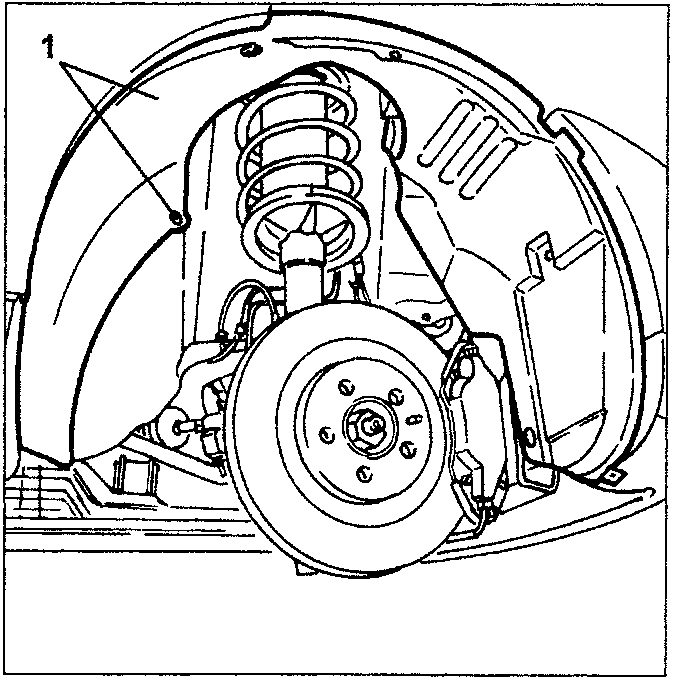

Diagram showing front right-hand wheelhouse with labeled part 1.
  1. Loosen the fasteners and remove the front right-hand wheelhouse.
    - Lift the vehicle.
