Variants – 3.0 V6 24VCylinder head · page 9 of 11

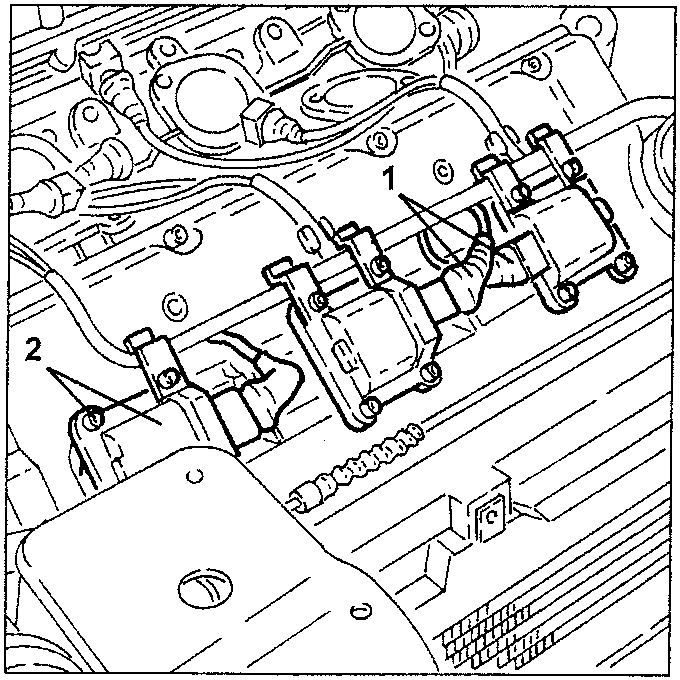

1. Disconnect the electrical connections from the left-hand cylinder head ignition coils.
2. Loosen the fastening screws and remove the left-hand cylinder head ignition coils.

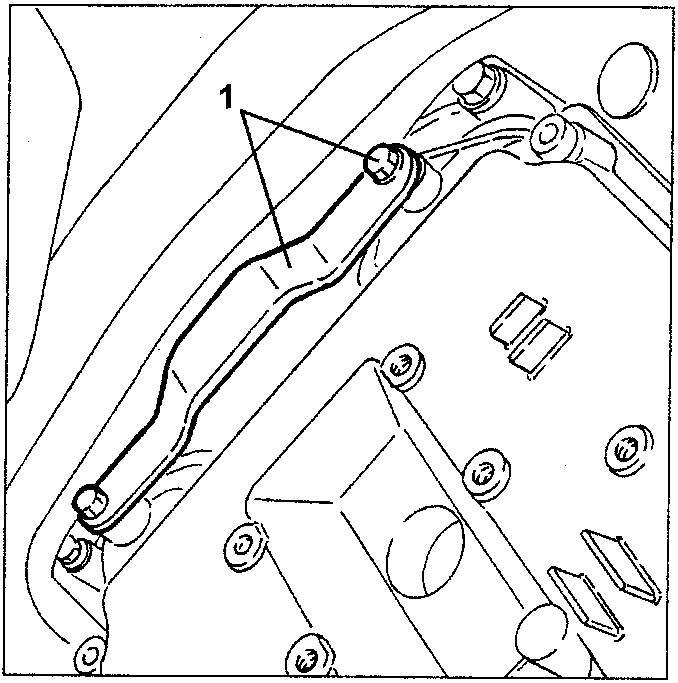

1. Loosen the fastening screws and remove the bracket and threaded nut fastening the upper timing belt guard from the left-hand cylinder head.

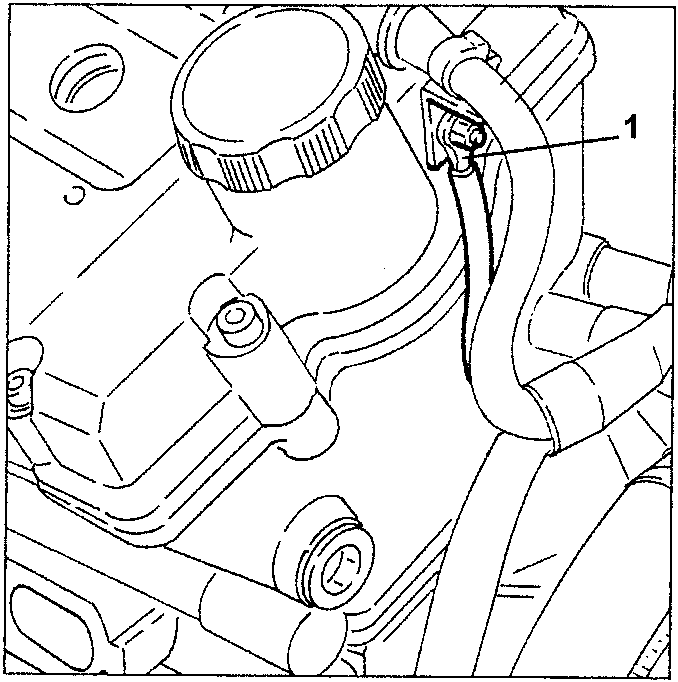

1. Disconnect the earth wire from the left-hand cylinder head and move the respective wiring aside.

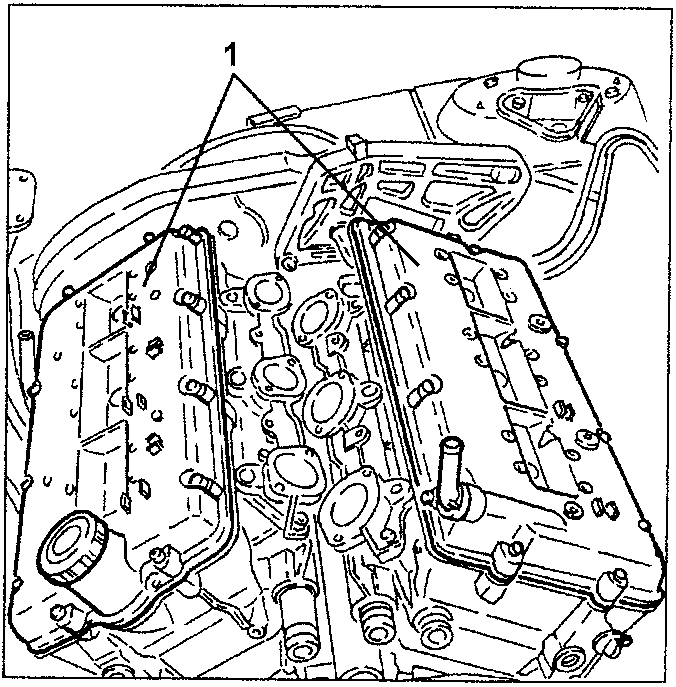

1. Loosen the fastening screws and remove the cylinder head covers and respective seals.
