Variants – 3.0 V6 24VCylinder head · page 3 of 11

• Lower the vehicle.

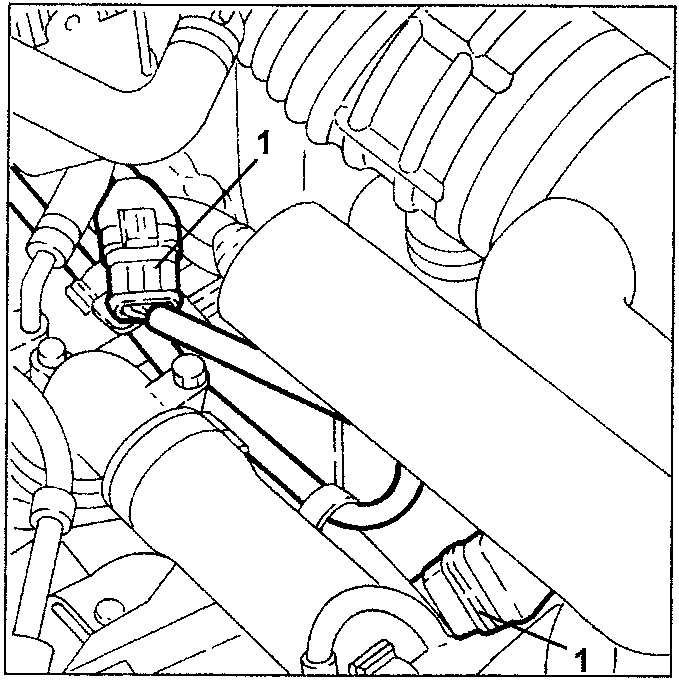

1. Disconnect the lambda sensor electrical connections.

1. lambda sensor

• Lift the vehicle.

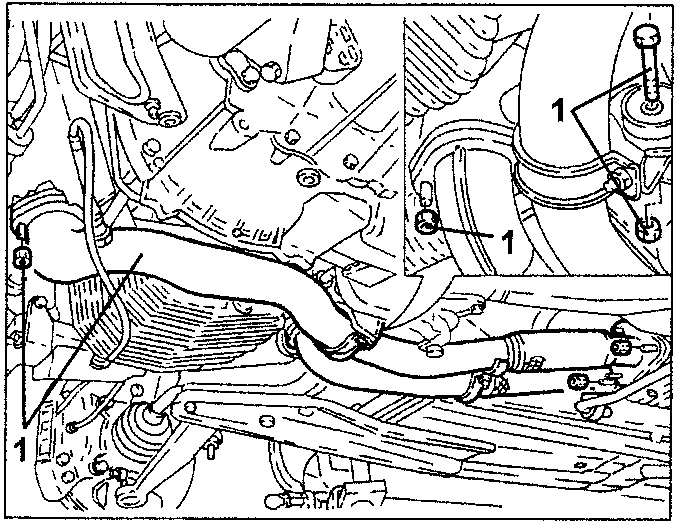

1. Loosen the fasteners and remove the front exhaust pipe section.

1. front exhaust pipe section

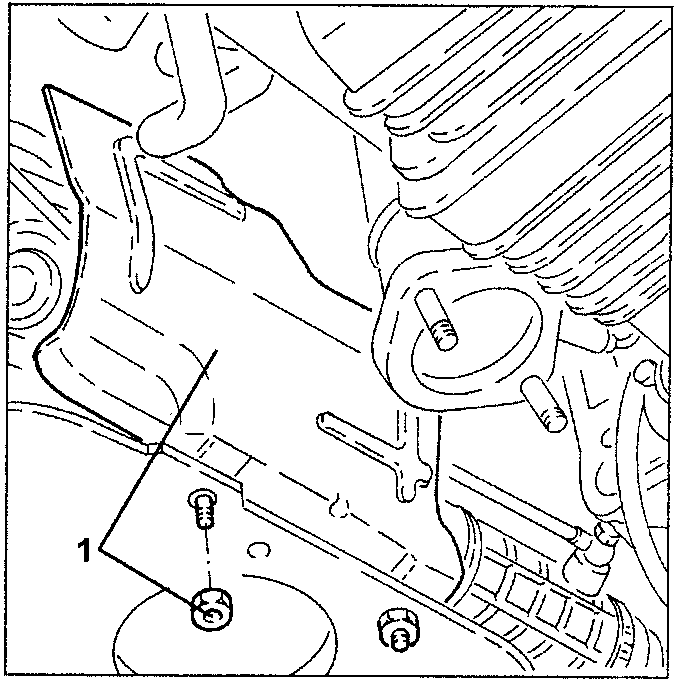

1. Loosen the nuts and remove the power steering unit firewall.

1. power steering unit firewall

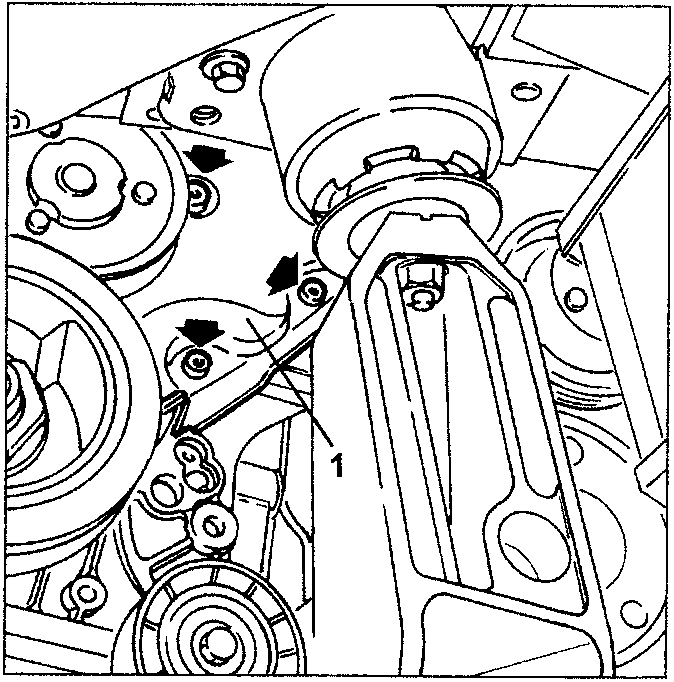

1. Loosen the fastening screws and remove the lower left-hand timing belt guard.

1. lower left-hand timing belt guard
