Variants – 3.0 V6 24VCylinder head · page 7 of 11

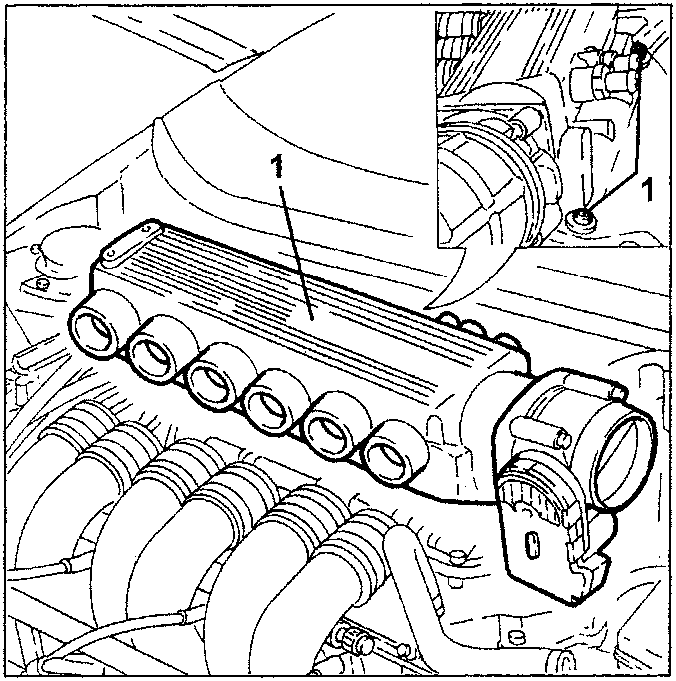

  1. Loosen the fastening screws and remove the intake manifold.
intake manifold with screws and pipes

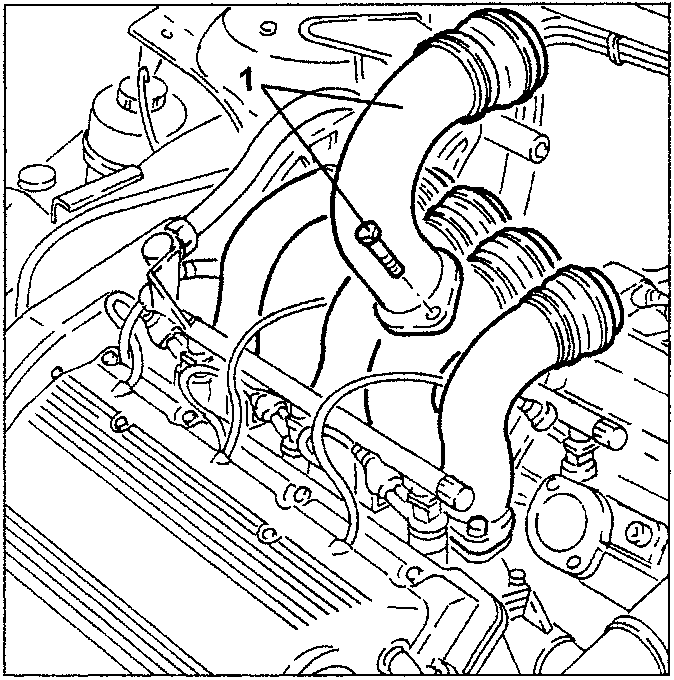

  1. Remove the previously loosen screws and remove the intake ducts.
    - Refit the respective seals.
intake ducts with screws and seals

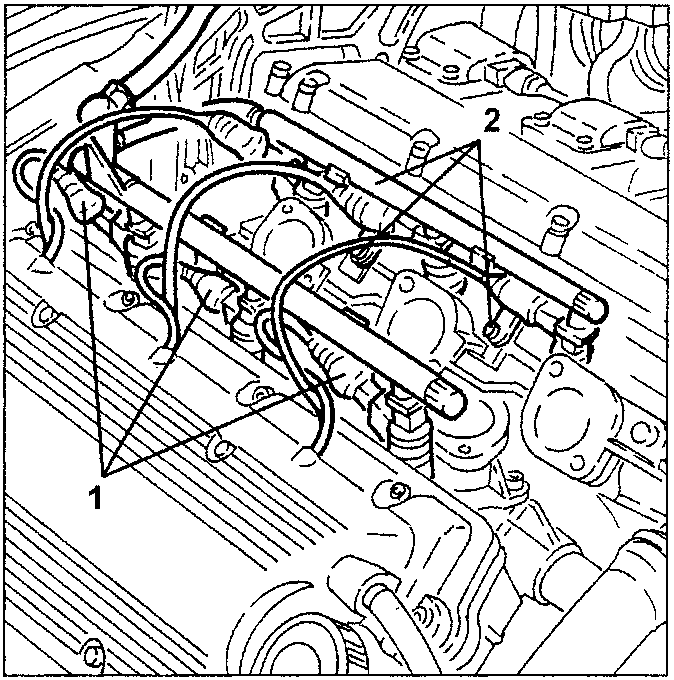

  1. Disconnect the injector electrical connections.
    2. Loosen the fastening screws and move the fuel distribution manifold with injectors aside.
fuel distribution manifold with injectors

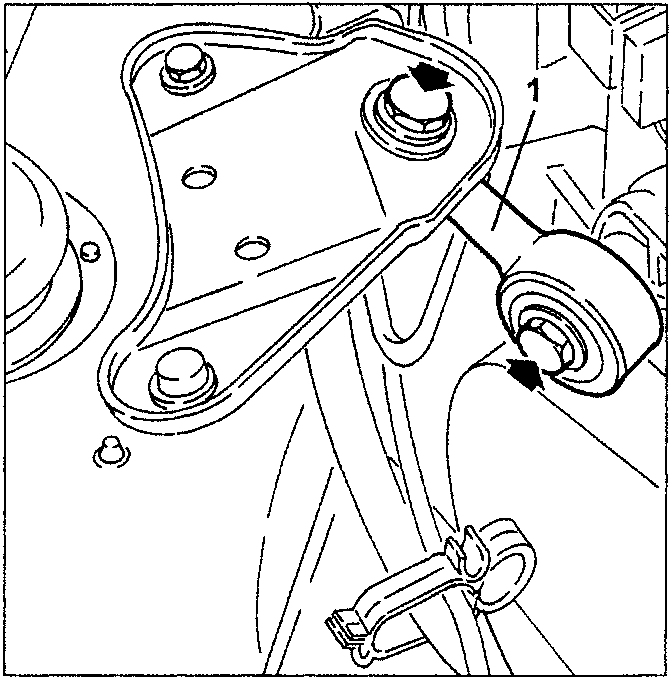

  1. Loosen the fastening screws and remove the engine assembly tie-rod.
engine assembly tie-rod with bolts
