Cylinder head (page 4 of 11)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Operations in vehicle

Variants – 3.0 V6 24VCylinder head · page 4 of 11

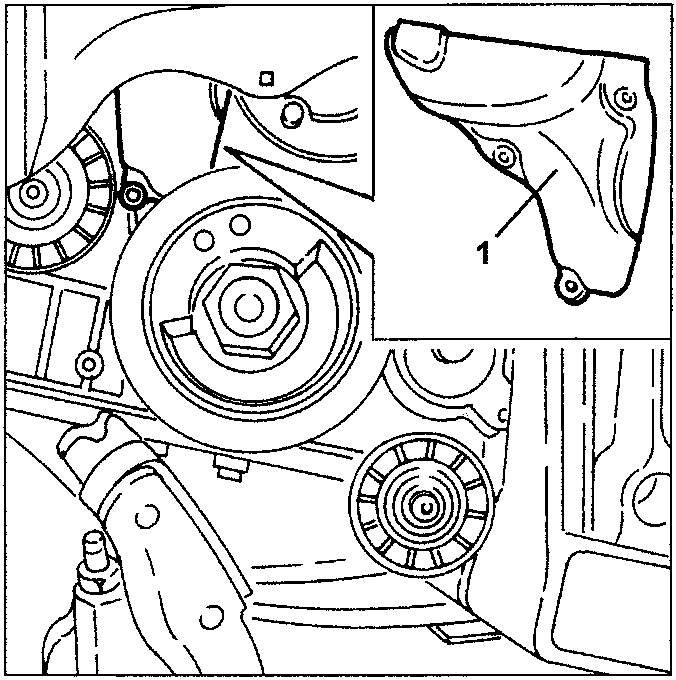

1. Loosen the fastening screws and remove the lower right-hand timing belt guard.

• Lower the vehicle.

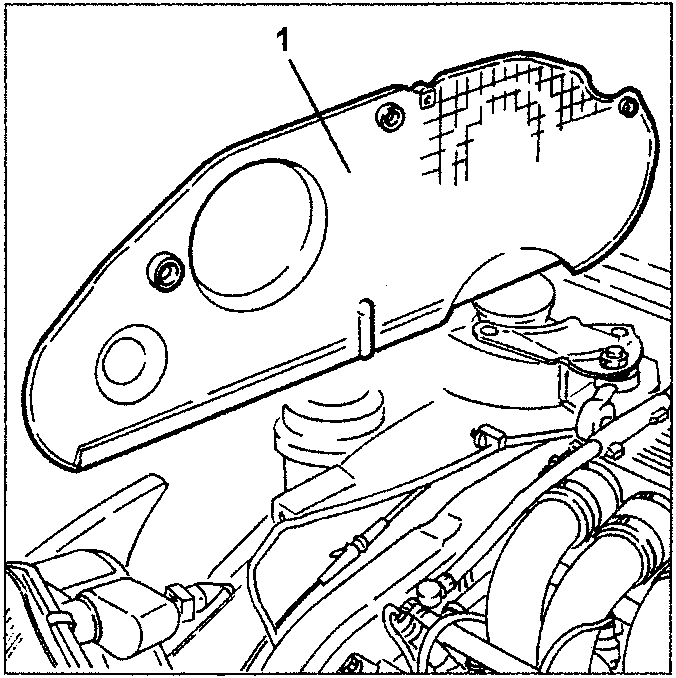

1. Loosen the fastening screws and remove the upper timing belt guard.

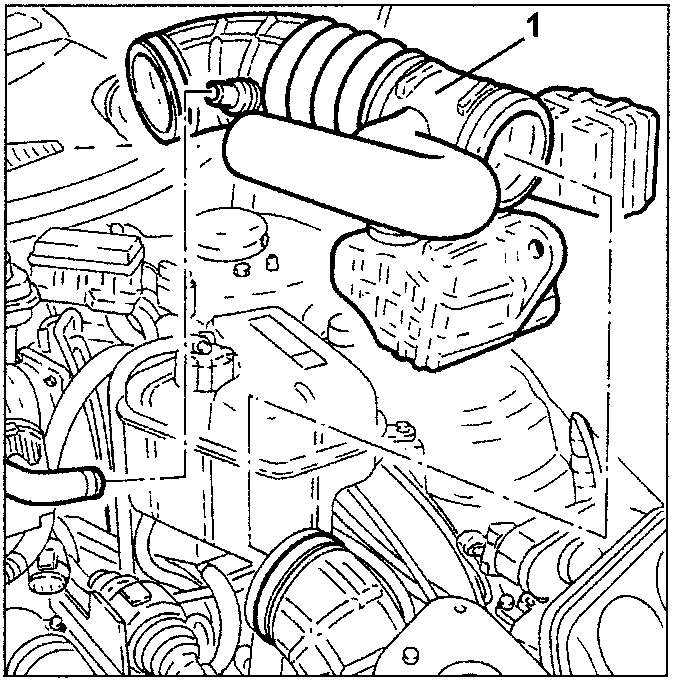

1. Loosen the clips and remove the corrugated sleeve with resonators after releasing the intermediate resonator from the fastening pin.

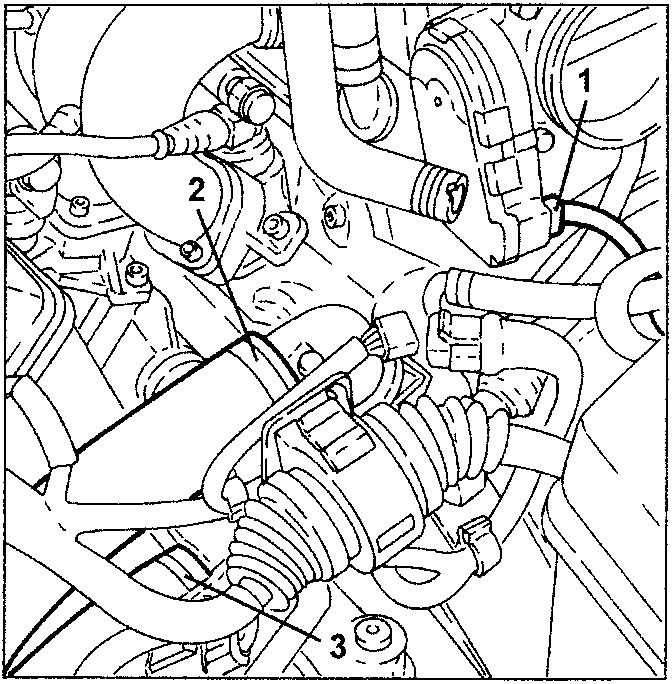

1. Disconnect the electrical connection from the throttle casing with built-in DVL.
2. Disconnect the radiator coolant delivery sleeve from the thermostat.
3. Disconnect the radiator coolant return sleeve from the thermostat.
