Cylinder head (page 5 of 11)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Operations in vehicle

Variants – 3.0 V6 24VCylinder head · page 5 of 11

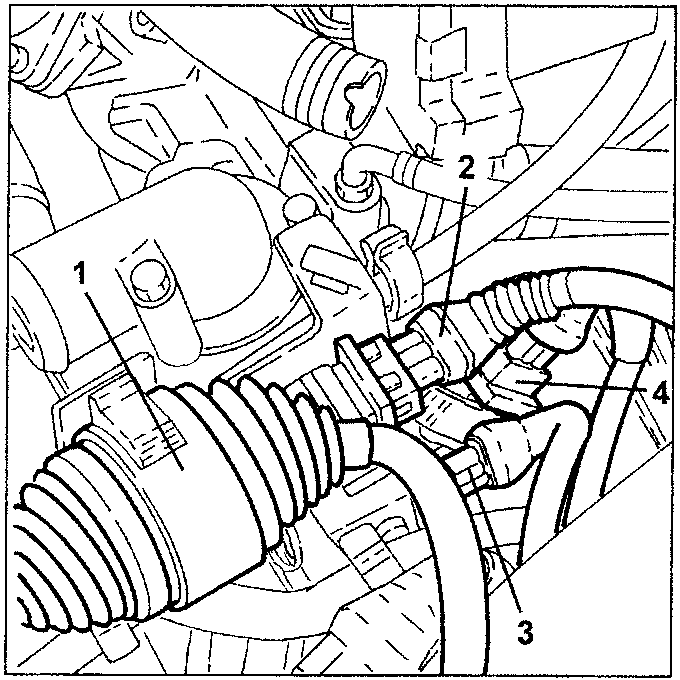

1. Disconnect the injection wiring joint from the bracket.
2. Disconnect the rpm and phase sensor electrical connection.
3. Disconnect the rear knock sensor electrical connection.
4. Disconnect the cam angle sensor electrical connection.

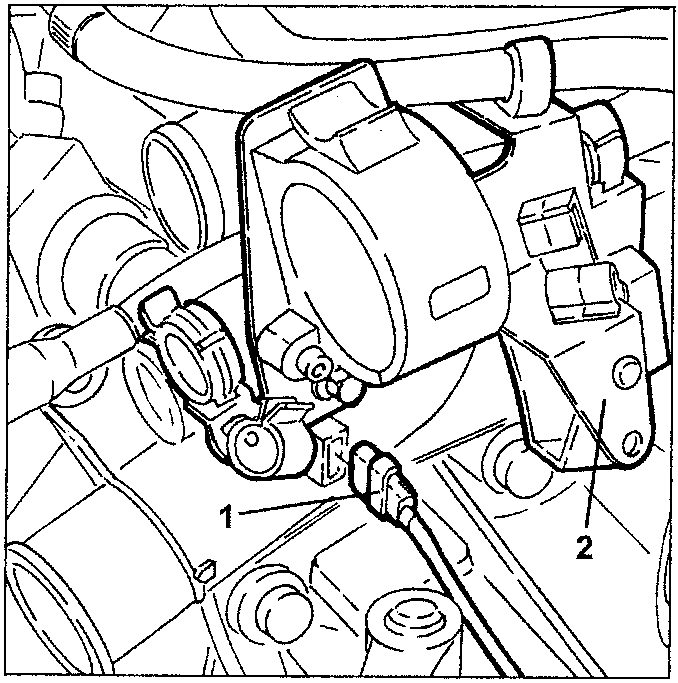

1. Disconnect the engine coolant temperature sensor electrical connection.
2. Loosen the fastening screws and remove the electrical connection bracket and pipes.

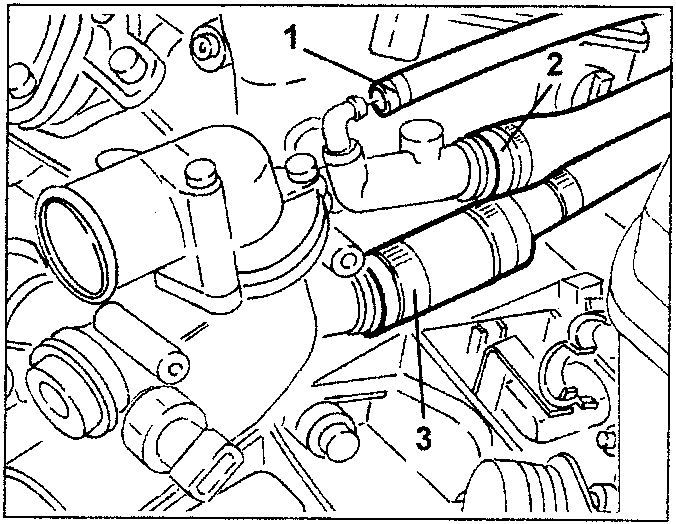

1. Disconnect the coolant return pipe to the expansion reservoir from the right-hand cylinder head.
2. Disconnect the coolant delivery pipe to the climate control system from the right-hand cylinder head fitting.
3. Disconnect the climate control system coolant return sleeve from the thermostat.

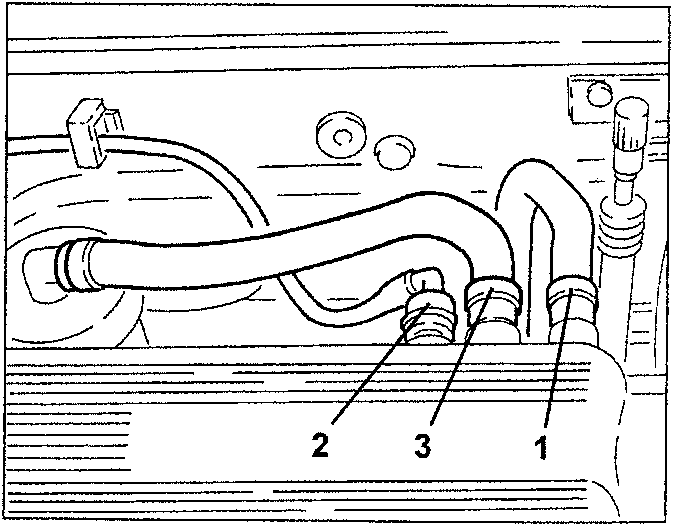

1. Disconnect the brake booster vacuum pipe from the intake manifold.
2. Disconnect the fuel vapour pipe quick coupling fitting from the intake manifold.
3. Disconnect the oil vapour recirculation pipe from the intake manifold.
