Variants – 3.0 V6 24VCylinder head · page 8 of 11
  1. Loosen the fastening screws and remove the thermostat.

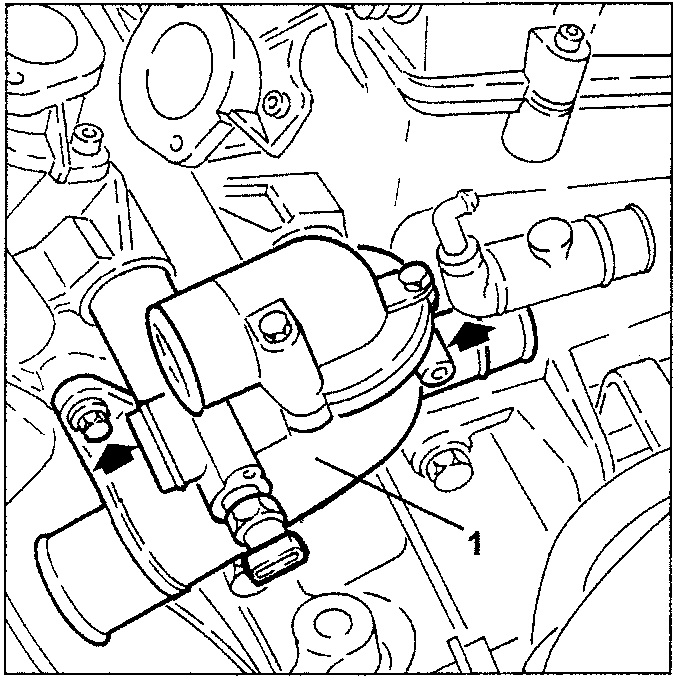

Thermostat removal with arrows pointing to screws
  1. Loosen and remove the right-hand cylinder head coolant outlet fitting.

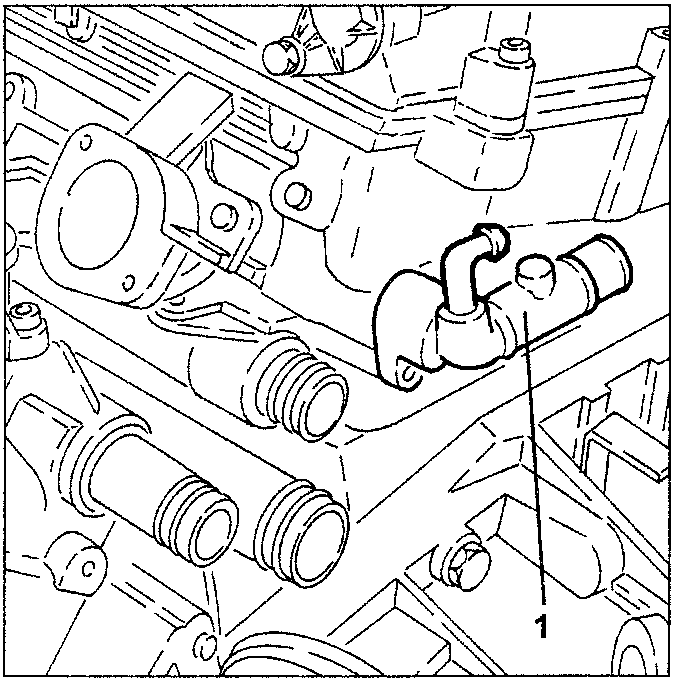

Right-hand cylinder head coolant outlet fitting
  1. Disconnect the electrical connections from the right-hand side cylinder head ignition coils and move the respective wiring aside.

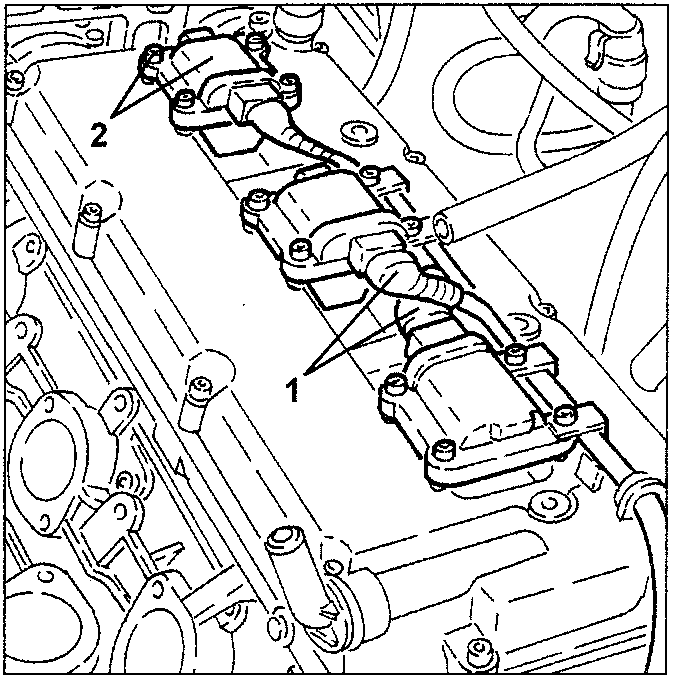

Right-hand cylinder head ignition coils with numbered parts
  1. Loosen the fastening screws and remove the right-hand cylinder head ignition coils.
  • Release the engine cooling fan wiring from the fasteners on the front crossmember.
  1. Loosen the fastening screws and remove the upper radiator crossmember.
  2. Loosen the fastening screws and remove the left-hand cylinder head ignition coils.

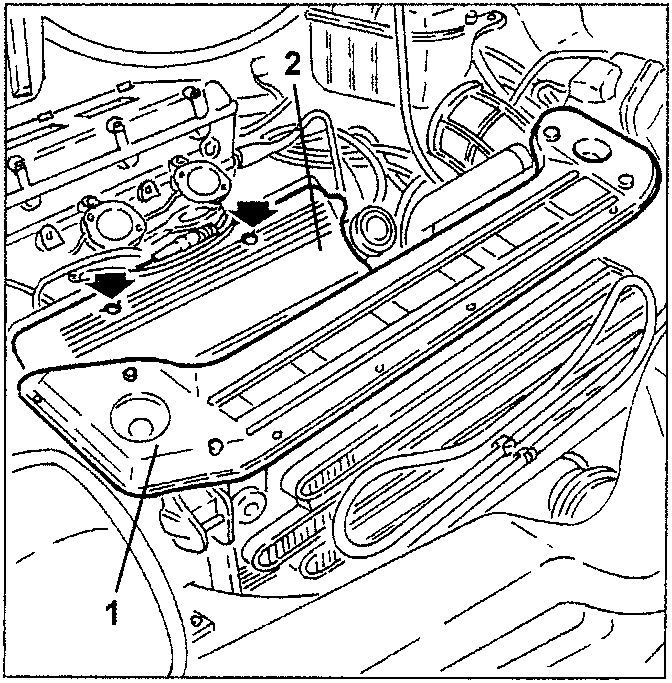

Engine cooling fan wiring and left-hand cylinder head ignition coils
