Cylinder head (page 6 of 11)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Operations in vehicle

Variants – 3.0 V6 24VCylinder head · page 6 of 11

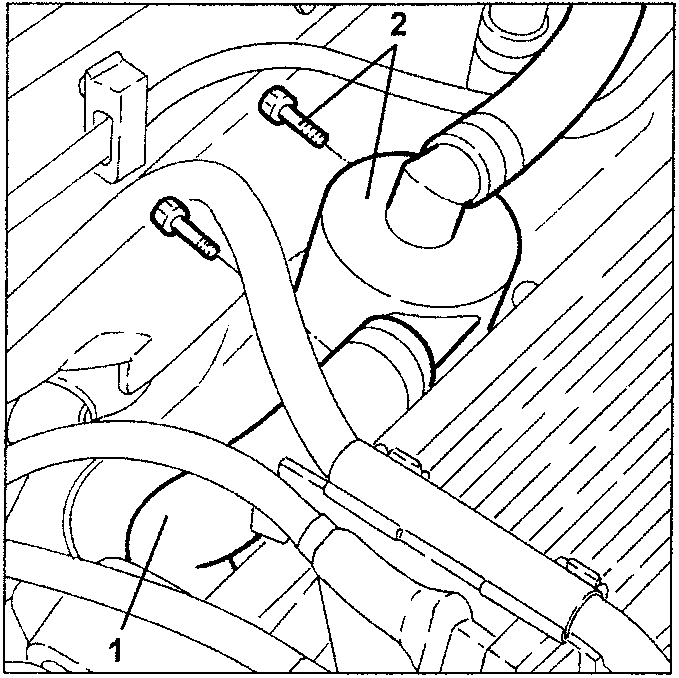

1. Disconnect the oil vapour recovery pipe from the right-hand cylinder head tappet cover.
2. Loosen the fastening screws and move the oil vapour separator from the intake manifold.

1. Oil vapour recovery pipe
2. Fastening screw

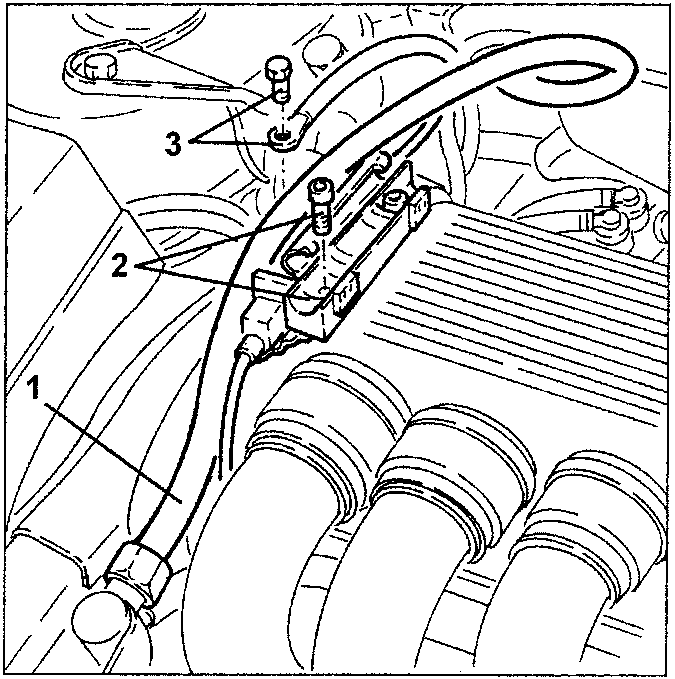

1. Release the fuel delivery pipe from the bracket.
2. Loosen the screws and remove the fuel delivery pipe bracket.
3. Disconnect the engine tie-rod earth wire.

1. Fuel delivery pipe
2. Bracket
3. Screw

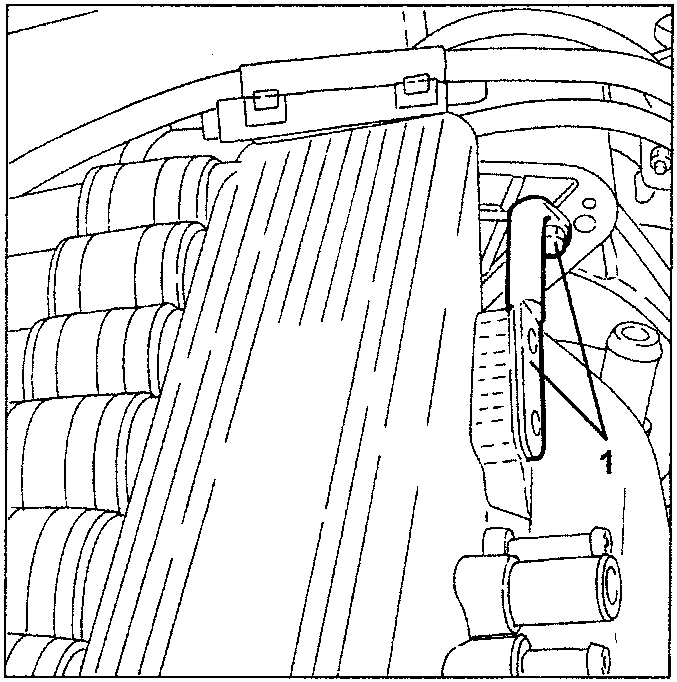

1. Loosen the screw and remove the intake manifold connection to engine tie-rod bracket.

1. Screw

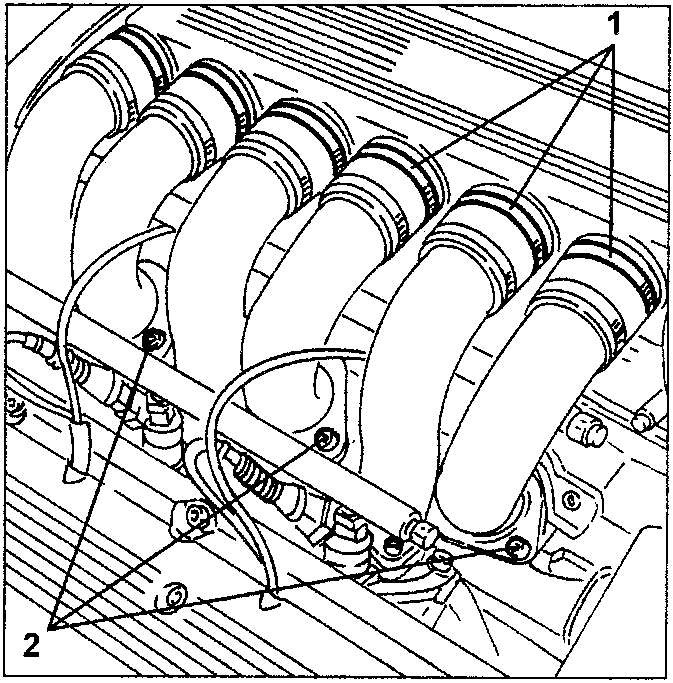

1. Loosen the intake manifold duct clips.
2. Loosen the air intake duct fastening screws on the cylinder head.

1. Intake manifold duct clip
2. Air intake duct fastening screw
