OIL PUMP

REMOVAL/REFITTING

  • Position the vehicle on a shop jack.
  • Make sure the ignition key is at "STOP" and disconnect the (-) battery terminal.

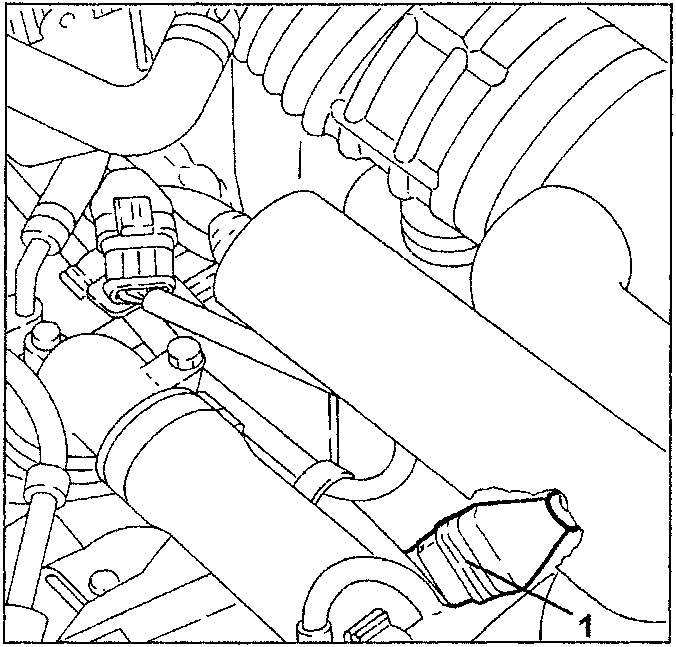

  1. Disconnect the lambda sensor electrical connection from the left-hand exhaust manifold and release the respective wiring from the fastening clips.
Engine diagram showing lambda sensor disconnection
  • Remove the front right-hand wheel and the respective dust guard.
  • Drain engine oil (see assembly 00).

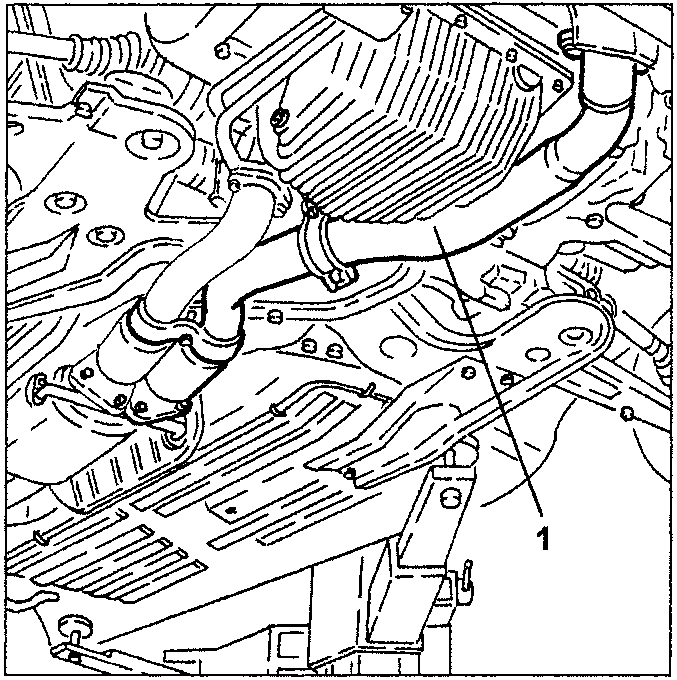

  1. Loosen the fasteners and remove the front left-hand exhaust pipe section and lambda sensor.
Engine diagram showing removal of exhaust pipe section

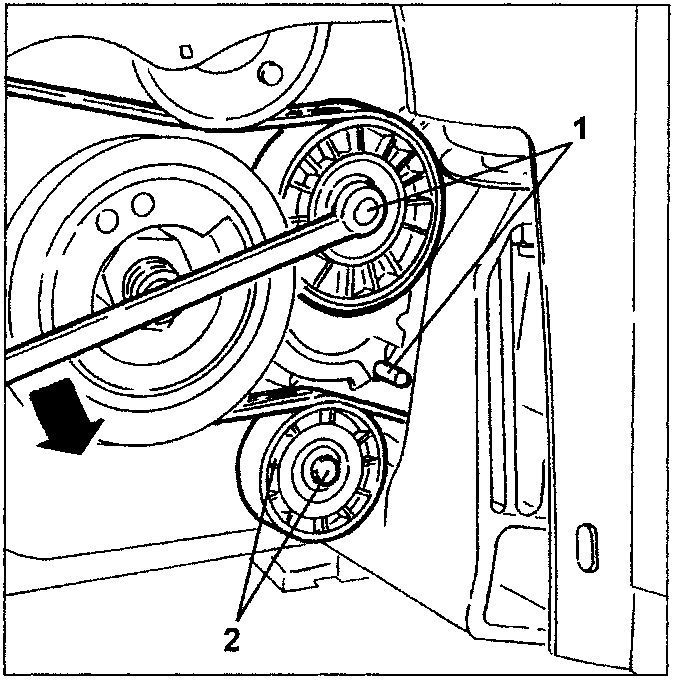

  1. With a wrench on the belt take-up pulley fastening screw, overcome the automatic take-up force and lock it in this position (belt loose) with a pin as shown in the figure.
  2. Loosen the fastening screw and remove the lower engine drive belt runner.
Engine diagram showing belt take-up pulley and belt runner

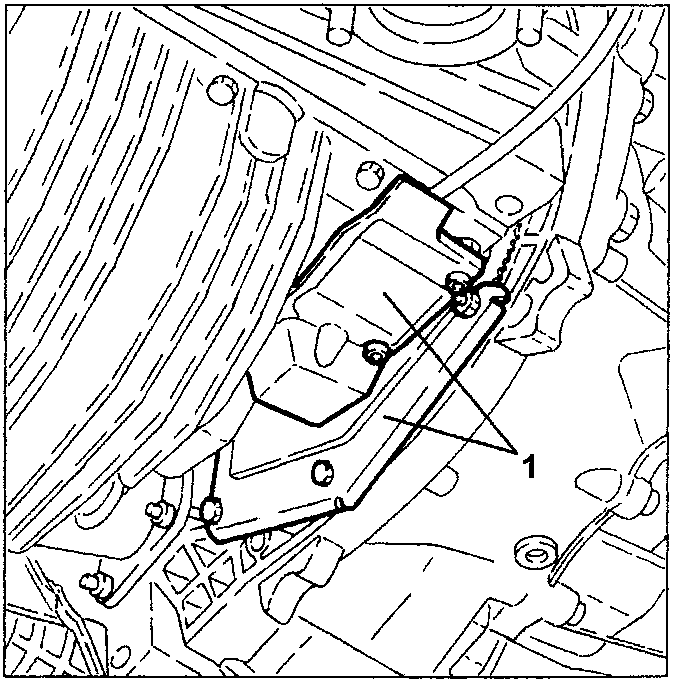

  1. Loosen the fasteners and remove the lower flywheel and rpm and phase sensor guards.
Engine diagram showing removal of flywheel and sensor guards
