Oil pump (page 2 of 3)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Operations in vehicle

Variants – 3.0 V6 24VOil pump · page 2 of 3

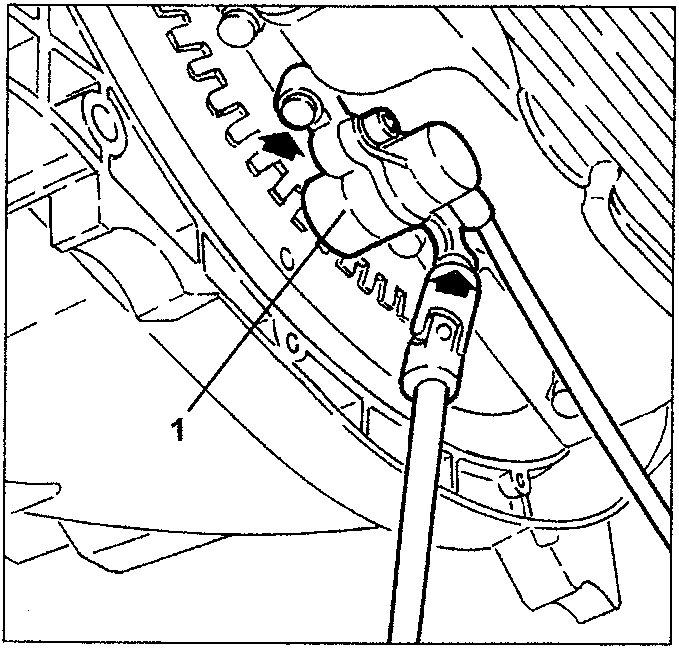

1. Loosen the fastening screws and move the rpm and phase sensor aside.

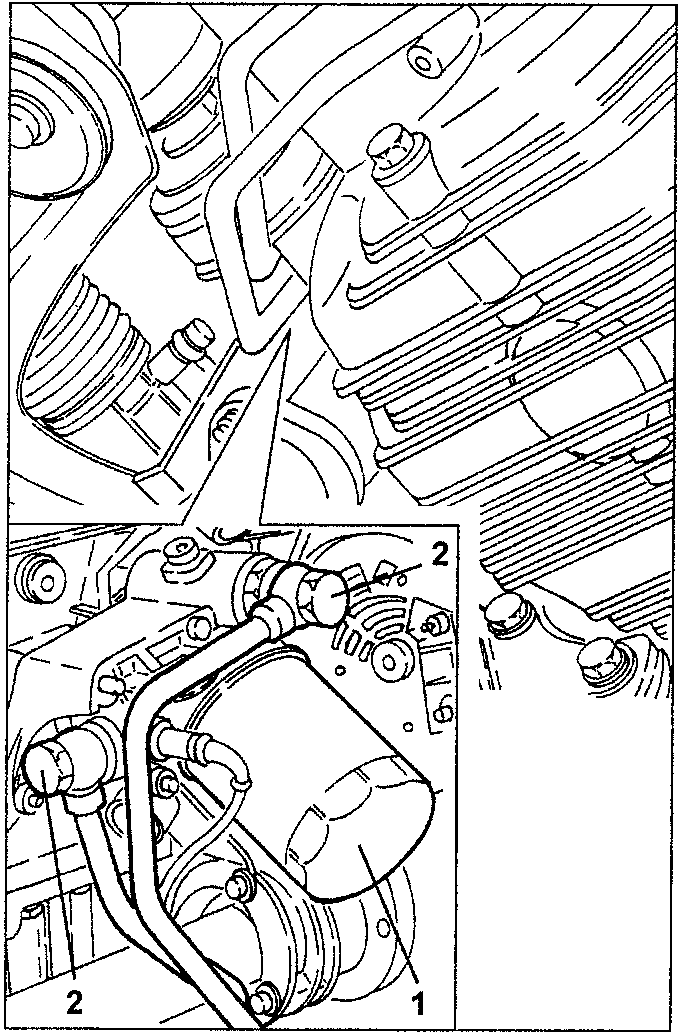

1. Remove the engine oil filter with a suitable wrench.
2. Loosen the fittings and disconnect the coolant radiator delivery and return pipes from the oil filter bracket.

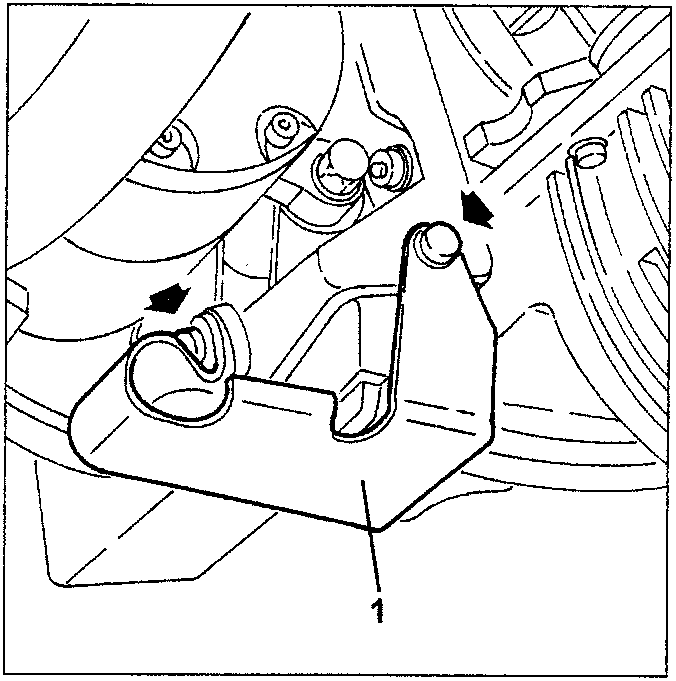

1. Loosen the fastening screws and remove the coolant radiator engine oil delivery and return pipe bracket.

• Move the coolant radiator engine oil delivery and return pipes aside provisionally as not to interfere with the following operations.

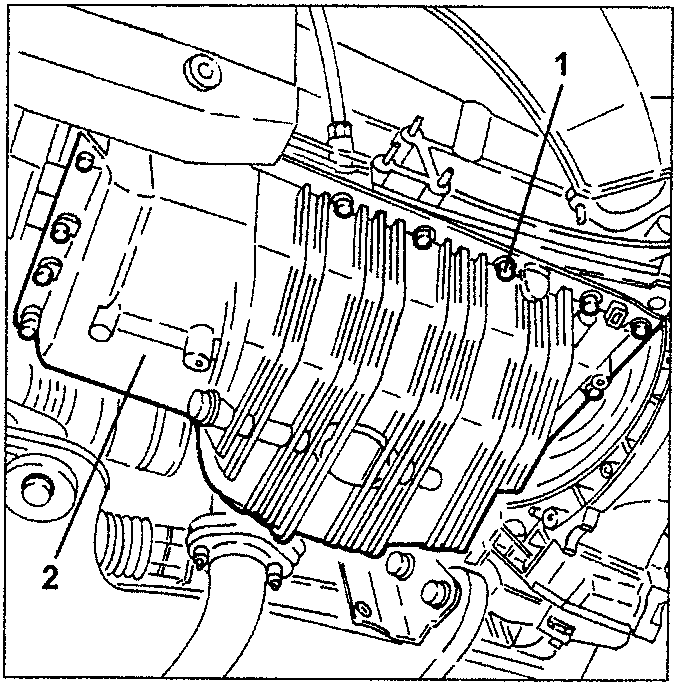

1. Loosen the screws fastening the sump to the crankcase.

• Heat the crankcase sump coupling area and cut the sealant.

2. Remove the sump from the crankcase.
