Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)12 · Variants – 3.0 V6 24V
12 · General

Oil pump (page 3 of 3)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Operations in vehicle
Variants – 3.0 V6 24VOil pump · page 3 of 3

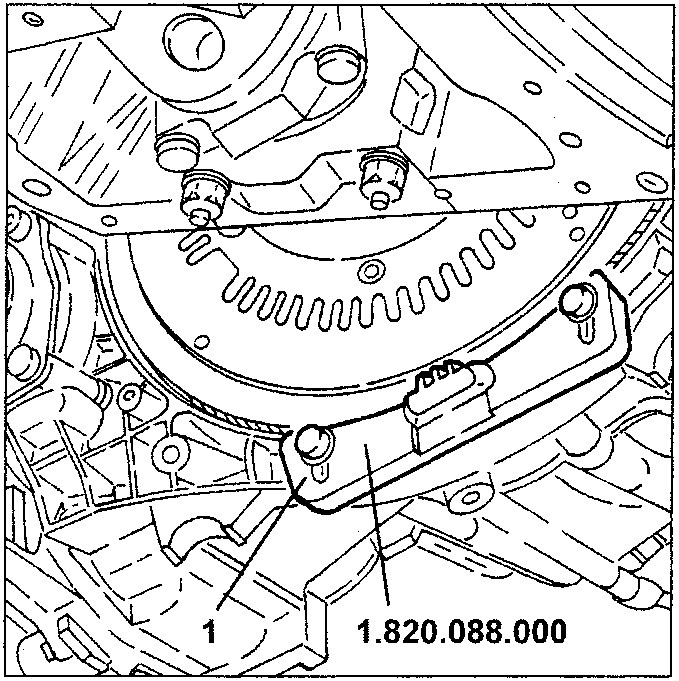

  1. Fit flywheel retainer tool no. 1.820.088.000.
Flywheel retainer tool 1.820.088.000 fitted to engine

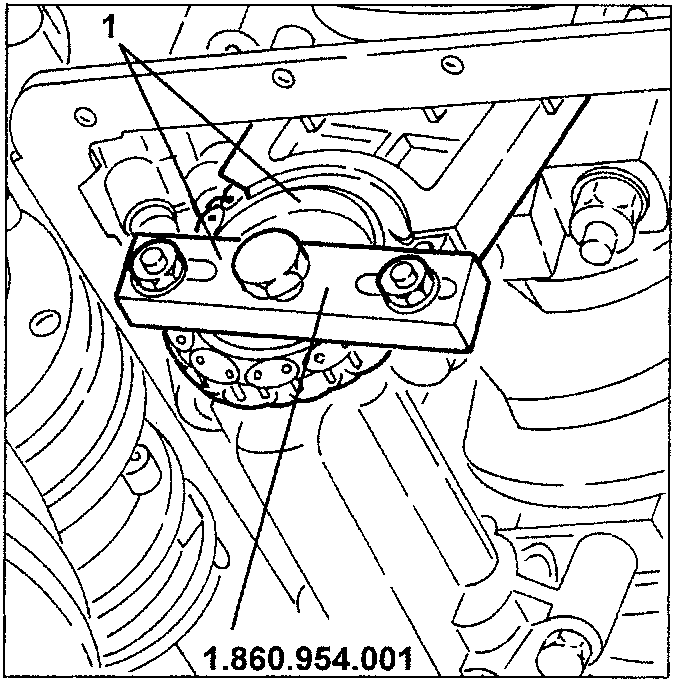

  1. Use tool no. 1.860.954.001 to remove the drive gear from the oil pump shaft.
Tool 1.860.954.001 removing drive gear from oil pump shaft

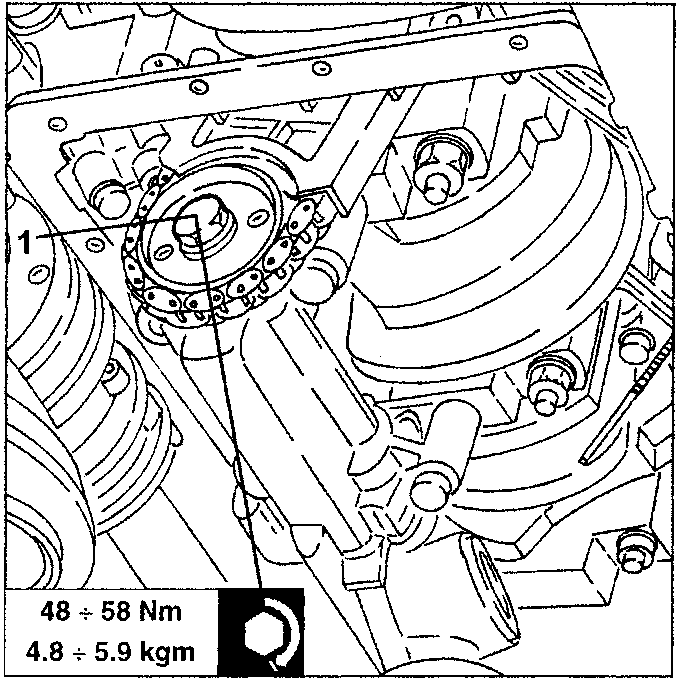

  1. Loosen the oil pump drive gear fastening screw.
Oil pump drive gear fastening screw being loosened

48 ÷ 58 Nm
4.8 ÷ 5.9 kgm

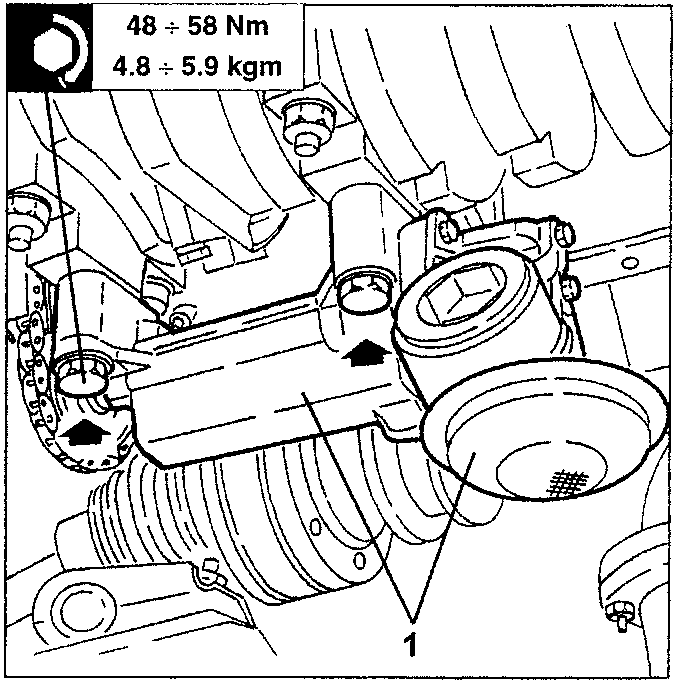

  1. Loosen the fastening screws and remove the complete oil pump.
Complete oil pump being removed

48 ÷ 58 Nm
4.8 ÷ 5.9 kgm
