Cylinder head (page 10 of 11)

• Loosen the exhaust manifold fastening nuts from the right-hand cylinder head and leave it on the power steering unit.

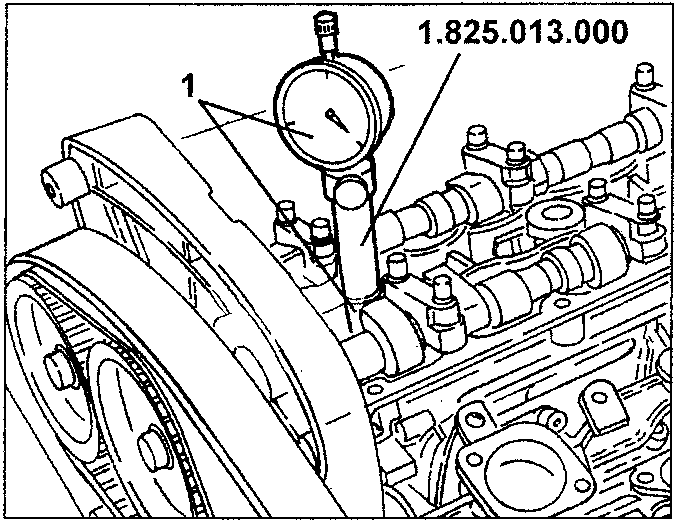

1. Fit tool no. 1.825.013.000 in cylinder 1 spark plug seat.

• Move the auxiliary unit drive pulley nut and slightly turn the crankshaft in both directions to take cylinder 1 piston to TDC, firing stroke.

NOTE: Make sure the last rotation of the crankshaft is in the direction of operation.

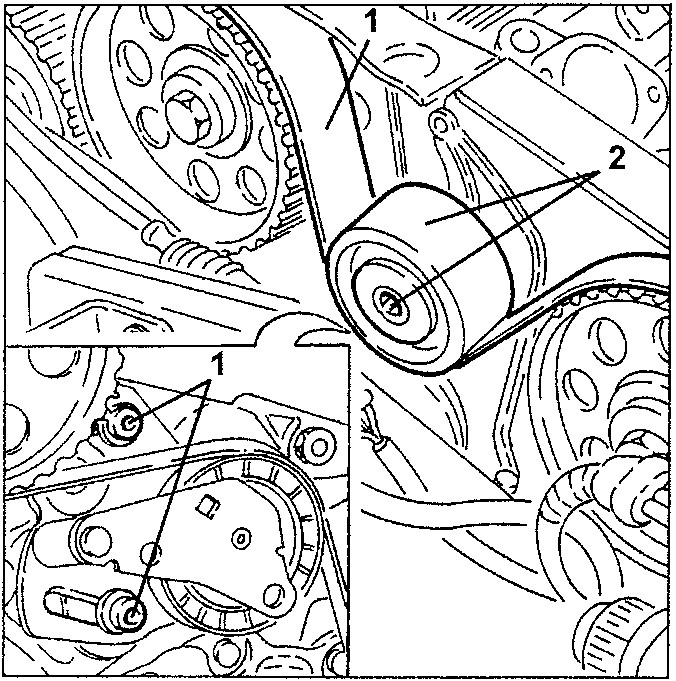

1. Loosen the two timing belt take-up fastening screws and remove the belt from the camshaft pulleys.
2. Loosen the fastening screw and remove the timing belt runner.

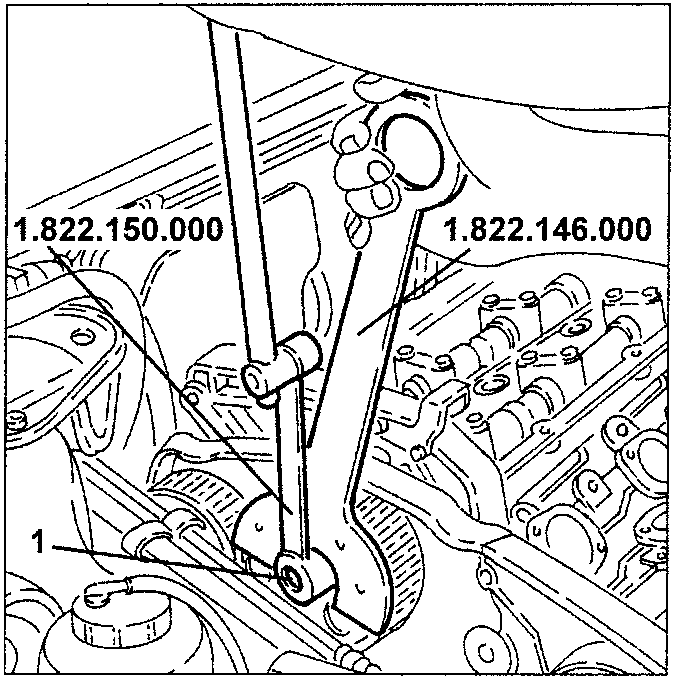

1. Use extension no. 1.822.150.000 and tools no. 1.822.146.000 to contrast torque. Loosen the camshaft drive pulley fastening screws from the right-hand cylinder head.

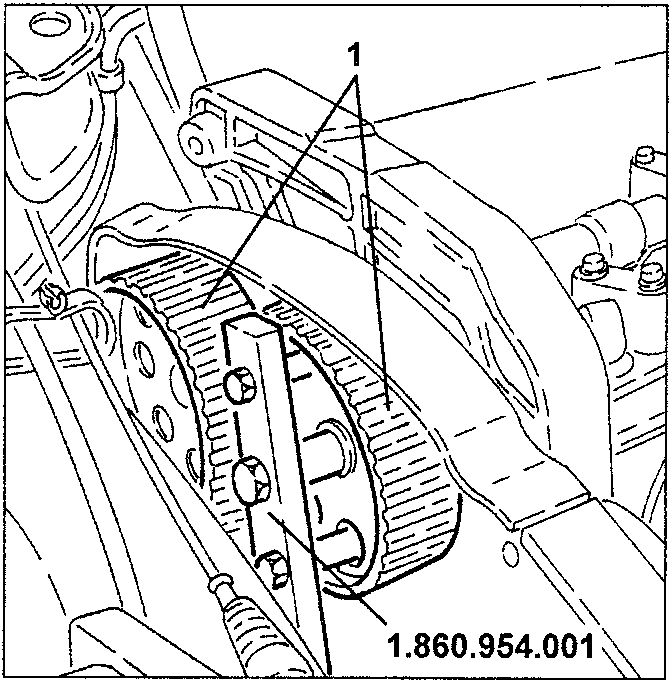

1. Use tool no. 1.860.954.001 and remove the camshaft drive pulleys from the right-hand cylinder head.
