Refitting

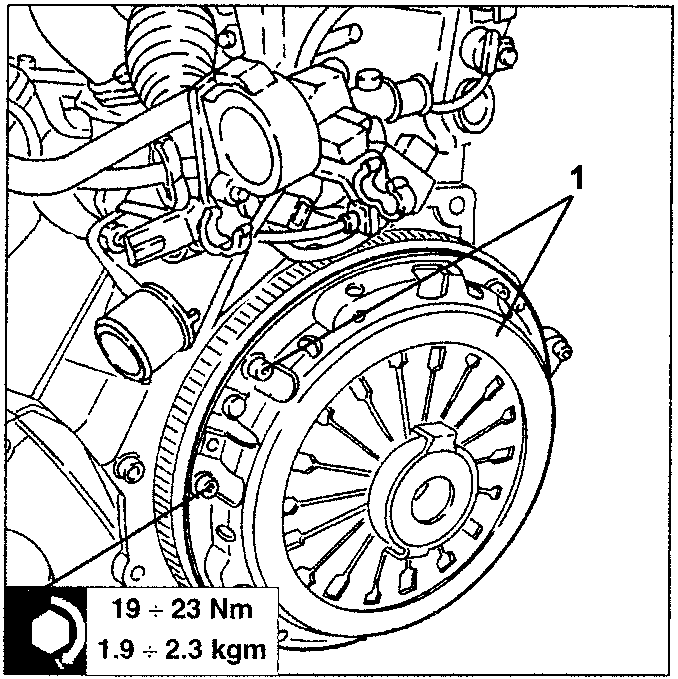

1. Loosen the fastening screws and remove the thrust plate with thrust bearing and clutch plate.

19 ÷ 23 Nm
1.9 ÷ 2.3 kgm

REFITTING

Reverse the removal sequence and observe the following warnings:

• Prepare the engine compartment to insert the engine assembly by positioning all the electrical wires, pipes, etc. so that they do not interfere with the refitting operations.
• Be careful not to damage the single components when refitting the engine.

IMPORTANT: Make sure the engine assembly mounts are correctly fastened.

• After refitting, top the various systems up as required (see Assembly 00).
• Perform all the checks and interventions required (see Assembly 00).

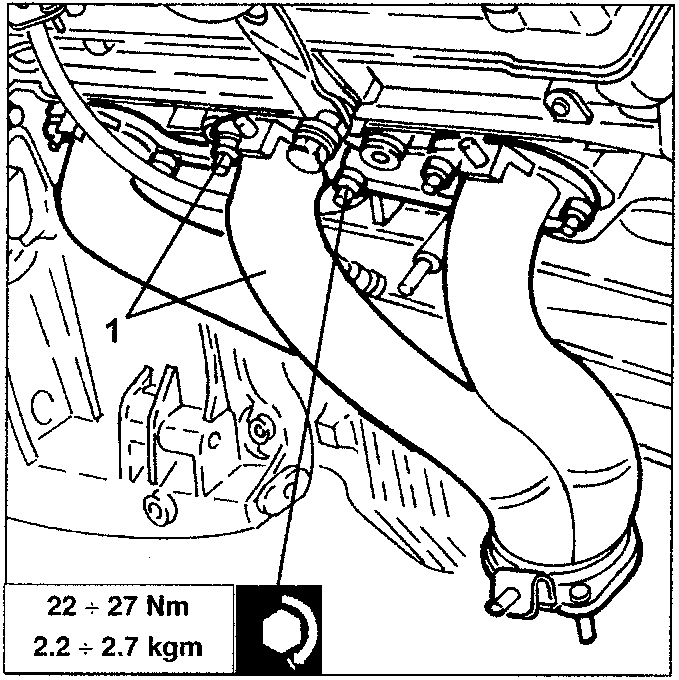

1. Loosen the fastening nuts and remove the exhaust manifold, left-hand side.

• Remove the respective seals.

22 ÷ 27 Nm
2.2 ÷ 2.7 kgm
