Description

DESCRIPTION

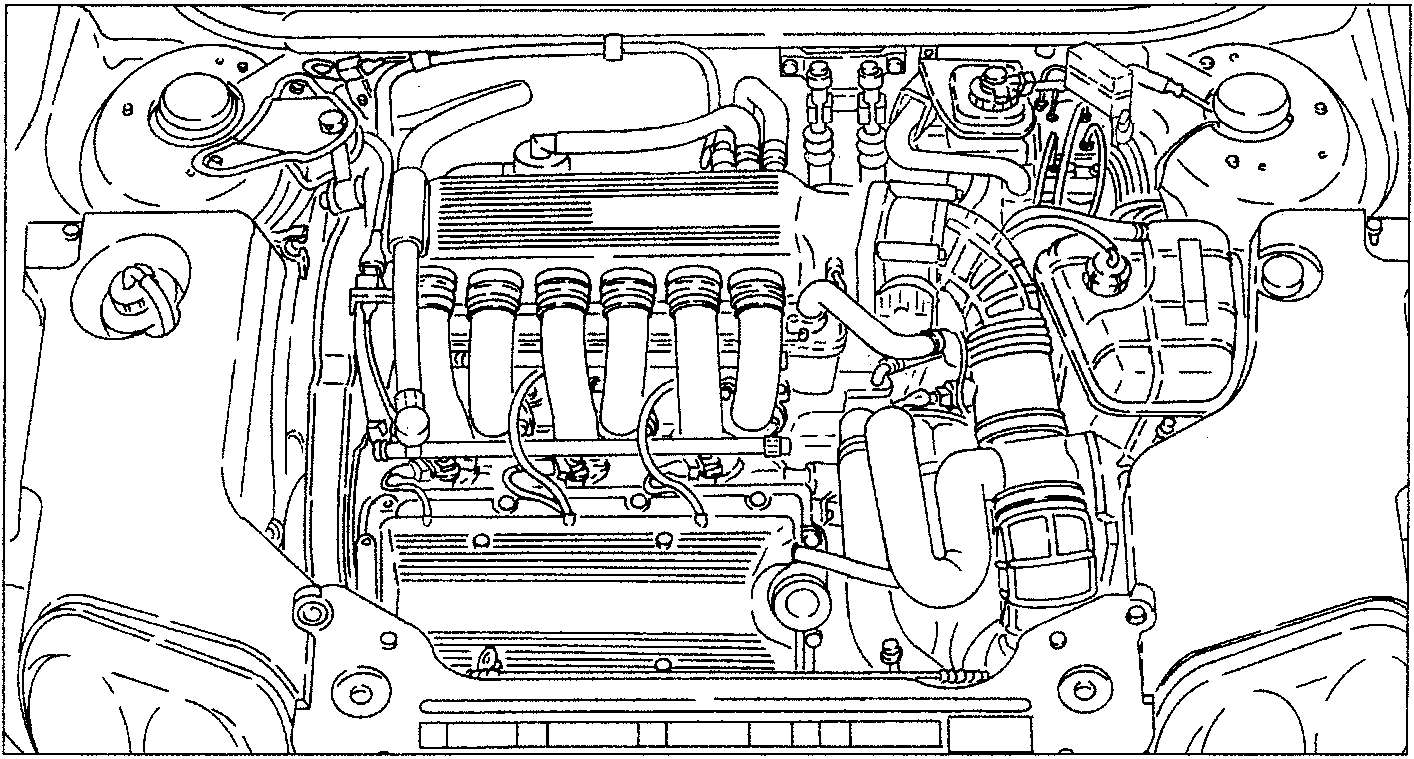

The following information and illustrations allow quick engine removal and refitting.

Bench disassembly instructions for single components are contained in the "ENGINE OVERHAUL" volume.

The following procedures may be used only in part, according to requirements.

For additional information and details, refer to the specific component and assembly chapters.

REMOVAL

• Position the vehicle on a shop jack.
• Make sure the ignition key is at "STOP" and disconnect the (-) battery terminal.
• Remove the front wheels.

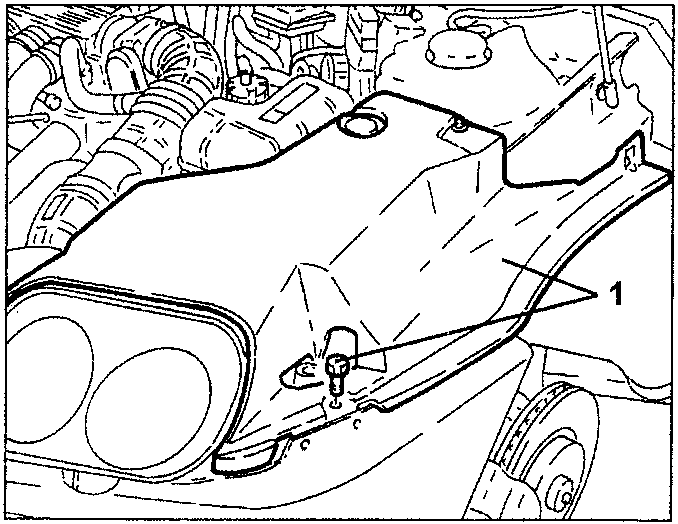

1. Loosen the screws and remove the two side engine guards.

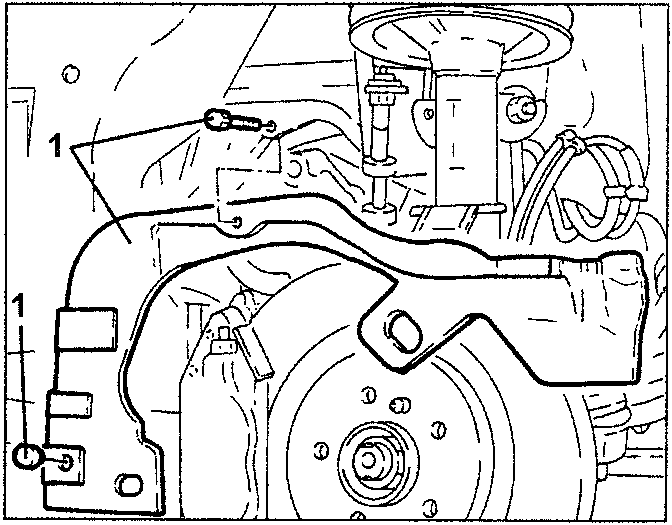

1. Release the buttons, loosen the screws and remove the front wheel compartment dust guards.
